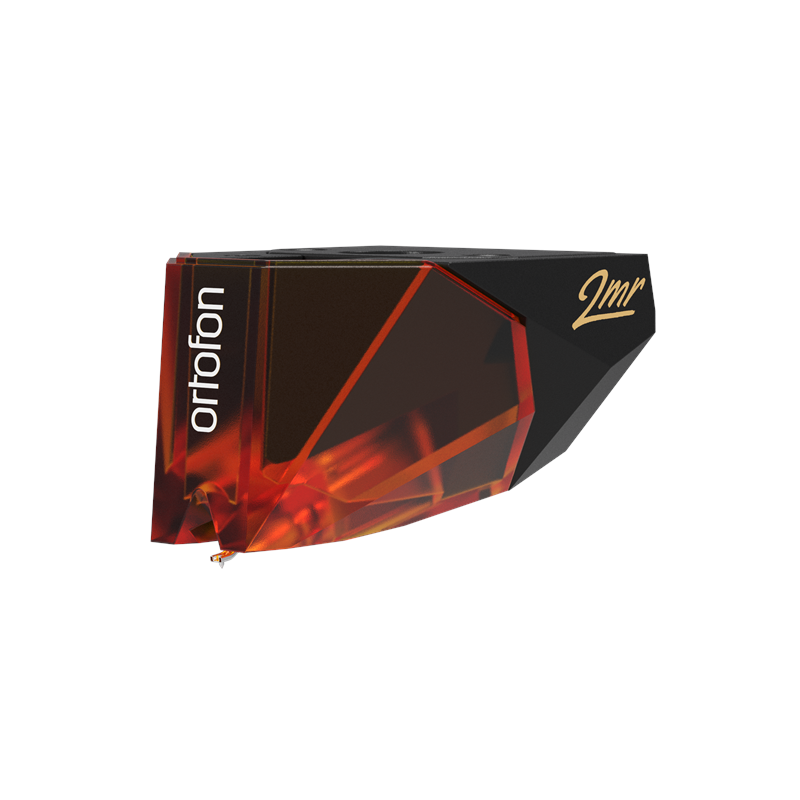

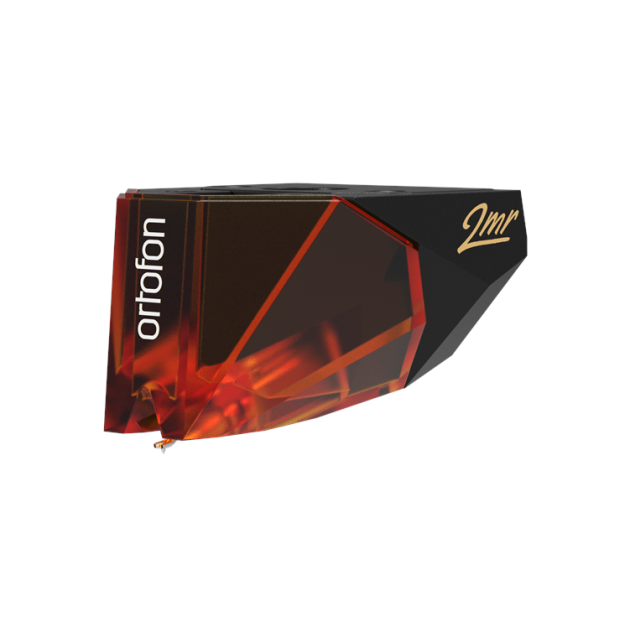

Cellule MM Ortofon 2MR Bronze

Cellule MM Ortofon 2MR Bronze +

MM cartridge

Nude fine line stylus

Specific version for low VTA

Rega compatibility

Made in Denmark

Know more

Manufacturer : ORTOFON

389,00 €

In stock
Shipped within 3 to 5 working days Available within 1 or 2 weeks

+ -

MPLSEOR205

+ Wishlists

Need help ?

  • An attentive team

  • Quality products

  • Secure and fast shipping

  • No overcharged 3x payment from 1000€

Description

Datasheet

Our expert's words

This cartridge has exactly the same characteristics as the famous Ortofon 2M Bronze. The only difference is the height of the cartridge, which has been reduced to adapt to turntables with a low VTA and no adjustable arm height, such as Rega turntables. Thanks to this model, the turntable can do without a spacer under the arm.

This cartridge can accommodate a 2M Bronze or 2M Black stylus.

Franck

Type: MM

Output voltage: 5. mV

Channel separation at 1kHz: 22dB

Frequency response at -3dB: 20 Hz/31 KHz

Compliance: 22 µm/N

Diamond: Nude fine line

Tracking force: 1.4g-1.7g

Optimum tracking force: 1.5g

Rake angle: 20°

Internal impedance: 1.2 kΩ

Internal inductance: 630 mH

Load resistance: 47 kΩ

Load capacitance: 150-300 pF

Weight: 6 g

Replacement stylus: 2M Bronze or 2M Black stylus
