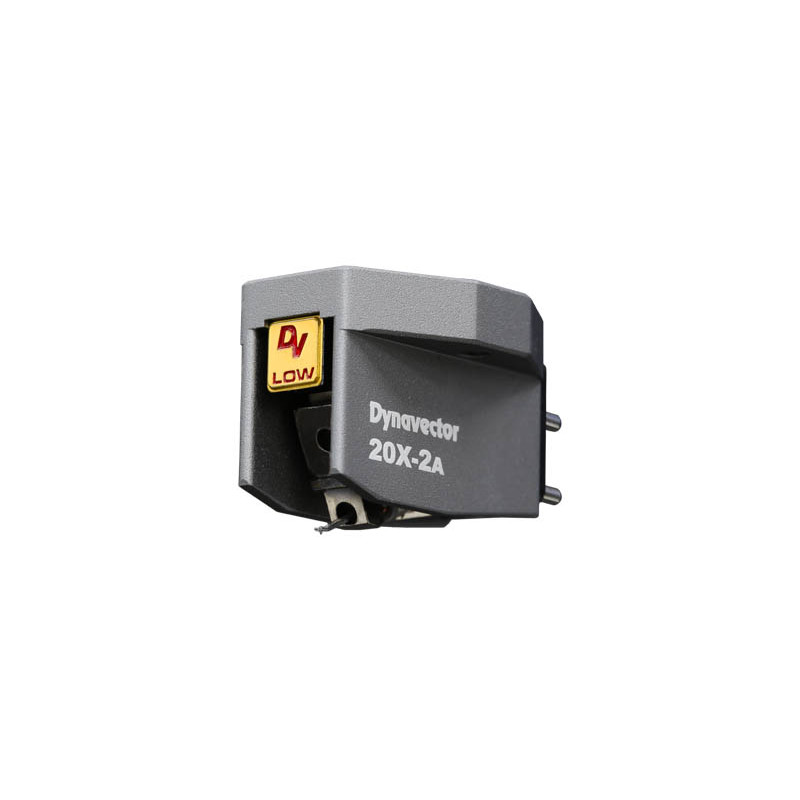

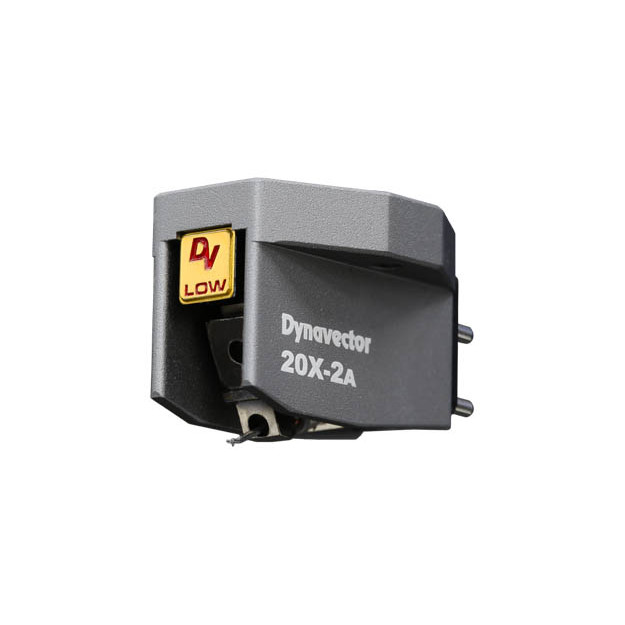

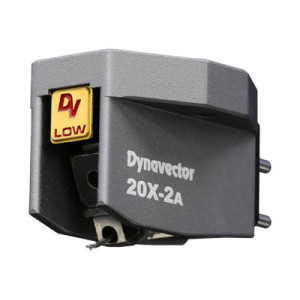

Cellule MC Dynavector DV 20X-2A L

After almost 10 years of success, the Dynavector DV 20X2 L has undergone a number of technical changes and become the DV 20X2A-L. This entry-level model (for Dynavector) is also available in a high-level MC version under the reference DV 20X- 2 AH.

Dynavector DV 20X-2A L: Body

This new version uses the same basic structure as the top-of-the-range Dynavector XX-2A and Dynavector Te Kaitora Rua models.

It has a hardened aluminium alloy body. This has been specially optimised to provide perfect rigidity and low resonance. It is finished in a dark grey structured non-magnetic paint.

The chassis is fitted with threaded inserts for hexagonal mounting screws. Connection is via traditional silver-plated pins.

Dynavector DV 20X 2A L: Generator

The magnetic circuit, which is the ‘motor’ of an MC cartridge, uses pure iron, which has stable magnetic properties with very low distortion. What's more, by specially annealing this part of the generator, Dynavector has managed to achieve distortion-free reproduction and very high resolution.

This is combined with patented softened magnets, developed to reduce the distortion and high-frequency aggression caused by standard magnets. These neodymium magnets nevertheless ensure high efficiency, preserving dynamics and transparency.

This low-level model has an output voltage of 0.3 mV. It uses the same PCOCC wires for its coils as the Japanese manufacturer's top-of-the-range models.

The recommended minimum load impedance is between 30Ω and 120 Ω, making this DV20X2A-L compatible with most MC phono preamplifiers and MC step-up transformers.

Dynavector DV 20X-2A L: Diamond and cantilever

The Dynavector 20X-2AL is equipped with a hollow hardened aluminium cantilever.

This reduces the mass of the moving part while retaining excellent rigidity, giving a wide bandwidth and precise high frequencies.

The cantilever is fitted with a diamond-cut Micro-Ridge profile. Although the part that comes into contact with the groove of the disc has a radius of curvature of just 2 microns, the complex Micro Ridge shape of the tip makes it resistant to abrasion and enables it to deliver unaltered performance over a long period.

The Dynavector 20X-2AL offers a compliance of 12mm/N and a mass of 9.2g, making it compatible with most light and medium-weight tone arms (between 8 and 19g).

Dynavector DV 20X-2A L: Testing and listening

The bass lines have weight and plenty of articulation. The bass falls very low without ever losing its legibility.

The midrange is open and detailed, with plenty of expression and nuance. This is very demonstrative on a piano or a string quartet.

The dynamics and sense of rhythm are remarkable, and you'll find yourself tapping your foot to the rhythm of the piece you're listening to with the Dynavector 20X-2AL.

This cartridge offers a musical balance and coherence that seems superior to that of its competitors.

To be recommended +++

AWARD :

The EAR ‘Editor's Choice
