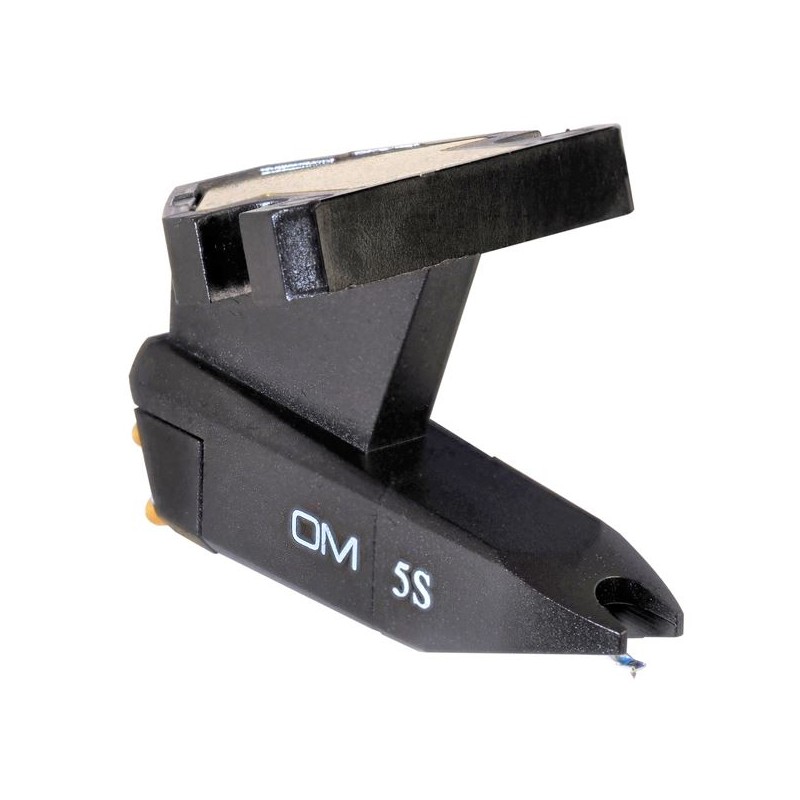

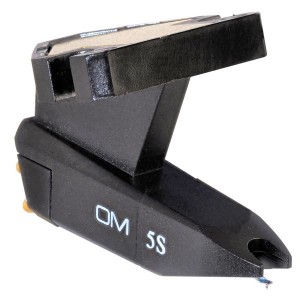

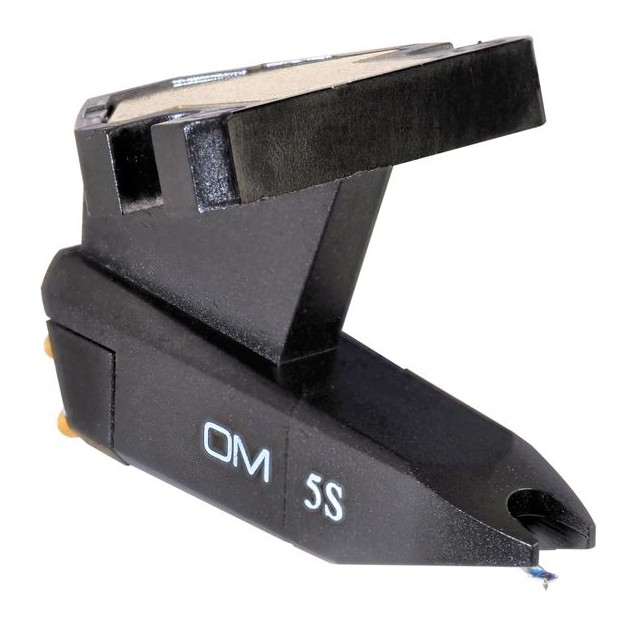

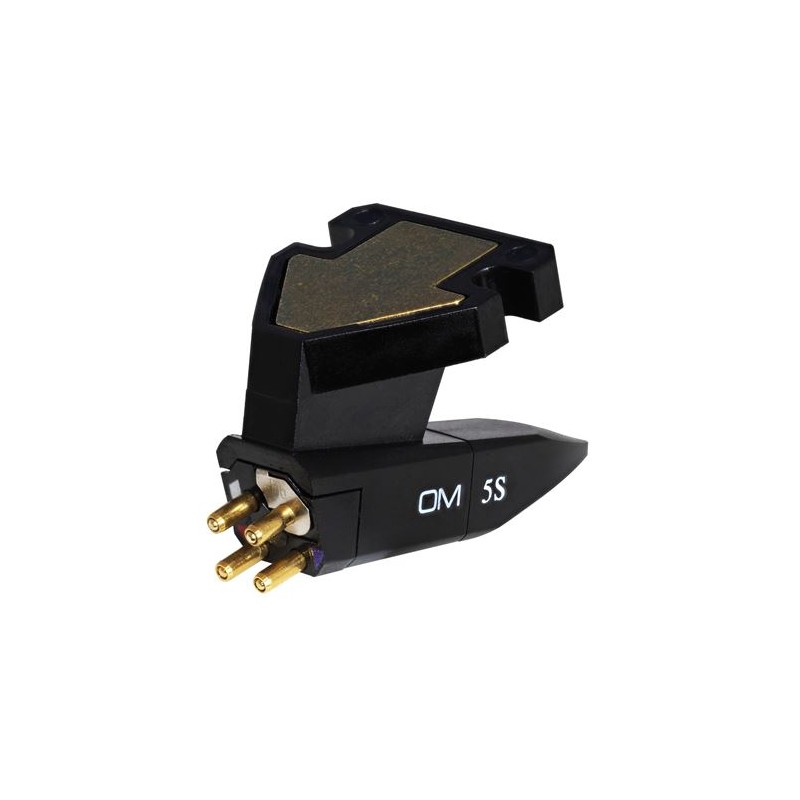

This Ortofon OM 5S MM cartridge is a variant of the OM 5E, the bestseller of the Danish manufacturer Ortofon! This one is certainly the world's leading audiophile cartridge in this range.
Despite its affordable price, the OM 5S is equipped with an excellent spherical stylus.
Its weight, output level and compliance allow it to adapt to most turntables and entry or mid-range tonearms.
This Ortofon OM 5S MM cartridge is perfect as an affordable replacement for old and poor-quality phono cartridge using sapphire. By the way, it is fitted as standard on many turntables from famous manufacturers such as Rega, Thorens, Pro-Ject...

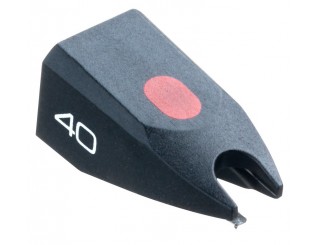

In the future, it can be upgraded with the Ortofon 5E or Ortofon 10 stylus. It can also accept Ortofon 20, 30, 40 and 78 stylus.
FranckType: MM
Output level: 4.5 mV
Channel separation at 1kz: 20dB
Bandwidth à -3 dB: 20 Hz - 20 kHz
Compliance: 20 Um/Nm
Stylus: spherical
Tracking force: 1.5g - 2.0g
Best tracking force: 1.75 g
Tracking angle: 20°
Internal impedance: 750 ohms
Internal inductance: 450 mhz
Load resistance: 47 kHz
Load capacity: 200-500 pF
Weight: 5 g
Replacement stylus: 5S, 5E, 10, 78 stylus
