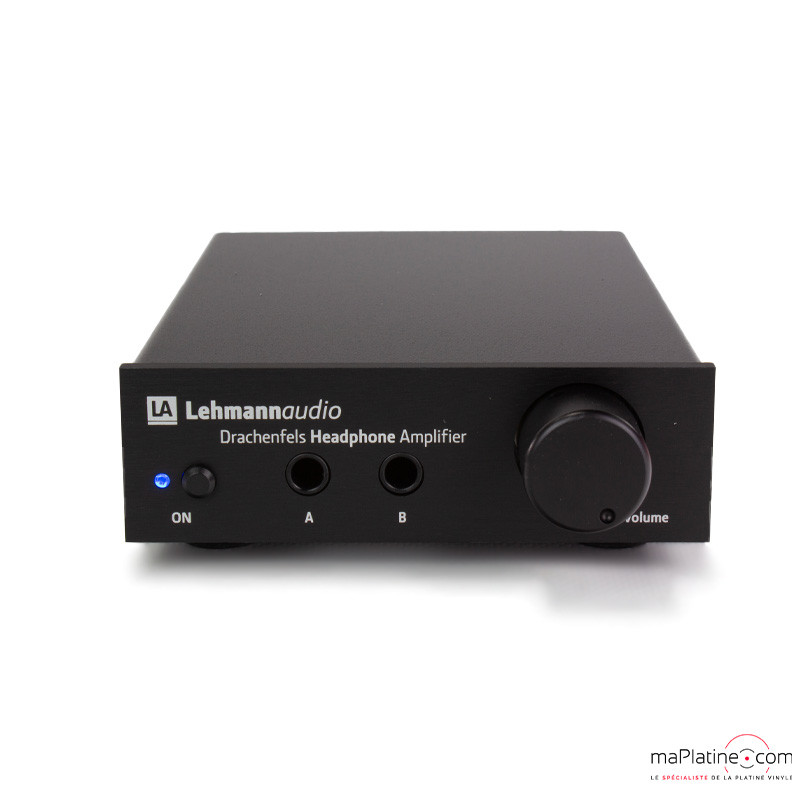

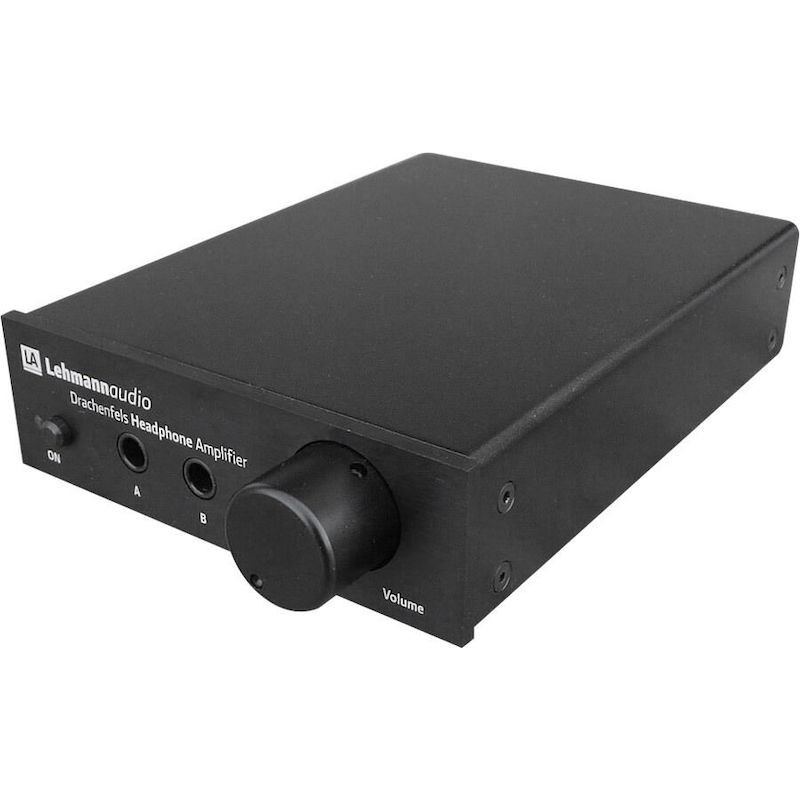

This superb little Lehmann Audio Drachenfels box is the replacement for the famous Lehmann Audio Rhinelander. It has been completely redesigned and is inspired by the circuit of the Lehmann Audio Linear II headphone amplifier, which remains the most used headphone amp by professionals worldwide.
LEHMANN AUDIO DRACHENFELS: COMPONENTS
Its modular design with high-end components opens up long-term prospects in terms of quality and durability. Indeed, thanks to the modular printed circuit boards that will be offered, the Drachenfels will allow for evolution with the arrival of new digital standards: a simple module and rear panel exchange will enable an upgrade!
As with all Lehmann Audio products, the Drachenfels features top-tier components: MKT capacitors, military-grade resistors, and gold-plated connectors. The volume potentiometer used is an ALPS Blue, well-known among audiophiles.
The board and all the components are housed in a non-magnetic metal case.
LEHMANN AUDIO DRACHENFELS: FEATURES

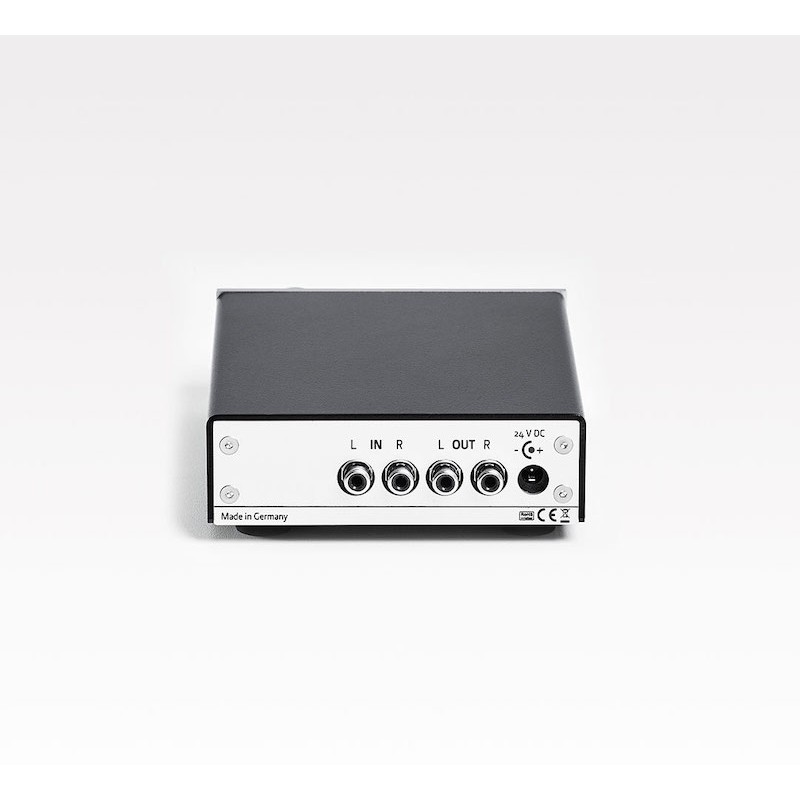

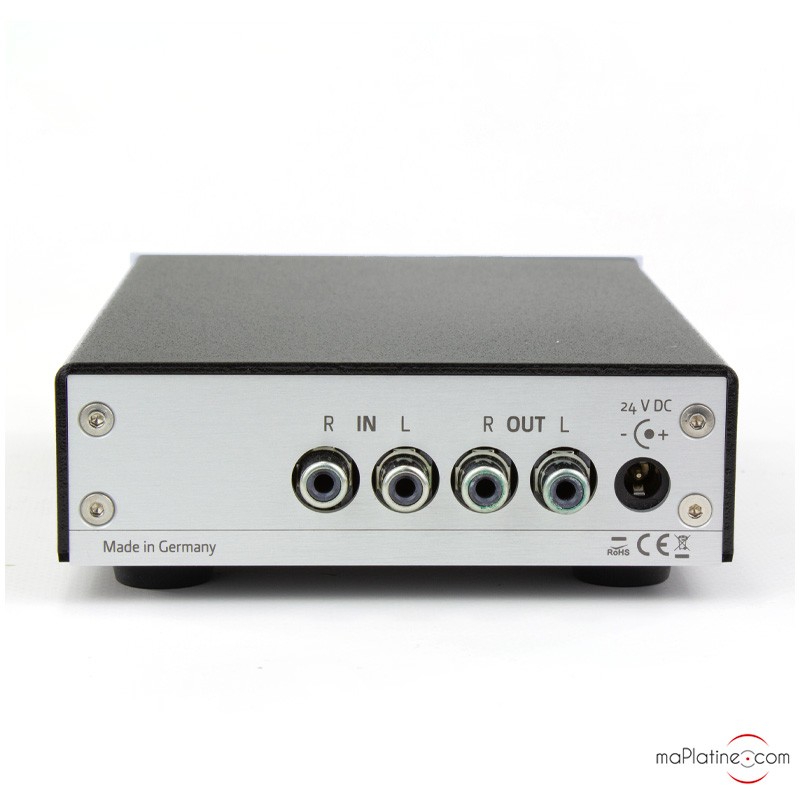

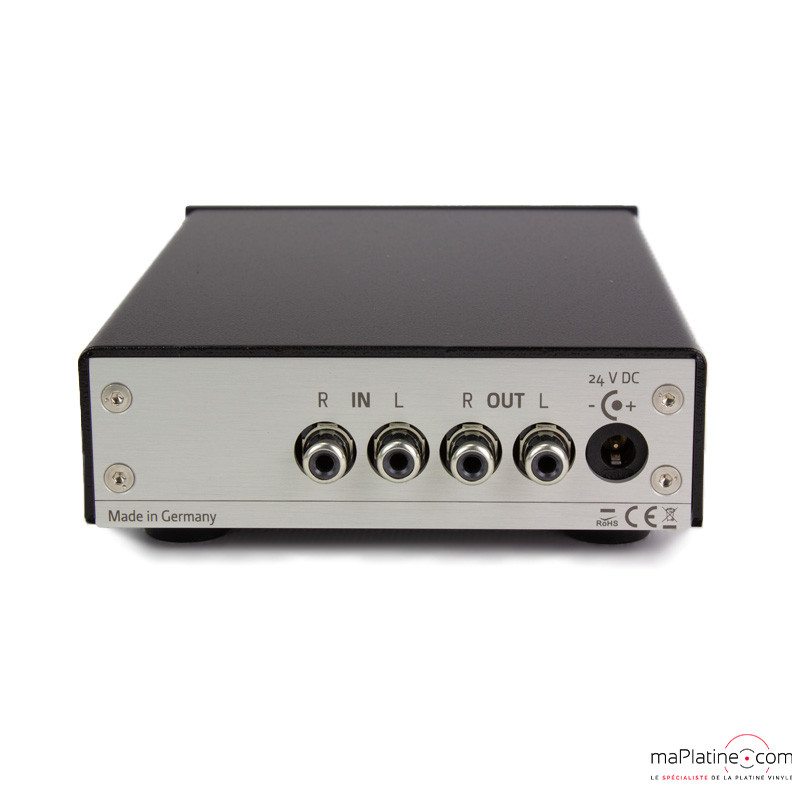

The Drachenfels is equipped with two pairs of RCA connectors on its back. One for the analog input and one output.
It is possible to use the Drachenfels as a preamplifier.
The Drachenfels offers a gain of 12dB which is sufficient and perfectly compatible with 90% of audio headphones. It can drive headphones with an impedance of 15 Ohms at a level of half a watt!

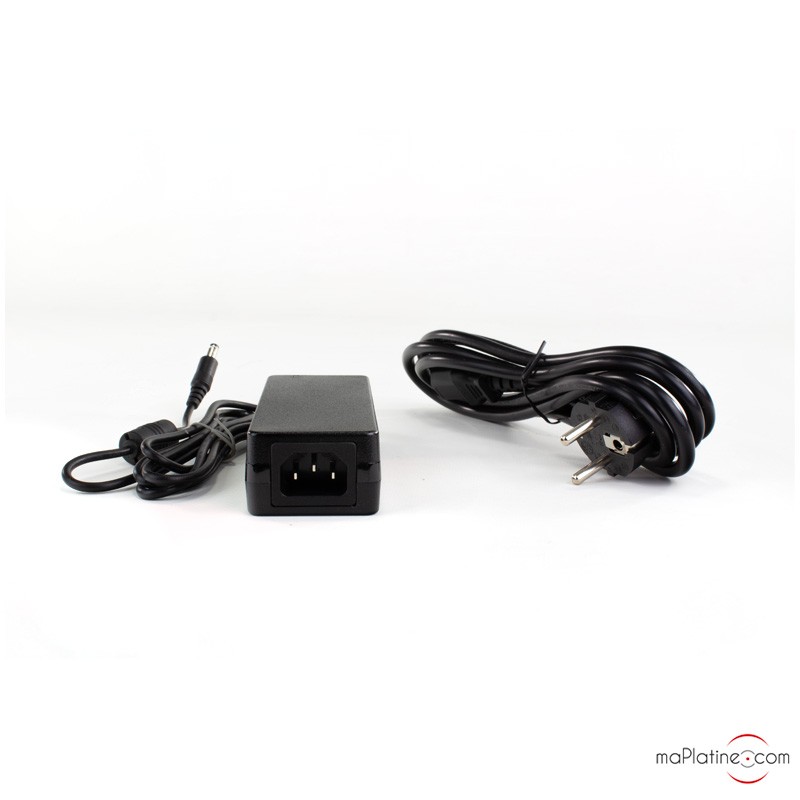

The power supply is provided by a simple small wall box that does its job perfectly.
LEHMANN AUDIO DRACHENFELS: TEST AND LISTENING
This Lehmann Audio Drachenfels headphone amplifier is a marvel in terms of definition and transparency. It surpasses its predecessor in terms of neutrality and dynamics. The bass is deep and very articulated, the soundstage is surprising in its clarity, and the vocals leave you speechless!
At this price, we do not know of an equivalent product in terms of musicality and fidelity of reproduction. It illustrates the gap between an excellent headphone amp and a headphone output on a mainstream device!
The Lehmann Audio Drachenfels headphone amplifier is a remarkable product, especially at the price it is offered! It can be considered a true audiophile product and can be paired without shame with the best headphones on the market, worth two or three times its price.
Our favorite!
AWARDS:
HI-FI WORLD “Highly Recommended”
STEREO “Excellent”
FranckInput impedance: 47 KoHms
Gain: 12 dB
Frequency response: 10Hz to 35Khz
Signal-to-noise ratio : > 85 at 0dB gain
Distortion: 0.006% at 16mW/330 Ohms
Output level: 110 mV at 330 Ohms / 180 mV at 33 Ohms
Headphone output impedance: 5 Ohms
Line output impedance: 105 Ohms
Connections: 2 x 6.35mm Neutrik jack and gold RCA
Dimensions: 160x120x43m
Weight: 0.5 kg

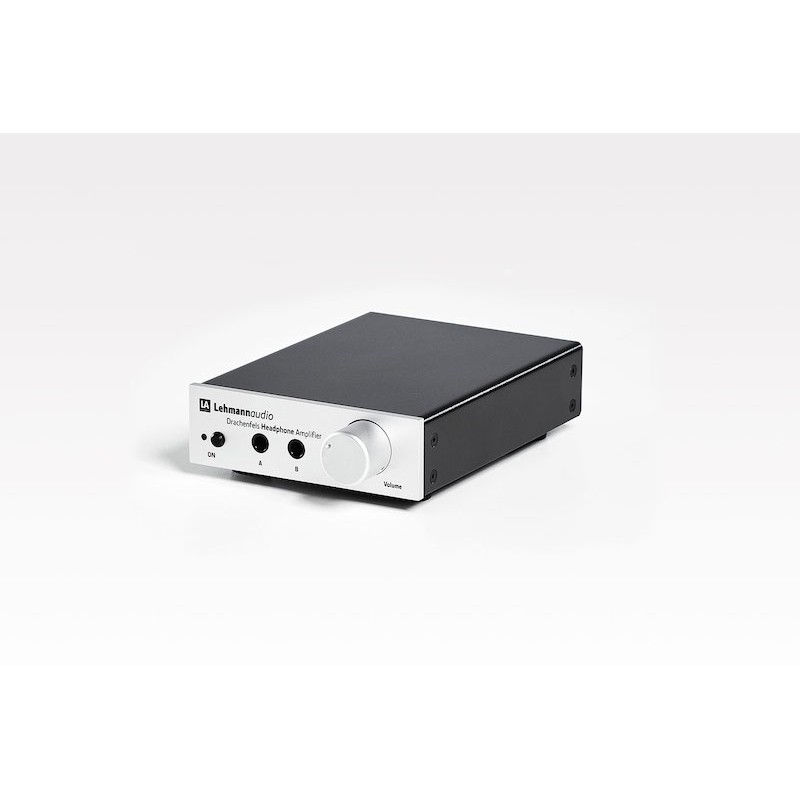

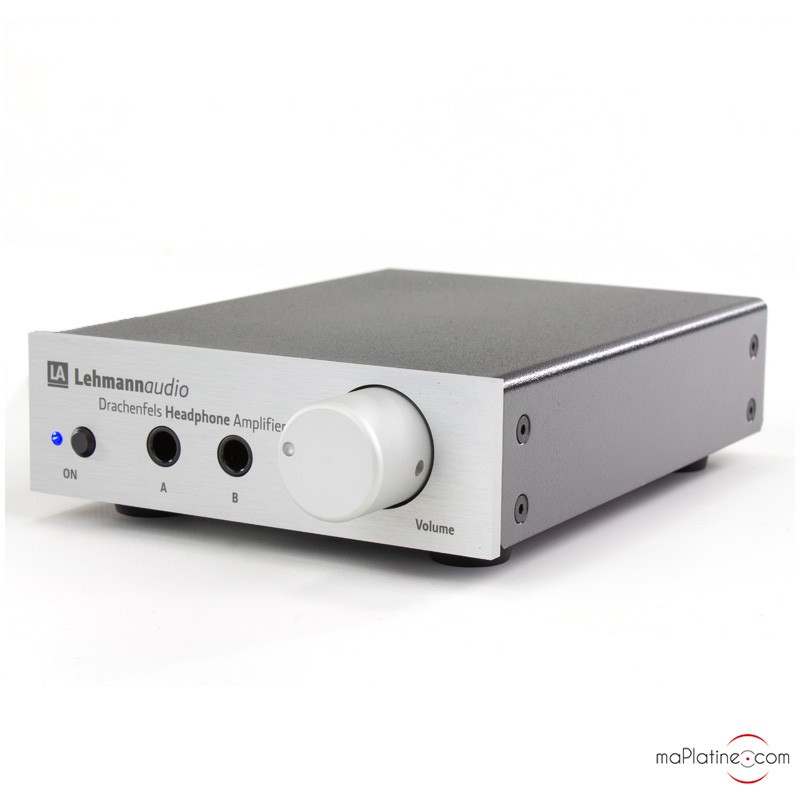

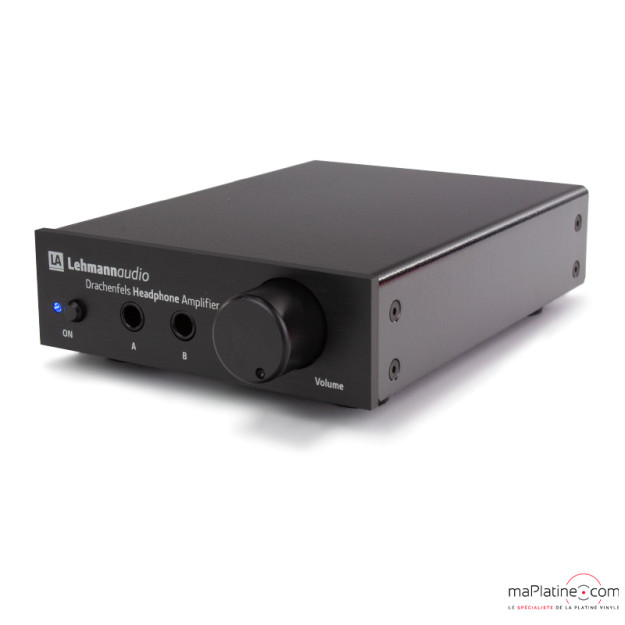

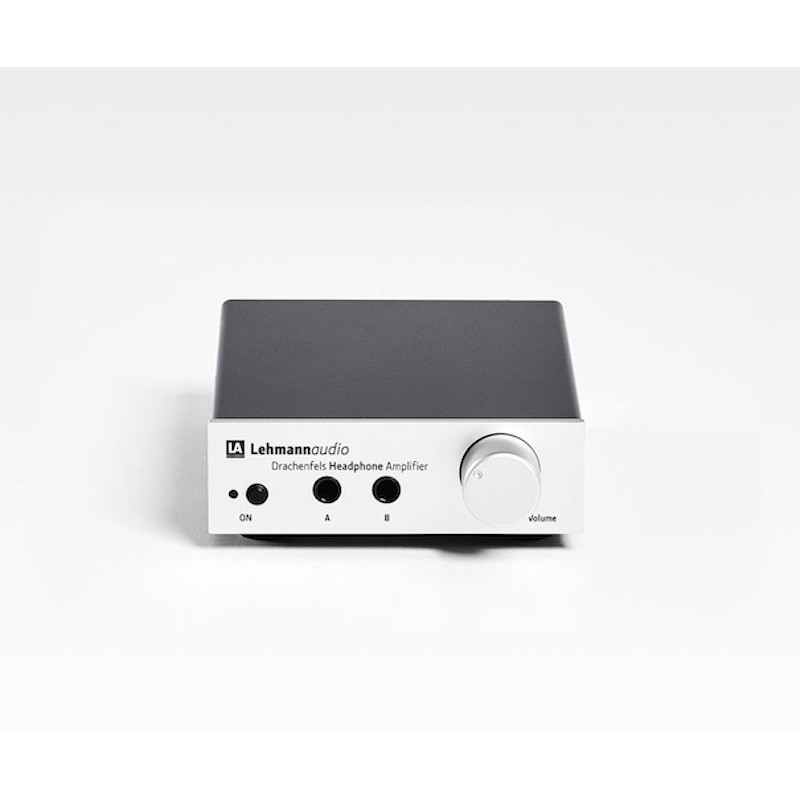

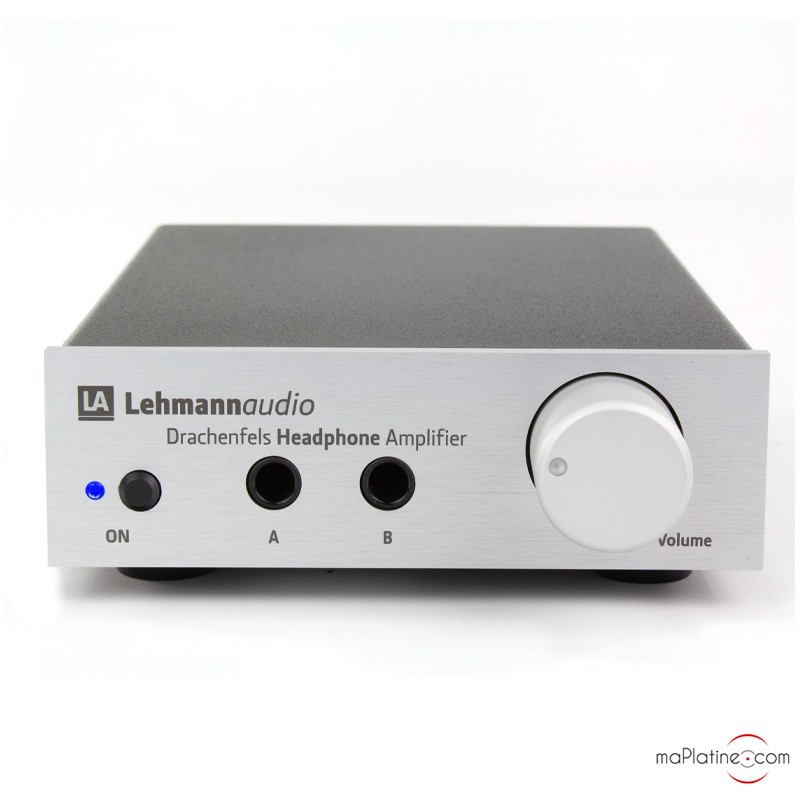

Front panel : Black or silver aluminum
