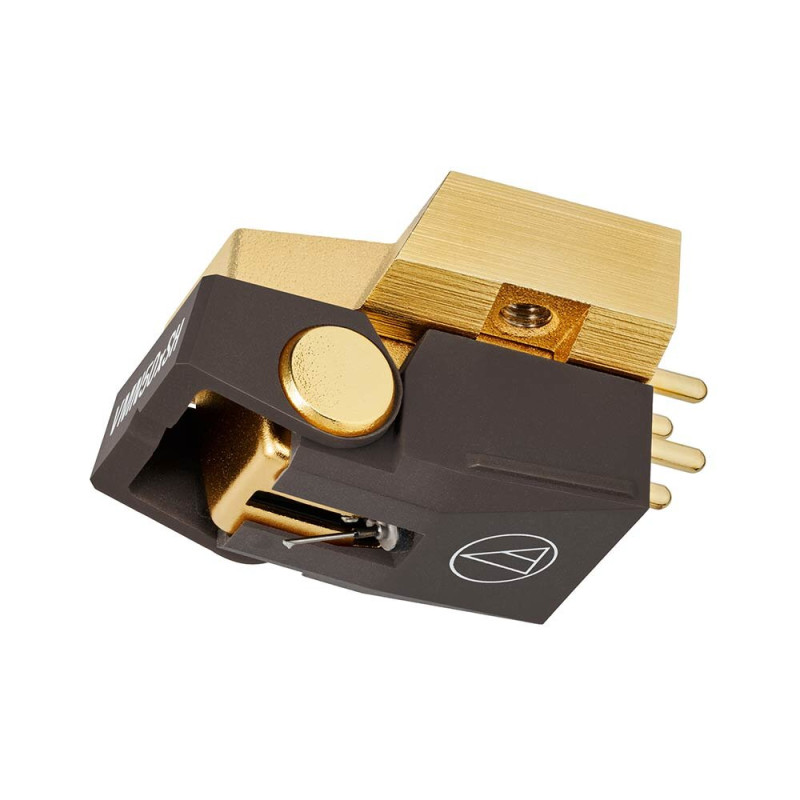

The Audio Technica VM 750x SH MM cartridge incorporates the main qualities of the famous AT 750 but it receives the significant innovations and technologies developed on the manufacturer's new high-end models.
Audio Technica AT VM 750x SH : Diamant
The superb Shibata diamond is precisely bonded to a superb boron cantilever. This complex profile has been optimized to reproduce the midrange with maximum substance and presence without distortion and in the absence of surface noise.
The flip-up diamond guard is integrated into the Audio Technica VM 750x SH cartridge.
Audio Technica AT VM 750x SH: Motor and Magnets
The motor is made up of dual magnets using "VM" technology. Instead of using a single large magnet, the two magnets are arranged in a "V" shape.
They are precisely positioned to match the left and right channel positions.
The VM design of this Audio Technica AT-VM 750x SH ensures better channel separation and frequency response.
PCUHD (High Purity Oxygen-Free Copper) is now used for the voice coil conductors of all models. The number of winding turns has also been reduced, resulting in a more responsive, lighter sound quality and more nuanced musical expression. The entire AT-VMx series features a large central shielding plate between the left and right channels of the voice coil. This eliminates electrical crosstalk between the two generators and maintains high separation, improving stereo.
Audio Technica AT VM 750x SH : Corps
The cell structure is made of die-cast aluminum coated with a gold layer. This provides greater mass than the polymer and improves the cell's mechanical and vibrational behavior. This results in a more accurate and nuanced reading.
The Audio Technica AT-VM 750x SH's structure is completely designed to minimize vibrations in the cartridge body for the most accurate and clear playback possible. In addition, the body now features threaded inserts, making it easier to attach to the
headshell. A V-shaped cutout has been added to the guard as a guide for the diamond position, improving visibility of the stylus tip when placing the needle on the record.
The connectors on this AudioTechnica are gold-plated.
Its mass, tracking force and compliance allow it to be associated with the majority of turntable tonearms.
Audio Technica AT VM 750x SH: Test and listening
With this Audio Technica VM 750x SH we find a reproduction quite close to the previous model.
But it is worth noting that most of its qualities have been subtly improved.
There is remarkable tracking and a non-existent surface noise level.
The high end of the spectrum is very precise and particularly defined. It is teeming with details, without being overly emphasized.
The midrange is clear, open, and airy. This is far from a dark or boring reproduction. However, the overall balance is a little softer and offers more substance than the previous version, which was already very successful!
The bass, as with all Audio Technica cartridges, is perfectly controlled and articulated. In this register, we are very close to the performance of an MC cartridge of equivalent budget! The bottom of the dynamic and physical spectrum. The articulation is remarkable, and the definition is surprising. The whole is perfectly controlled and articulated without losing nuance or subtlety.
The Audio Technica VM 750x SH cartridge is one of the top 4 or 5 MM cartridges available today!
Recommended!
FranckType : MM
Frequency response: 20 Hz-27 kHz
Channel separation: 26 dB
Channel balance: 1.5 dB
Output voltage: 3.7 mV
Vertical reading angle: 23°
Downforce: 1.8/2.2g
Recommended tracking force: 2g
Diamond: Microline
Tip Size: 2.7 x 0.26 mil
Assembly: Integral
Cantilever : A Bore
Compliance : 14 x 10-6cm/dyne
Coils: Para-Toroidal, PCUHD conductors
Moving magnet: VM Double magnet
Load impedance: 47 Kohms
Load capacitance: 150-250 pF
Cell mass: 8.8g
Height: 17.5 mm
Fixing: 1/2 inch screw
