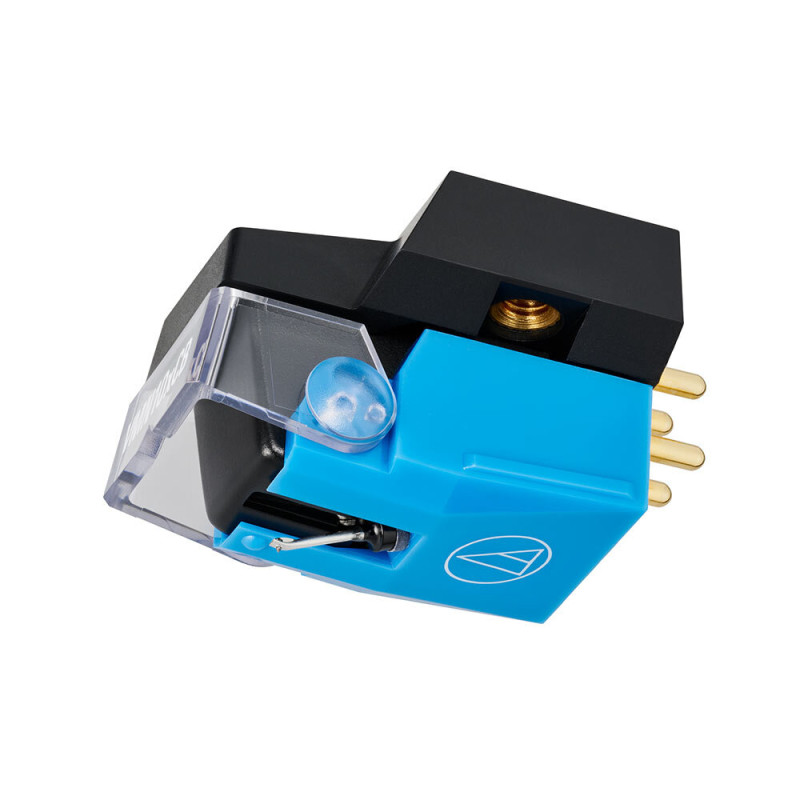

Cellule MM Audio Technica VM 510x CB

The Audio Technica AT VM 510x CB MM cartridge is a classic, high-performance, and affordable moving magnet cartridge. This new version features several significant improvements.

Audio Technica AT-VM 510 x CB: Diamant

Its conical diamond is precisely bonded to an aluminum cantilever.

The integrated flip-up stylus guard on the Audio Technica VM510 cartridge is very practical.

Audio Technica AT VM 510x CB: Motor and Magnets

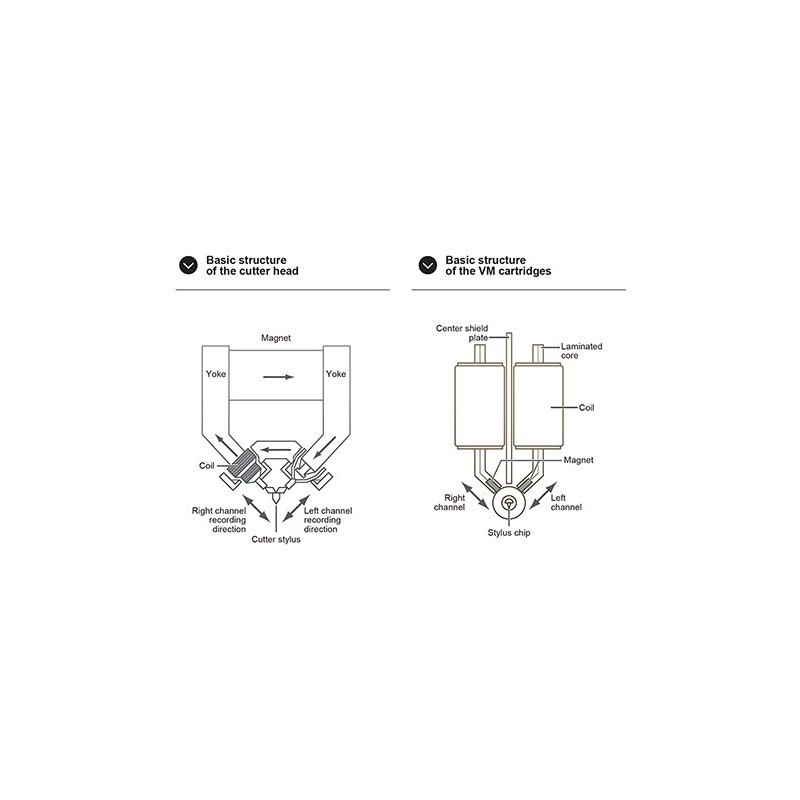

The motor is made up of dual magnets using "VM" technology. Instead of using a single large magnet, the two magnets are arranged in a "V" shape.

They are precisely positioned to match the left and right channel positions.

The VM design of this Audio Technica VM 510x ensures better channel separation and frequency response.

PCUHD (High Purity Oxygen-Free Copper) is now used for the voice coil conductors of all models. The number of winding turns has also been reduced, resulting in a more responsive, lighter sound quality and more nuanced musical expression. The entire AT-VMx series features a large central shielding plate between the left and right channels of the voice coil. This eliminates electrical crosstalk between the two generators and maintains high separation, improving stereo.

Audio Technica VM 510 x CB : Body

The VM510's structure is designed to minimize vibrations in the cartridge body for the most accurate and clear playback possible. Additionally, the body now features threaded inserts, making it easier to attach to the headshell. A V-shaped cutout has been added to the guard as a guide for the diamond position, improving visibility of the stylus tip when placing the needle on the record.

The connectors on this AudioTechnica are gold-plated.

Its mass, tracking force and compliance allow it to be associated with the majority of turntable tonearms.

Audio Technica VM 510x CB: Test and listening

The restitution enjoys beautiful clarity and excellent readability.

This Audio Technica VM 510x CB cartridge promotes precision and detail.

Its conical diamond allows it to be relatively forgiving of disc quality.

An excellent moving magnet (MM) cartridge offered at an attractive price.
