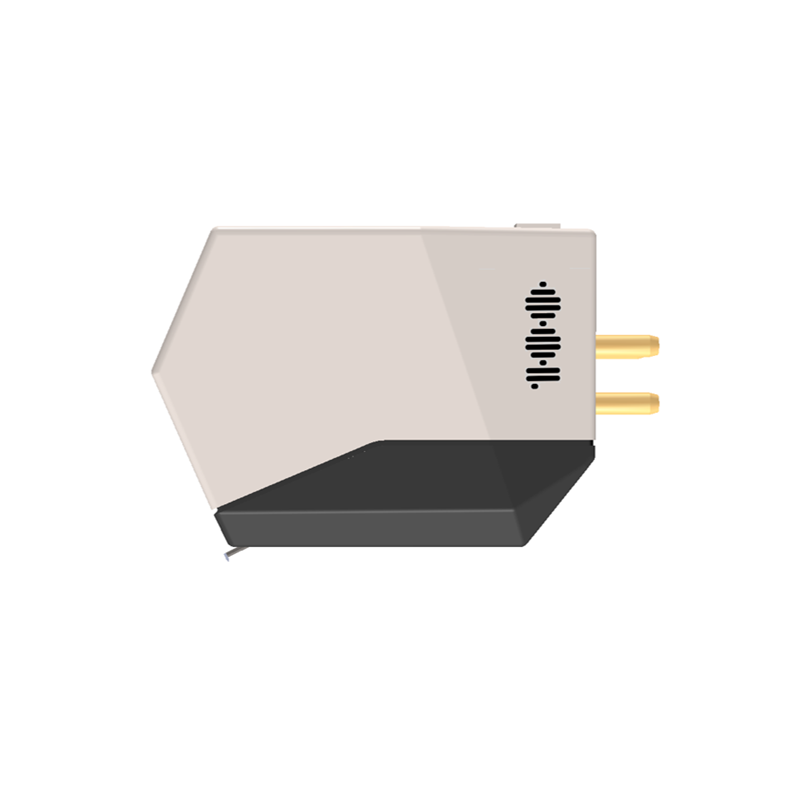

Ortofon Century MC cartridge

Low output MC cartridge
Nude Replicant 100 stylus
Diamond cantilever
Limited to 100 editions worldwide
Made in Denmark

Know more

Product no longer available

MPLSEOR177

Citelis paiement

Comment ça marche ?

1 Validez le contenu du panier
2 Choisissez paiement en 3 fois au règlement
3 Laissez-vous guider et validez

e-mail alert

Please, enter your e-mail address to be notified when the product will be back in stock

OK
Contact us
Need help ?
  • An attentive team

  • Quality products

  • Secure and fast shipping

  • Paiement sécurisé sans frais 3x dès 1500€ d’achat

Description

Ortofon is celebrating its 100th anniversary this year! It is indeed the oldest manufacturer of phono cartridges in the world. To fittingly celebrate 1 century of engineering, the Danish manufacturer had to release an exceptional cartridge…

The Ortofon Century MC cartridge is the best cartridge possible in terms of low output MC cartridges manufacturing. For Ortofon, this Century cartridge represents the highest possible performance level in analogue.

ORTOFON CENTURY: BODY

The casing and the body of the cartridge are made in titanium with the SLM (Selective Laser Melting technology).

A Selective Laser Melting process welds together fine particles of titanium (layer by layer). The result is a single piece body devoid of unnecessary components.

Thanks to this process, the density of the body can be controlled with precision, thus enabling for an extremely high internal damping.

Due to the SLM construction technique, each cartridge body is unique in appearance. Under close examination, you will be able to see small lines or dimples.

The bottom of the Century cartridge has a TPE plate (Thermo-Plastic Elastomer). This provides an extremely high damping without any colouration.

ORTOFON CENTURY: MAGNET AND COILS SYSTEM

The magnet and coils system is made up of coils built with an ultra pure and extremely expensive oxygen free copper conductor. This enables for a lossless transmission of the diamond’s movements via the cantilever.

The magnet and coils system of this Ortofon MC cartridge uses an iron cobalt alloy applied for certain parts of the magnet system. The nonmagnetic armature is precision moulded and offers a very high resistance and rigidity.

ORTOFON CENTURY: REPLICANT 100 STYLUS

Just like with the Anna Heritage MC cartridge, Ortofon has chosen a Replicant 100 stylus.

This stylus is very thin and light. It also offers an extraordinarily important contact surface, thus guaranteeing a playback precision and a tracking ability unequaled to this day. All the other profiles have an inferior tracking ability and a superior surface noise.

It is combined with a new diamond cantilever! Its crystalline structure and exceptional hardness ensure the best interface possible between the stylus and armature.

ORTOFON CENTURY: TONEARM

The final result offers an absolute freedom in comparison to resonances present in the body of the cartridge and enables this Ortofon Century to be perfectly compatible with a large choice of tonearms.

However, its mass (more than 15g), its compliance (9), and its tracking force of 2.3g make it compatible with long (10 or 12 inch) tonearms that have an effective mass of at least 10g.

ORTOFON CENTURY: SETTINGS

The Ortofon Century MC cartridge has a low output impedance (6 ohms) and a low output voltage (0.2 mv).

This strongly encourages to combine it with a step-up transformer. Of course, Ortofon suggests the Ortofon ST 80 SE step-up transformer in order to get all of the potential out of this phono cartridge.

ORTOFON CENTURY: LISTENING

The whole offers an extremely reactive and transparent sound restitution.

As the happy owner of the Anna Heritage MC cartridge, I was curious to hear what more this Ortofon Century cartridge could bring… And well, a new reference is born! It is certainly the most beautiful phono cartridge available today!

But careful, Ortofon is only making 100 editions worldwide… and less than 10 for France! So even at this price, there will not be enough Ortofon Century cartridges for everyone!

The reference in MC cartridges!

Franck

Output voltage at 1000 Hz, 5cm/sec: 0.2 mV

Channel balance at 1 kHz: 0.5 dB

Channel separation at 1 kHz: 25 dB

Channel separation at 15 kHz: 22 dB

Frequency response: 20 Hz-20 kHz +/- 1.5 dB

Tracking ability at 315Hz: 80 μm

Lateral compliance: 9 μm/mN

Stylus: Nude Special Polish Replicant Ortofon 100 Nu

Cantilever: diamond

Stylus radius: r/R 5/100 μm

Recommended tracking force: 2.3 g (23 mN)

Tracking angle: 23 °

Internal impedance: 6 Ohms

Recommended load impedance: >10 Ohms

Body material: SLM Titanium

Color: silver/back

Cartridge weight: 15 g
