Description

Datasheet

Our expert's words

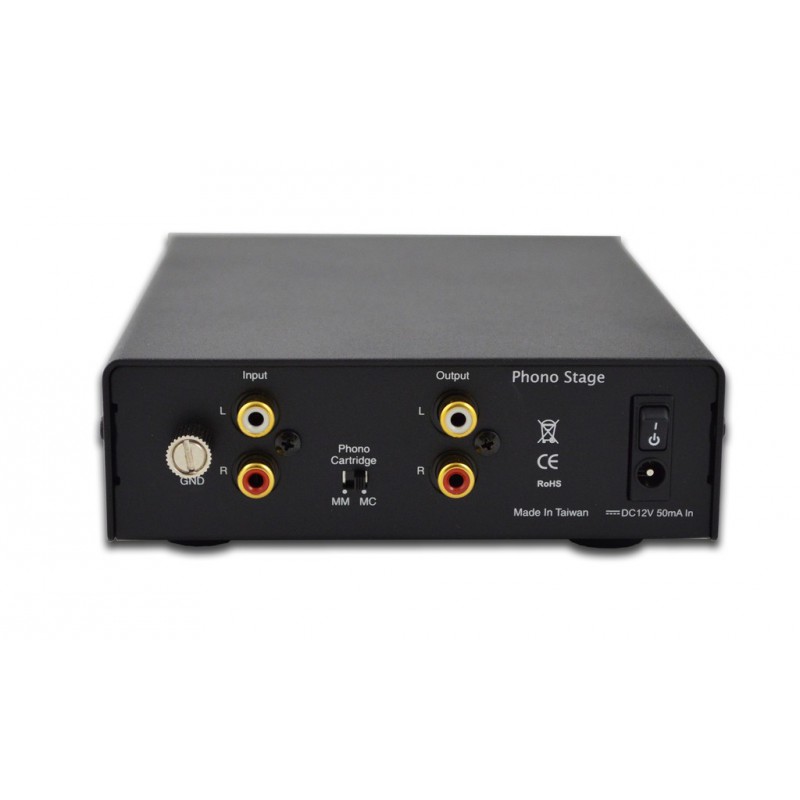

Brik's PHONO STAGE is now typically cube-shaped. It is bulkier and heavier than its competitors in the range. The aluminium front panel (silver or black) features a very understated logo and a pretty blue LED. The rear panel features two gold-plated pairs of RCA outputs, a ground plug and an MM/MC selector. Note that the housing is made of an alloy that wards off electromagnetic interference to guarantee optimally clean and silent operation.



The BRIK Phono Stage is compatible with almost all moving magnet and moving coil cartridges.



The sonic performance is very detailed and precise and does not alter the analogue quality! It works wonders with an MC cartridge which is quite rare for this price range. It is fairly neutral, making it compatible with a variety of models. This BRIK Phono Stage comes as a very pleasant surprise! We heartily recommend it

Franck

MM input sensitivity: 4-6 mV

MC input sensitivity: 0.4-0.6 mV
Output: 500-550 mV

Maximum input voltage: > 80 mV

Maximum output voltage: > 8 V

MM input impedance: 45-56 kOhms

MC input impedance: 80-120 Ohms



MM and MC output impedance: < 680 Ohms

MM gain MM at 1 KHz: 38-42 dB

MC gain at 1 kHz: 58-62 dB
Distortion (5 mV INPUT) MM: <0.1%

Distortion (5 mV INPUT) MC: <0.3%

MM signal-to-noise ratio: >65 dB

MC signal-to-noise-ratio: >55 dB

RIAA precision: +-1 dB
Channel balance: <0.5 dB
Channel separation: > 60 dB

Dimensions (w x h x d): 140 x 48 x 160 mm

Weight: 1 kg

Technical vocabulary
Customer reviews
(1 review)

Customer reviews

5/5
01/09/2017

petit bijou

finesse,rondeur,attaques, précision des aigus et puissance des graves tout y est .
A recommander pour ce petit budget
