Pro-Ject EVO 10CC tonearm

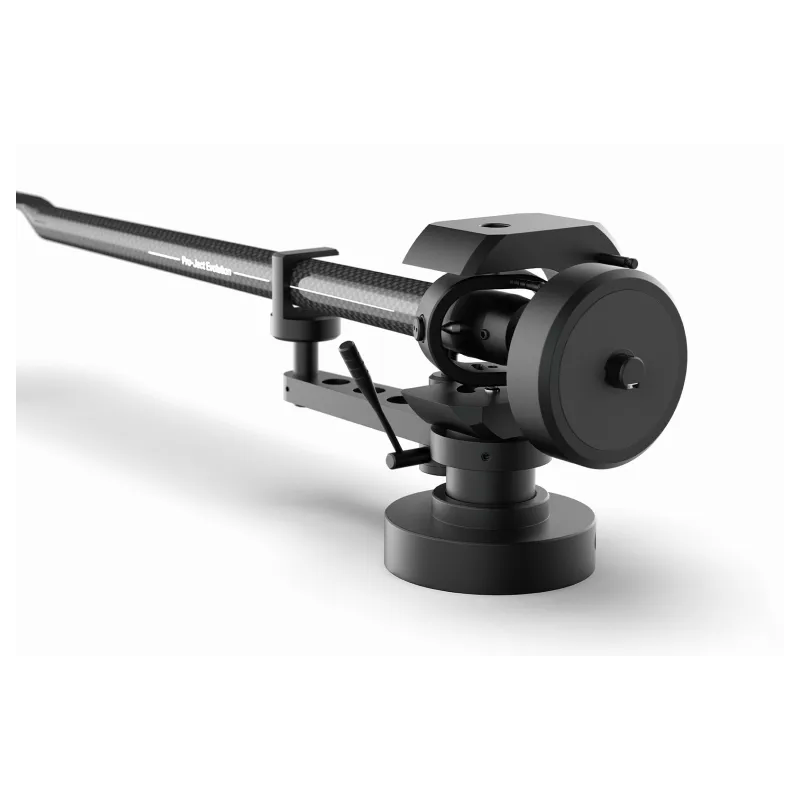

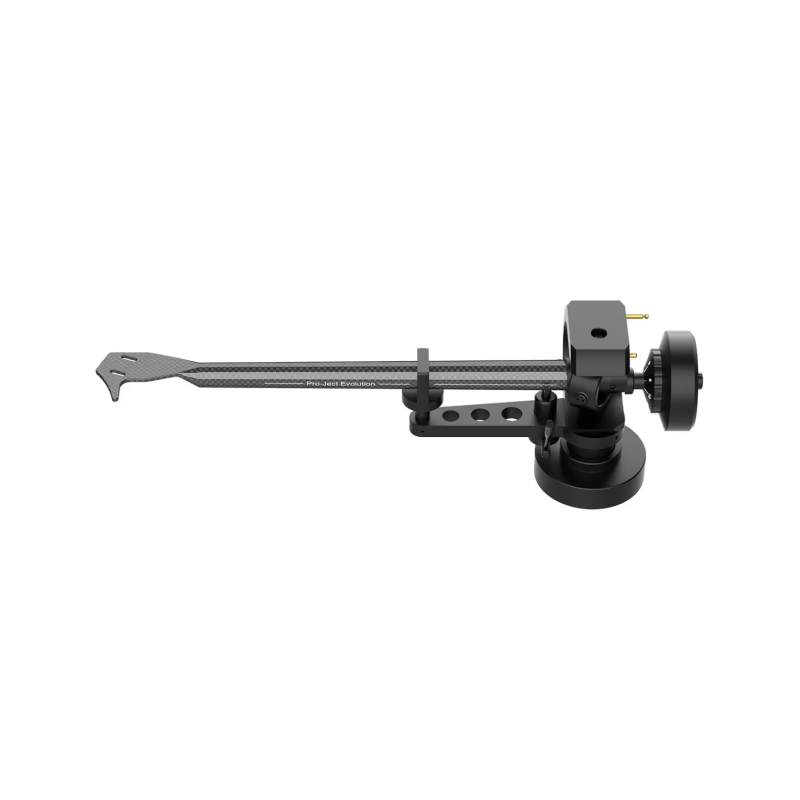

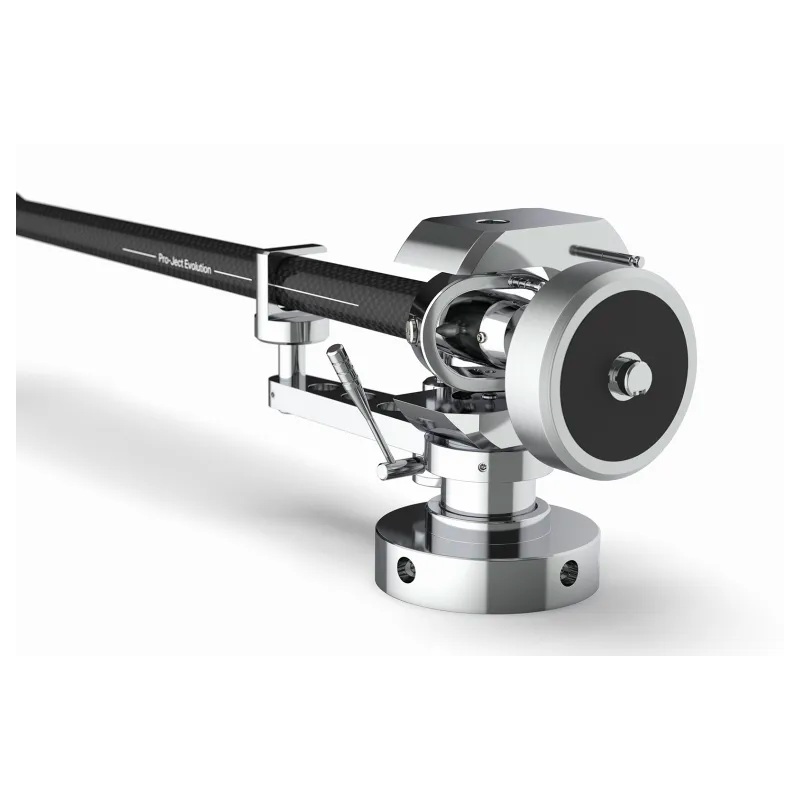

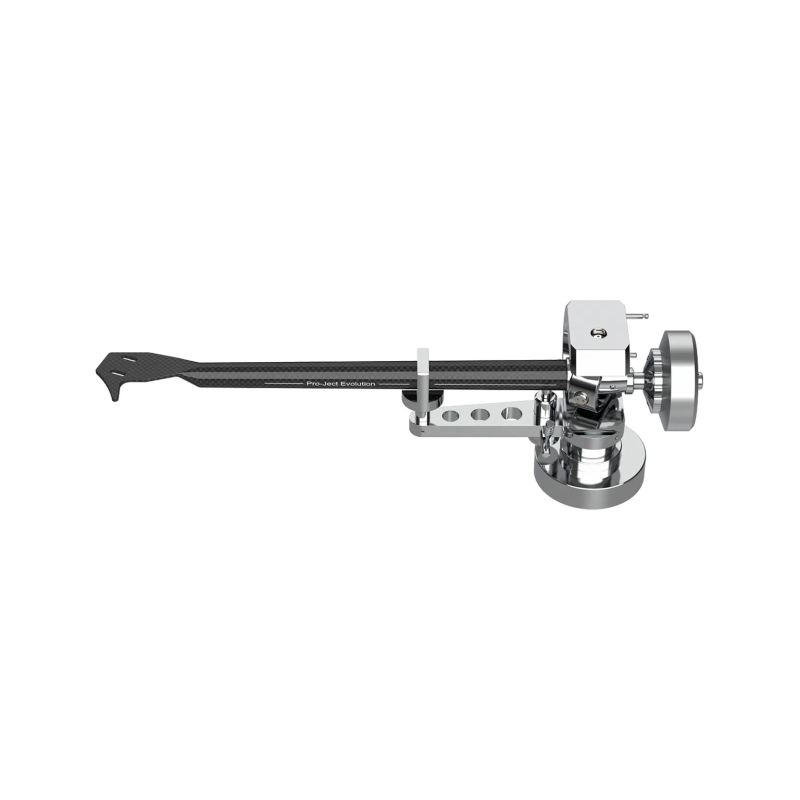

The tonearm Pro-Ject EVO 10 CC is offered in black (10CC Black) or Chrome (10CC HG) finish. It is equipped with a headshell and arm tube made from a single piece of carbon fiber. The carbon tube is held in place by a single screw. It allows the rotation of the latter and refine the adjustment of the azimuth. The arm tube shows a conical profile which avoids standing wave reflections. Four stainless steel spikes mounted on quality ABEC 7 ball bearings form the bearings of this inverted gimbal arm. The arm bearing housing is ring type. The massive outer hoop is open to avoid resonance.

The counterweight is damped with Sorbothane® to effectively combat unwanted resonances.

The counterweight's center of gravity is lowered to disc level, to reduce overhang forces and dynamic wow when playing discs.

The arm base is made of solid aluminum. It allows precise adjustment of the arm height and vertical angle (VTA). The effective length of the arm is 10" (254 mm) and its effective mass is 8.5 g. The counterweights provided make it possible to adapt cells with a mass of 6 to 14 g.

The internal wiring consists of high purity copper cables (CU 63.546) from the read head to the gold-plated Din male plug sockets.

This connection is the standard 5-pole DIN Phono connection.

This tonearm Pro-Ject EVO 10 CC also fits turntables with a Linn standard mounting hole.

The tonearm Pro-Ject EVO 10 CC comes without phono cable.
