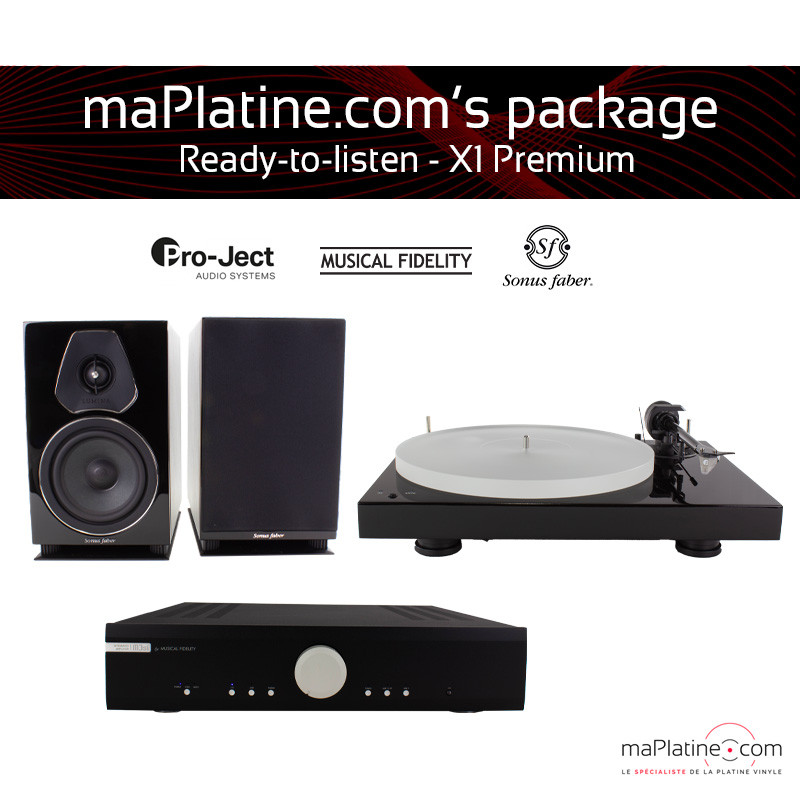

This X1 Premium ready-to-listen pack is composed of a Pro-Ject X1 B turntable, a Musical Fidelity A1 integrated amplifier and Sonus Faber Lumina II bookshelf speakers. maPlatine.com offers you the speaker cables (2x3m). If you would like another colour of turntable for this vinyl system, do not hesitate to ask us by e-mail or phone.

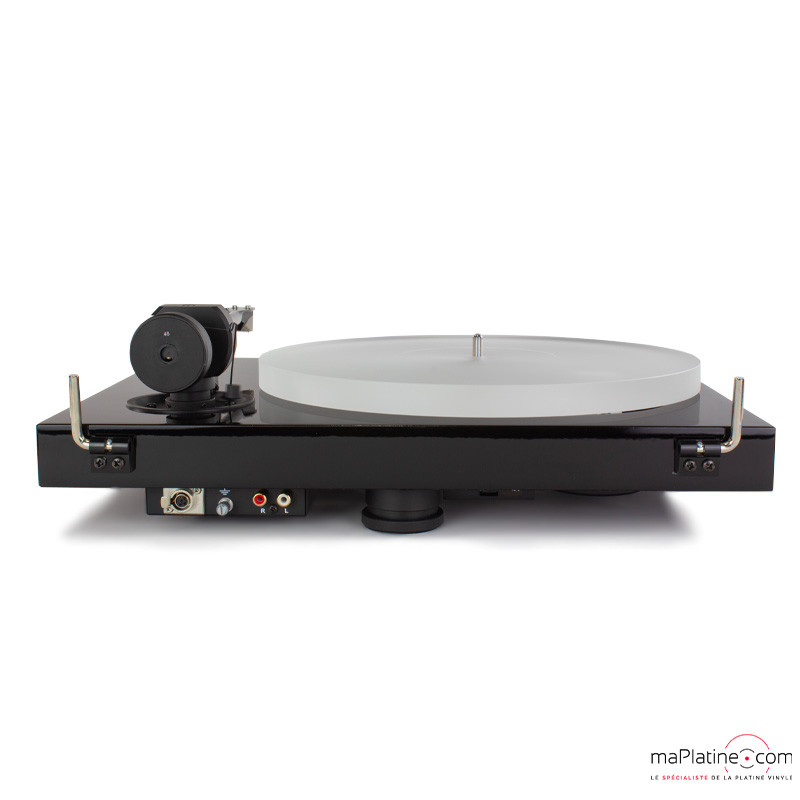

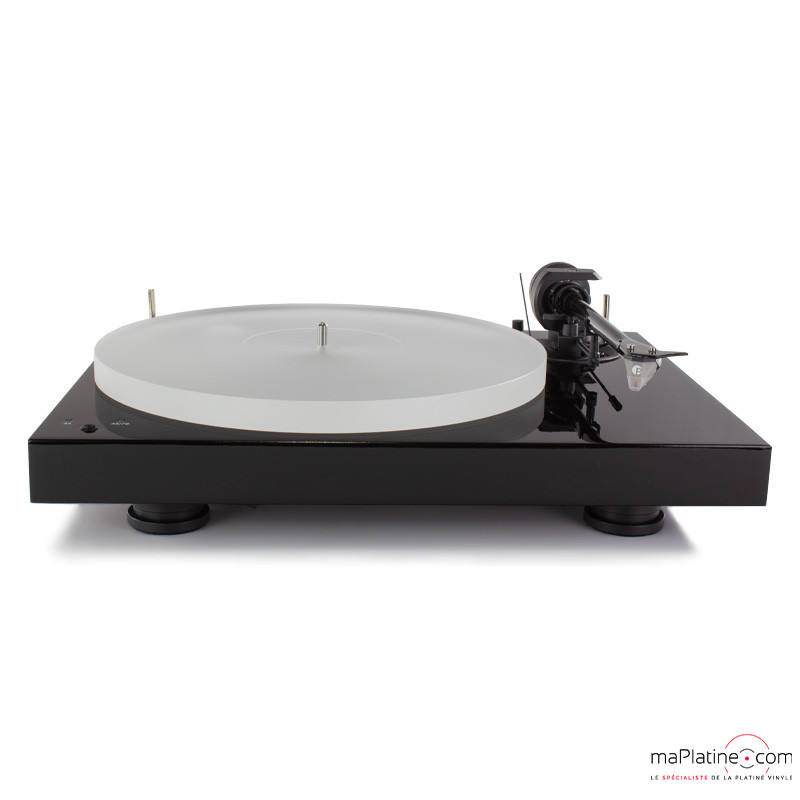

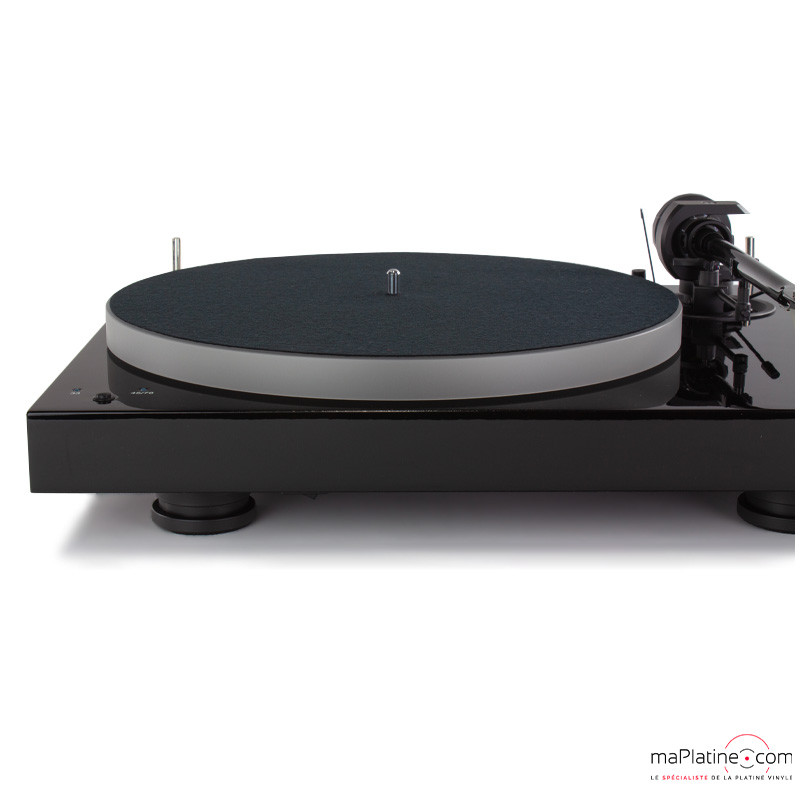

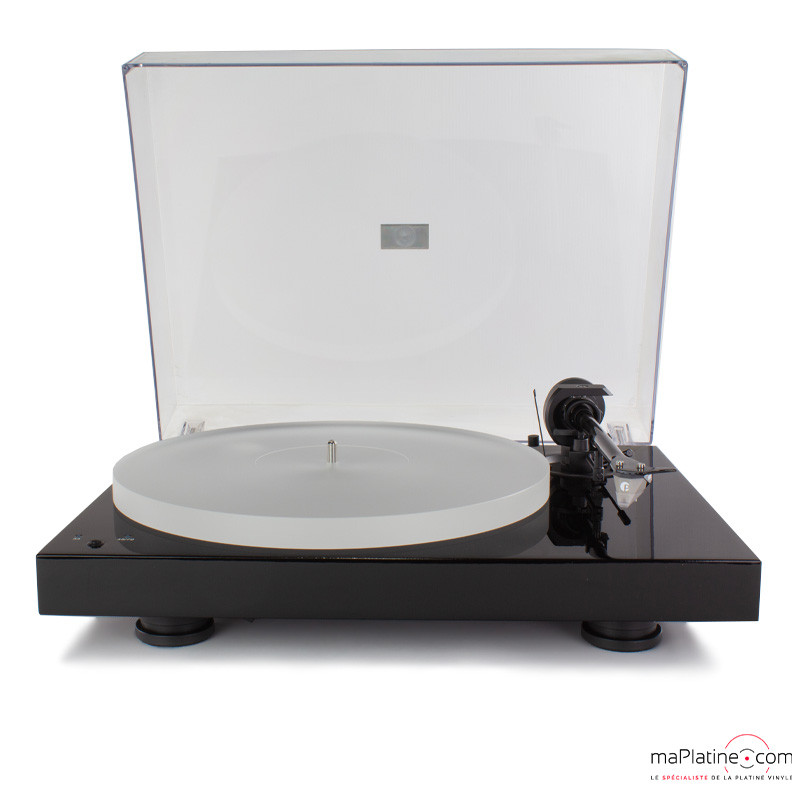

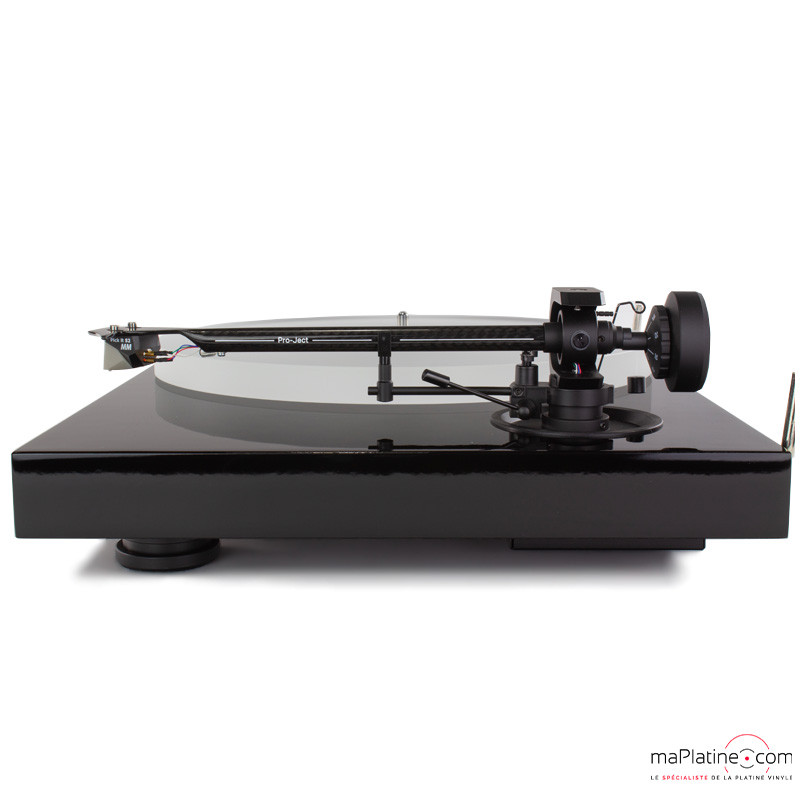

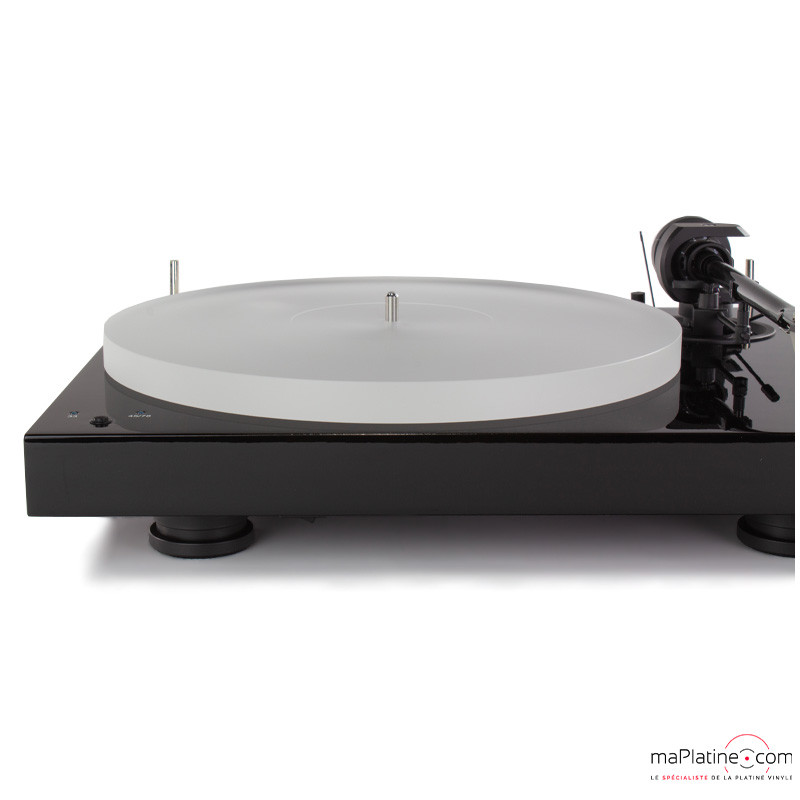

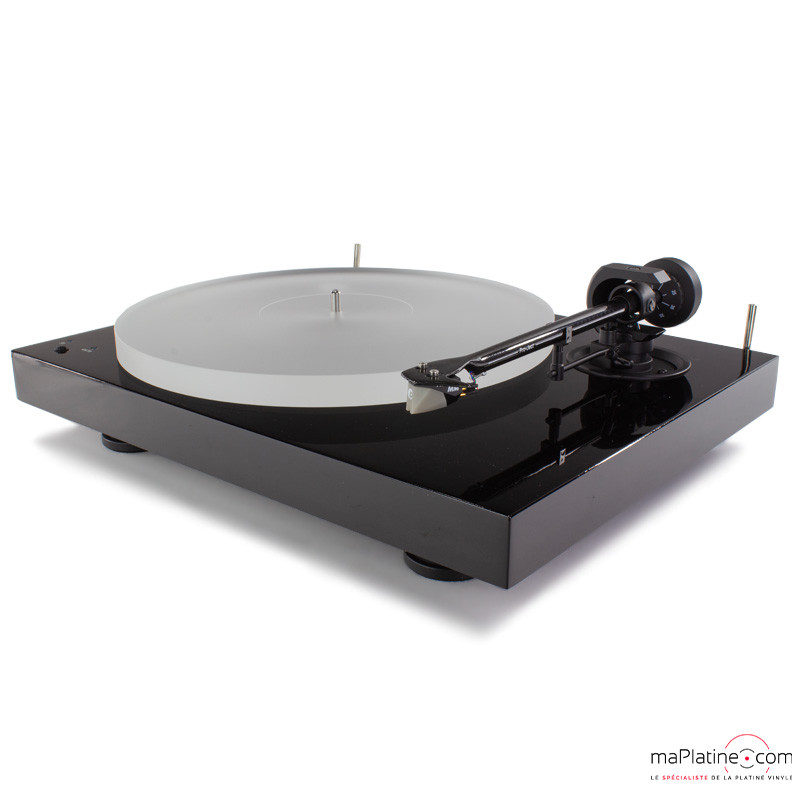

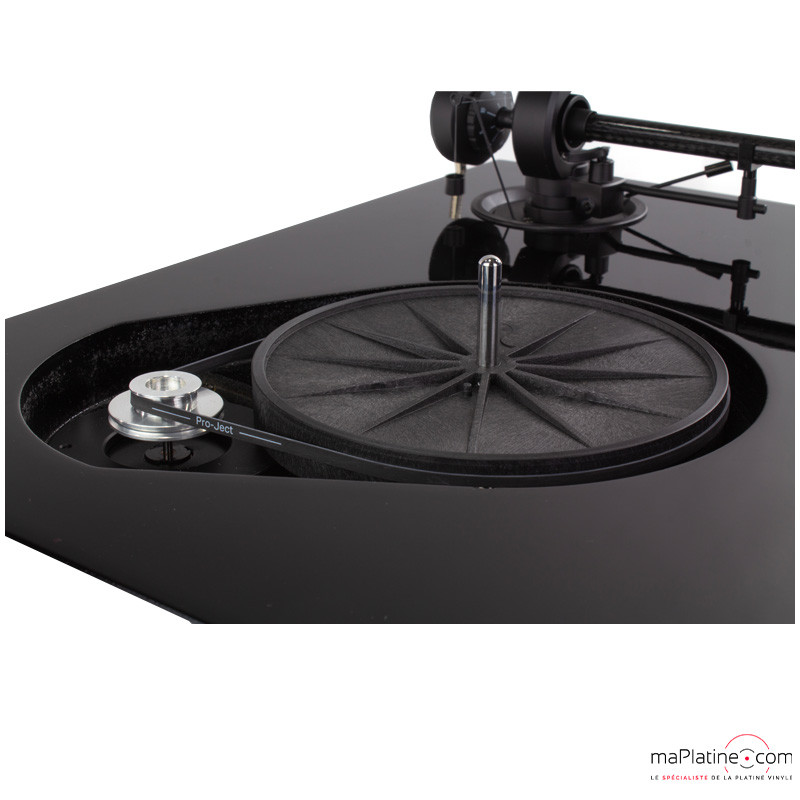

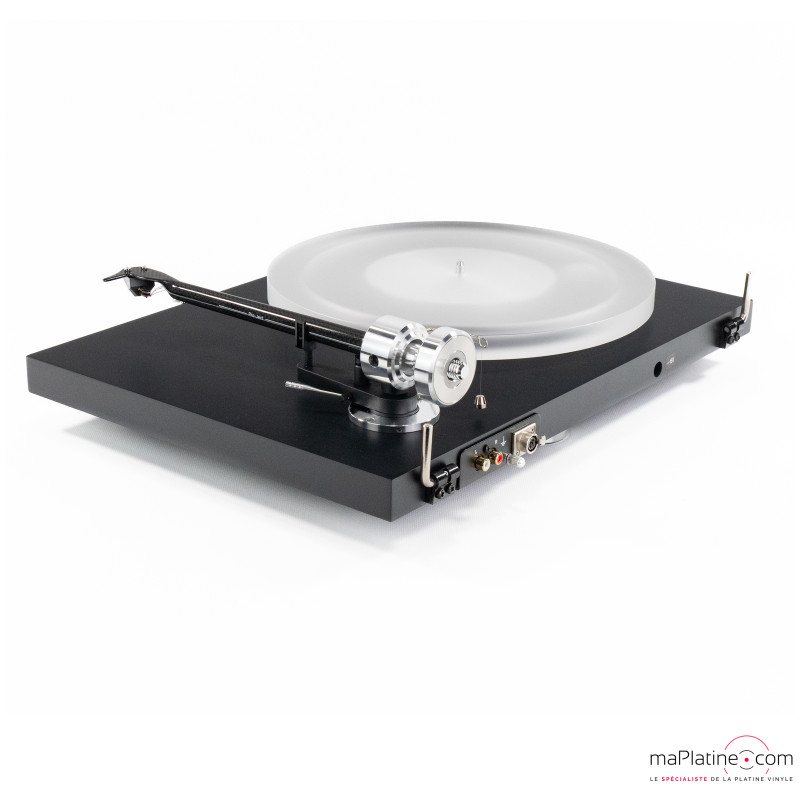

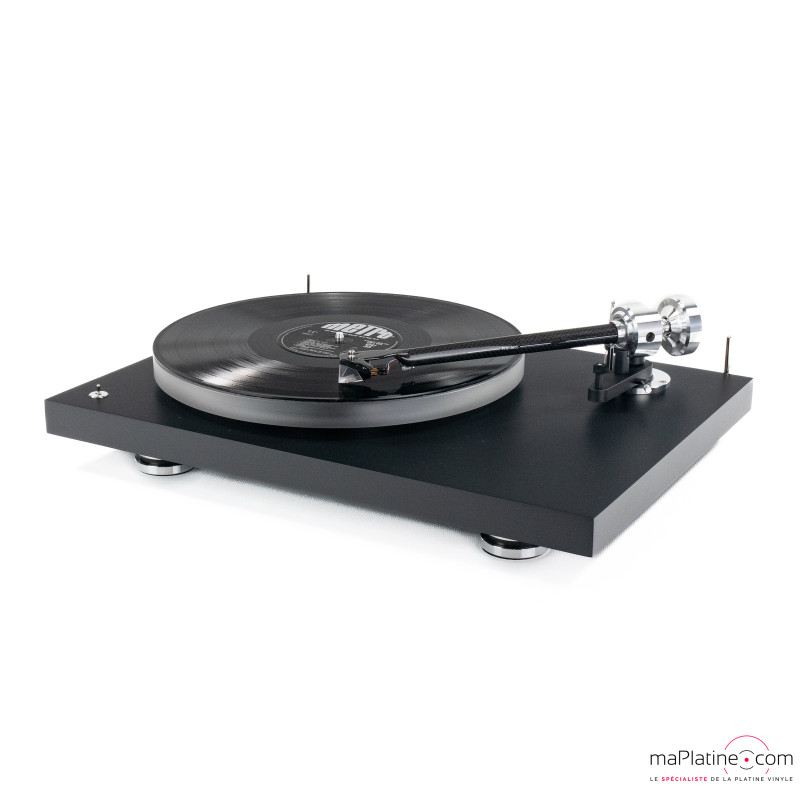

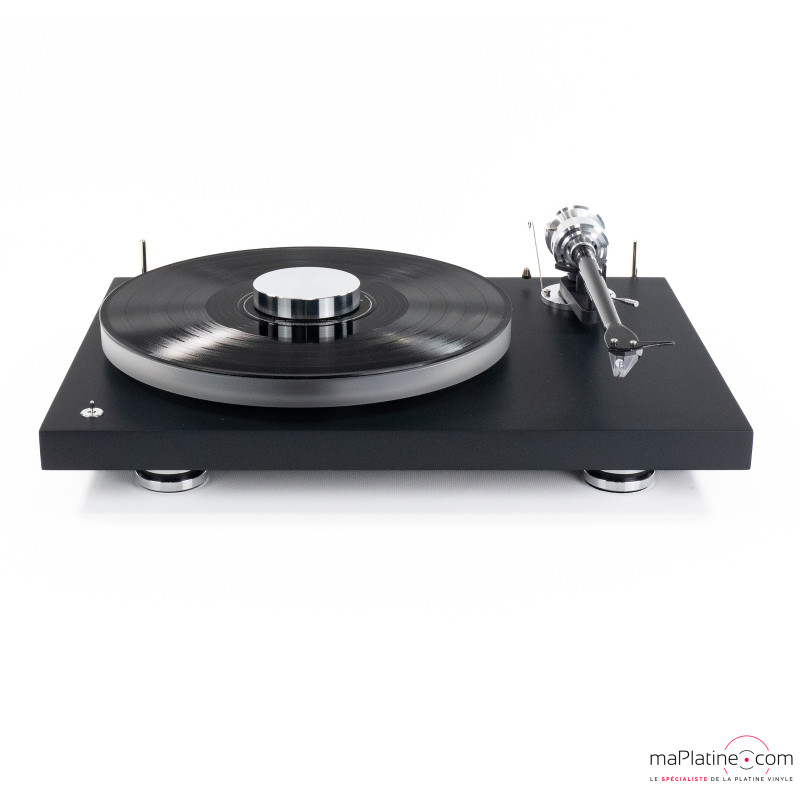

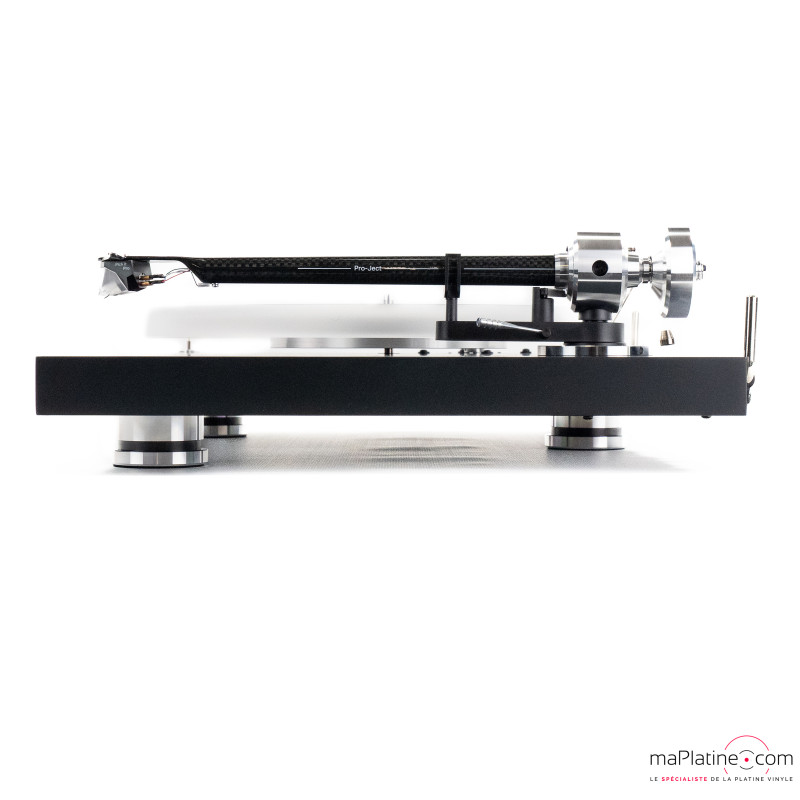

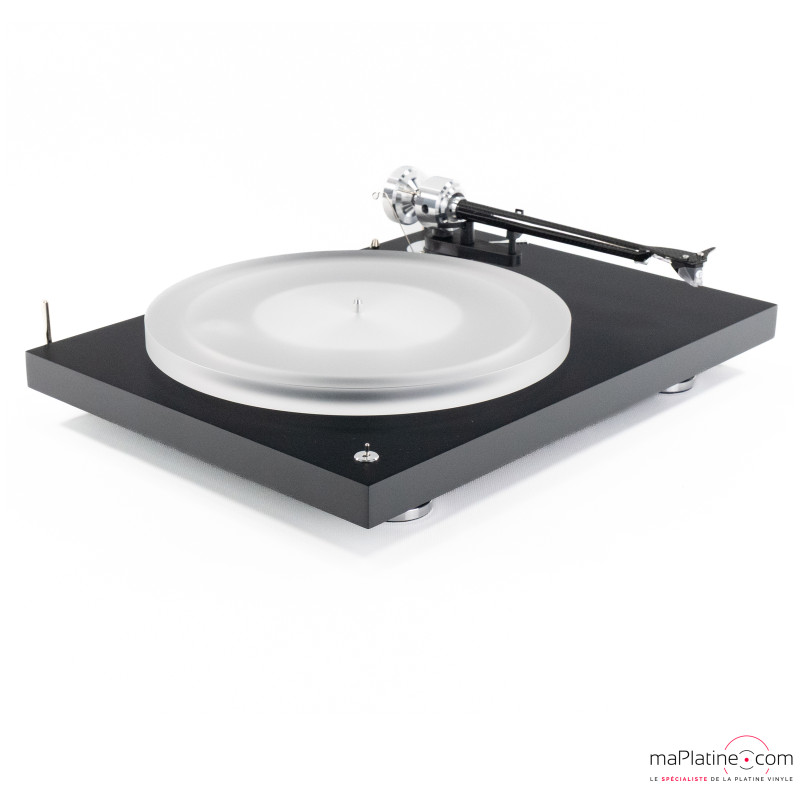

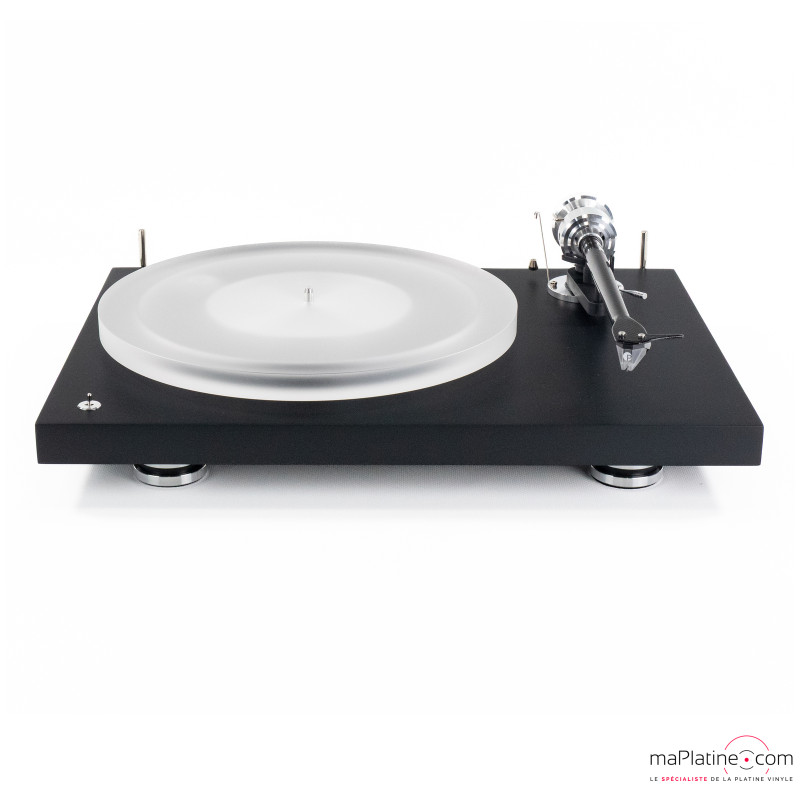

Pro-Ject X1 B turntable

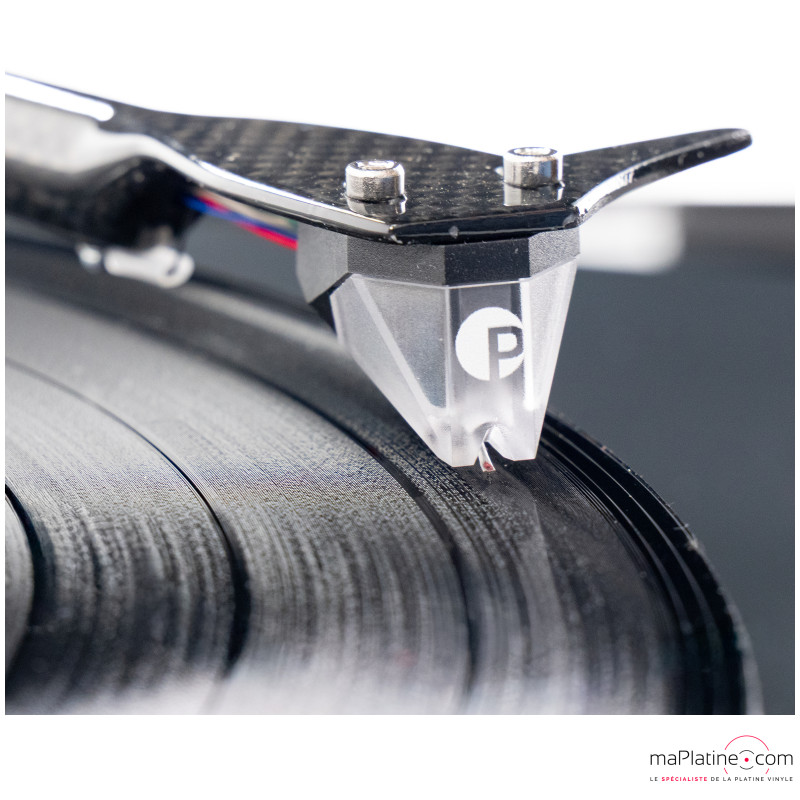

The X1 B turntable is part of the Austrian manufacturer's new range of turntables. It replaces the famous 1-Xpression range. This vinyl record player is equipped as standard with a Pro-Ject Pick It S2 MM cartridge, developed in collaboration with the Ortofon brand. The X1 B offers a detailed and realistic reproduction.
Find more details on the product sheet of the Pro-Ject X1 B turntable.

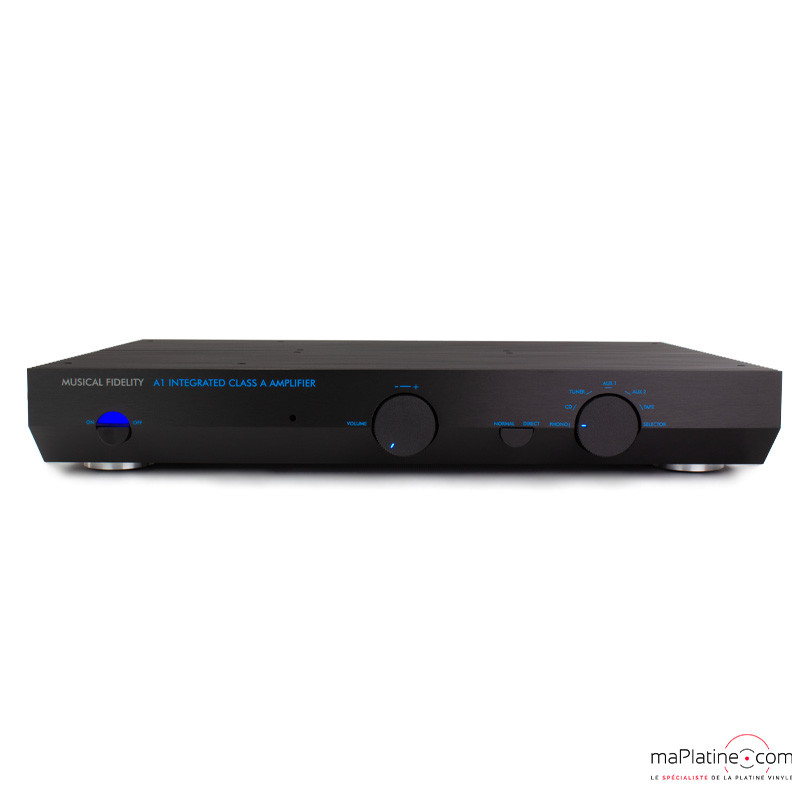

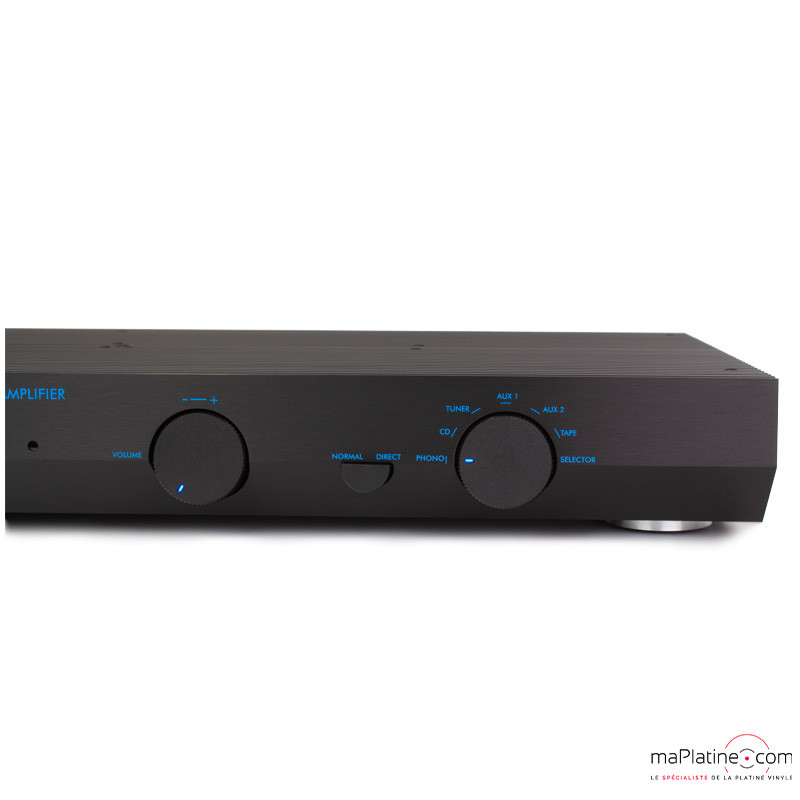

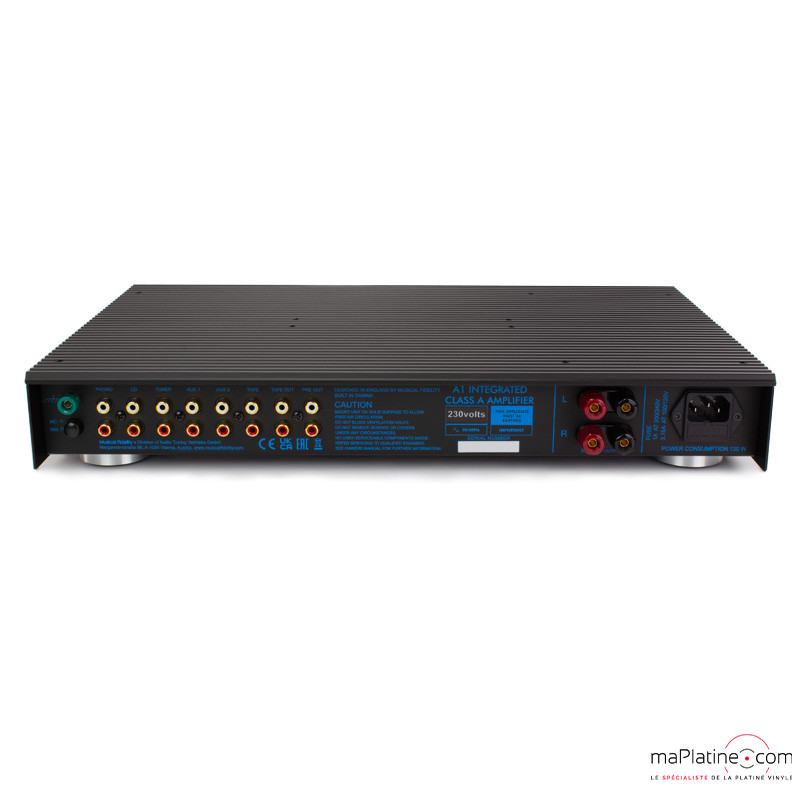

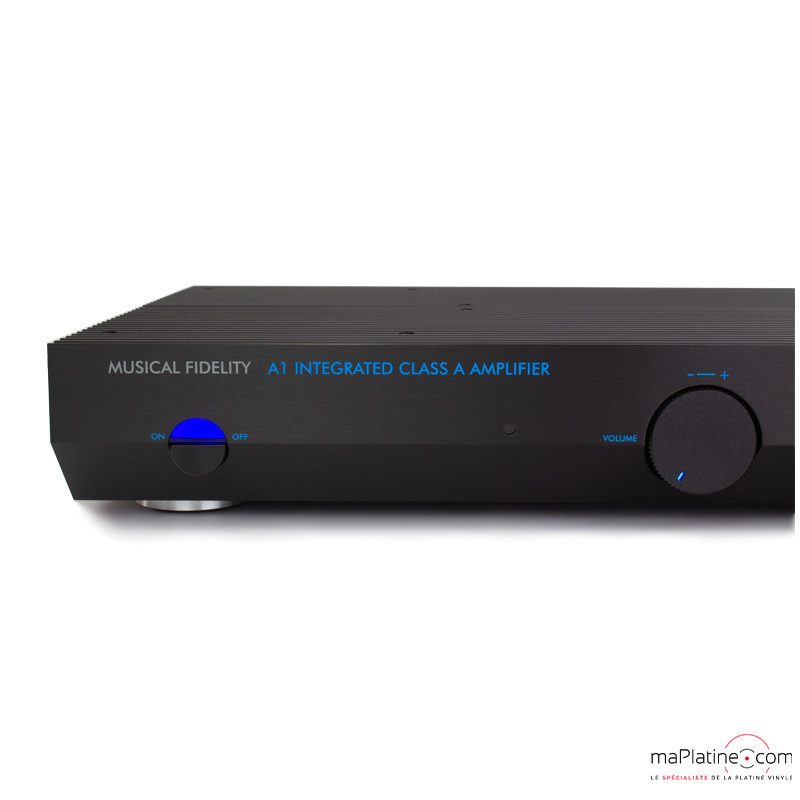

Fidelity A1 Music Integrated Amplifier
The Fidelity A1 Musical Integrated Amplifier comes in a compact yet powerful form factor. A true Swiss Army knife, it offers a cleverly elaborated internal configuration.
Find more details on the product sheet of the Fidelity A1 Musical integrated amplifier.

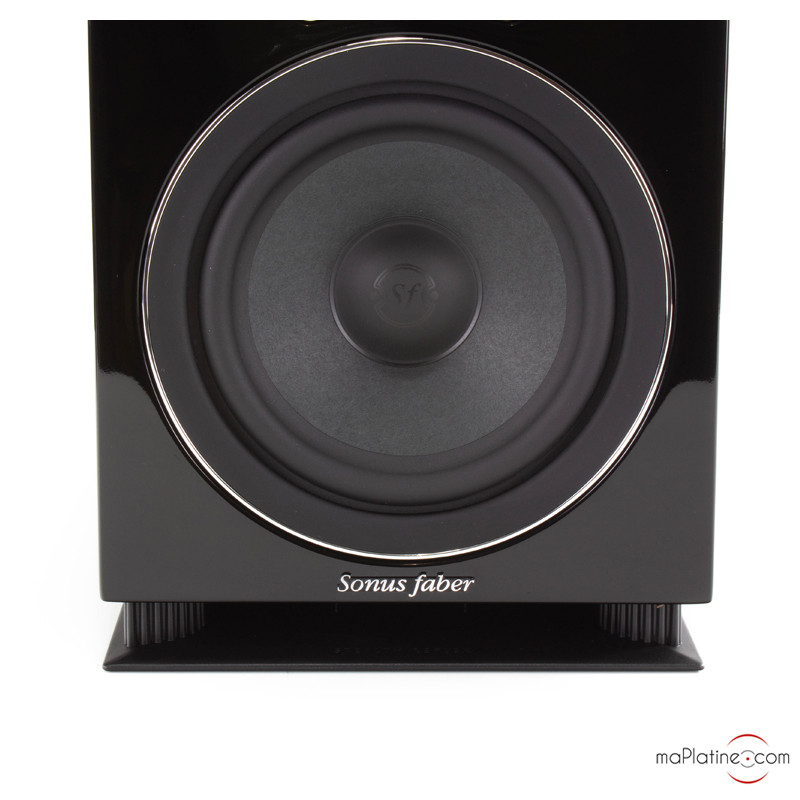

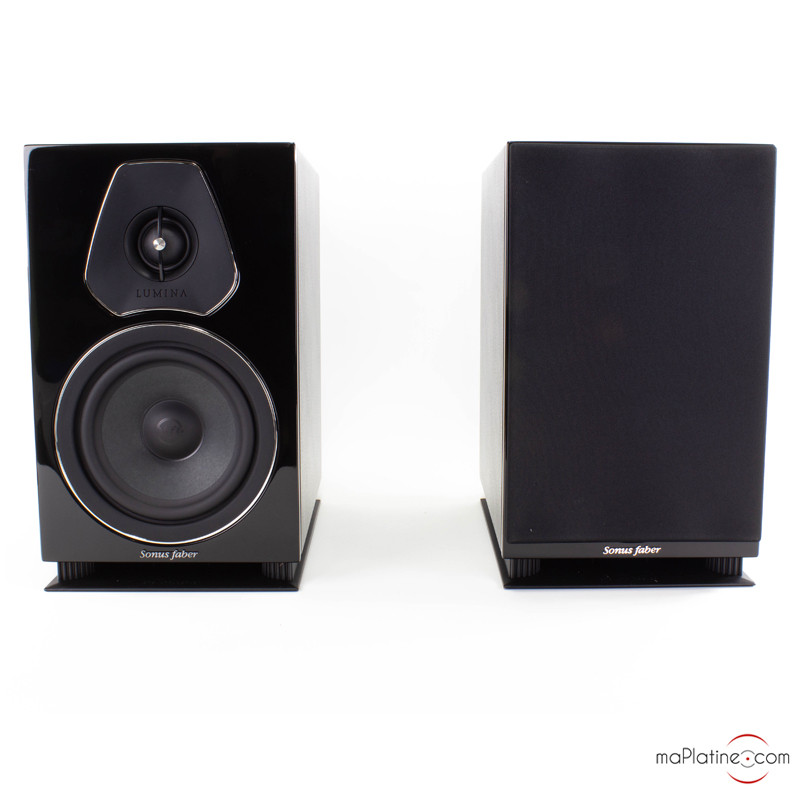

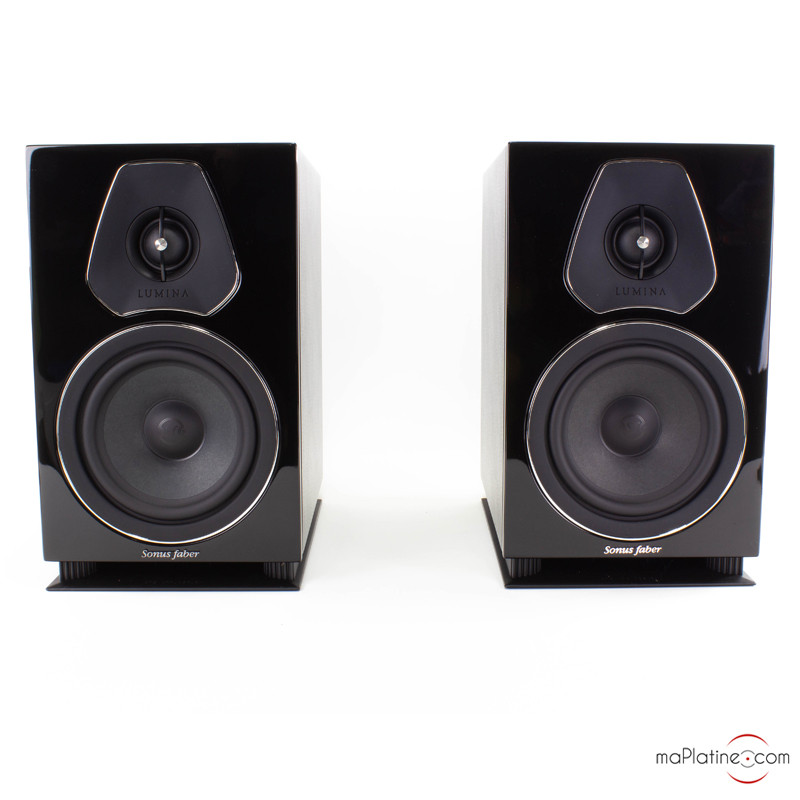

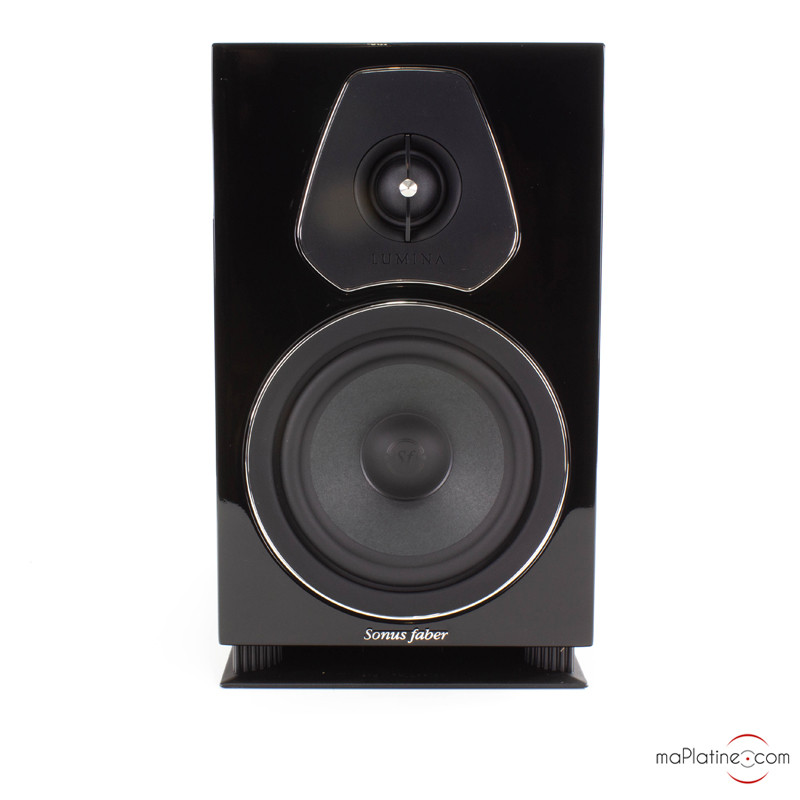

Sonus Faber Lumina II bookshelf speakers
Italian manufacturer Sonus Faber never disappoints, and this pair of Lumina II bookshelf speakers is proof of that. These are speakers with elegant finishes and an ingenious design. Enjoy a bright listening experience with a precise soundstage.
Find more details on the Sonus Faber Lumina II bookshelf speaker product sheet.

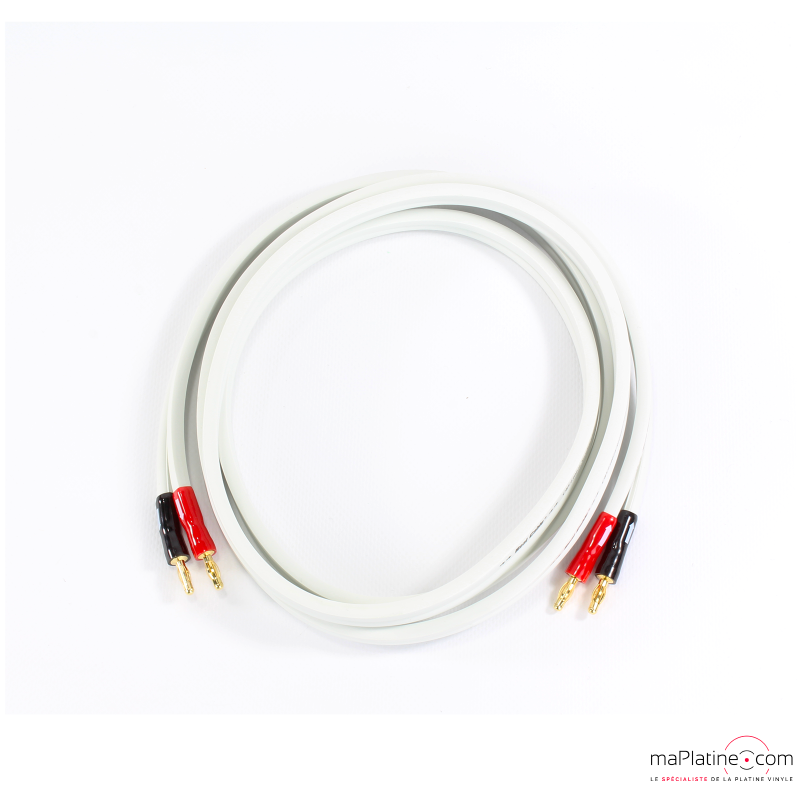

Real Cable CBV Speaker Cables 130016
The HP Real Cable CBV is equipped and mounted with excellent quality, 24k gold-plated multi-point banana plugs.
It is designed with OFC copper conductors with a purity of 99.99%. These very fine strands receive HSCC (High Spec Copper Conductor) braiding and progressive double insulation (PP Gradient Insulation).
They offer a transparent and very smooth reproduction with a very controlled bass.
FAQ: Everything you need to know before buying the X1 Premium pack
What does the "B" in the X1 B turntable mean, and do I need specific equipment?

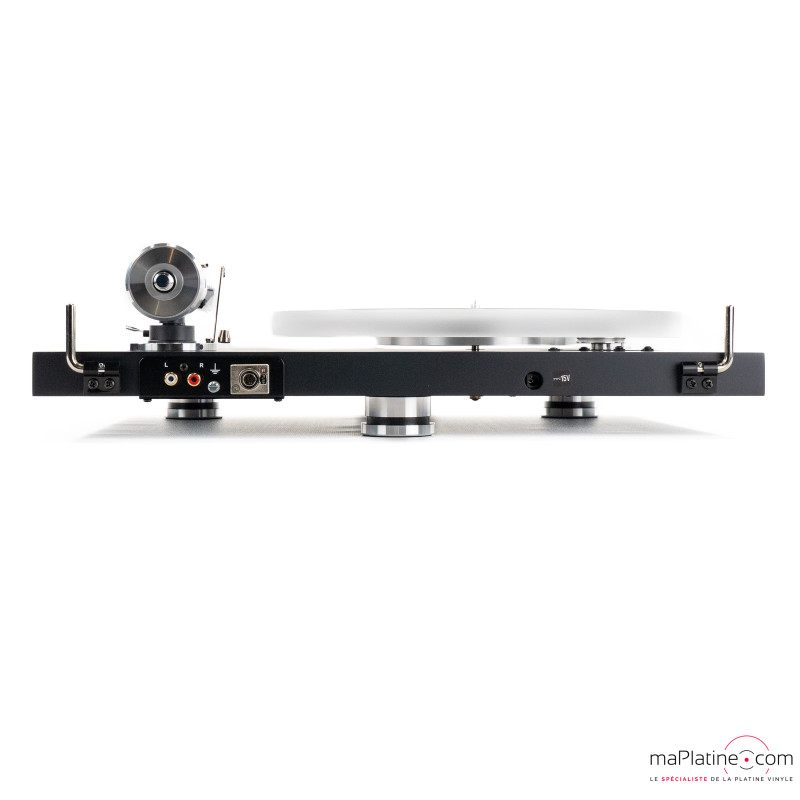

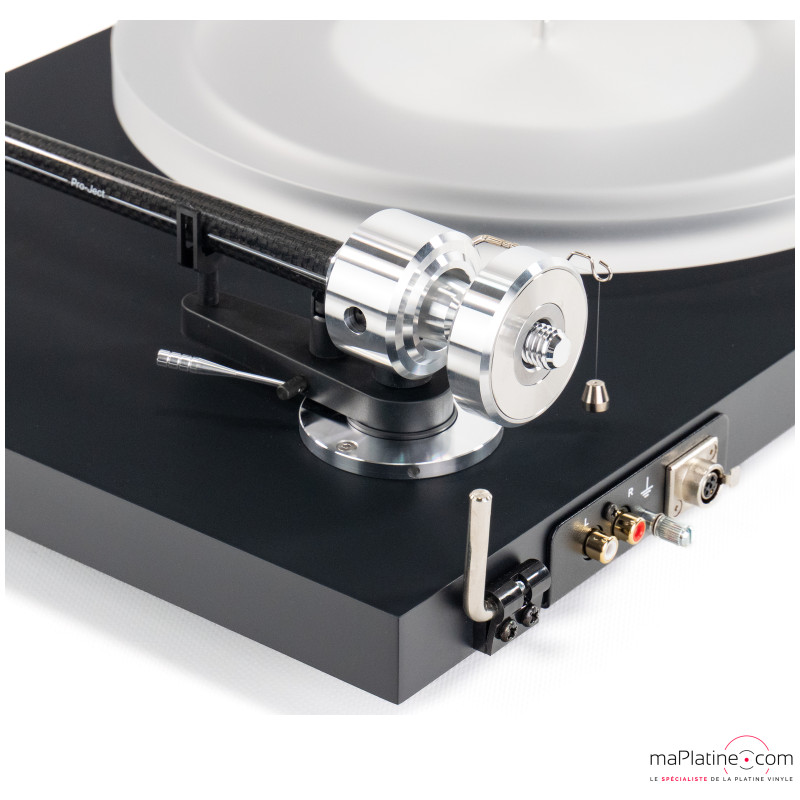

The "B" stands for "Balanced": in addition to the standard RCA outputs, the X1 B adds a balanced mini XLR output. Using it requires a specific Pro-Ject cable, a balanced phono preamp and an MC cartridge. In this pack, the turntable comes with an MM Pick It S2 cartridge and connects simply via RCA to the phono input of the Musical Fidelity A1 amplifier. The balanced output therefore remains an upgrade path, not a requirement for listening from the moment you receive it.
Does the turntable arrive adjusted, and can it be fine-tuned later?

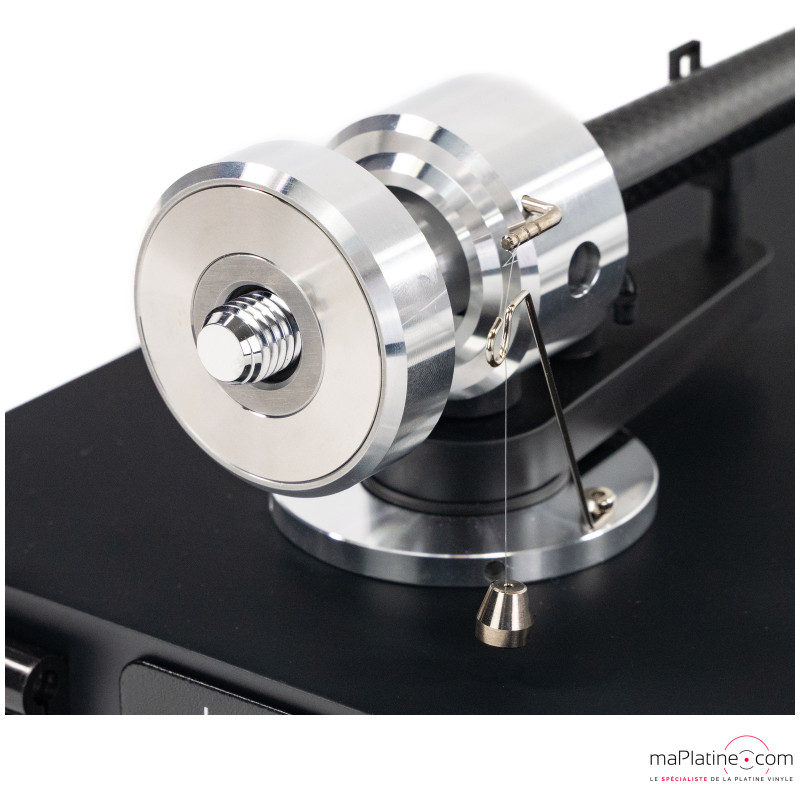

All our turntables are mounted, adjusted and tested in our workshop before shipping, whether sold on their own or in a pack. The X1 B is a strictly manual turntable offering full adjustments (tracking force, anti-skating, azimuth and VTA), which is rare in this range and allows fine-tuning or fitting other cartridges later.
What is special about the Musical Fidelity A1 amplifier, and is it suited to the pack's speakers?
The A1 is a legendary amplifier that runs in pure Class A: it delivers 25 watts per channel into 8 Ohms, but with a substantial current reserve (up to 25 A) that gives it surprising ease. The maker intends it for two-way speakers or floorstanders with a sensitivity above 88 dB, the ideal being a good two-way model in a room of about 20 m². The pack's Sonus Faber Lumina II, a two-way bookshelf design, fits squarely within that scope. In listening, the A1 charms with its smoothness, fluidity and timbre quality, close to a tube amplifier. Note: running in Class A, it gets noticeably warm, its casing itself acting as a heatsink.
Is a separate phono preamp needed, and are these speakers easy to position and wire?
No separate preamp in this pack: the A1 includes a discrete-component phono stage with an MM/MC selector, to which the turntable connects directly. The Lumina II is a compact speaker that is very easy to place, ideal in medium-sized or more confined spaces; placed on rigid stands between 60 and 90 cm, it delivers a fine three-dimensional soundstage. maPlatine.com gives you the speaker cables (2x3m) with gold-plated banana plugs to connect the speakers to the amplifier.
FranckPro-Ject X1 B turntable

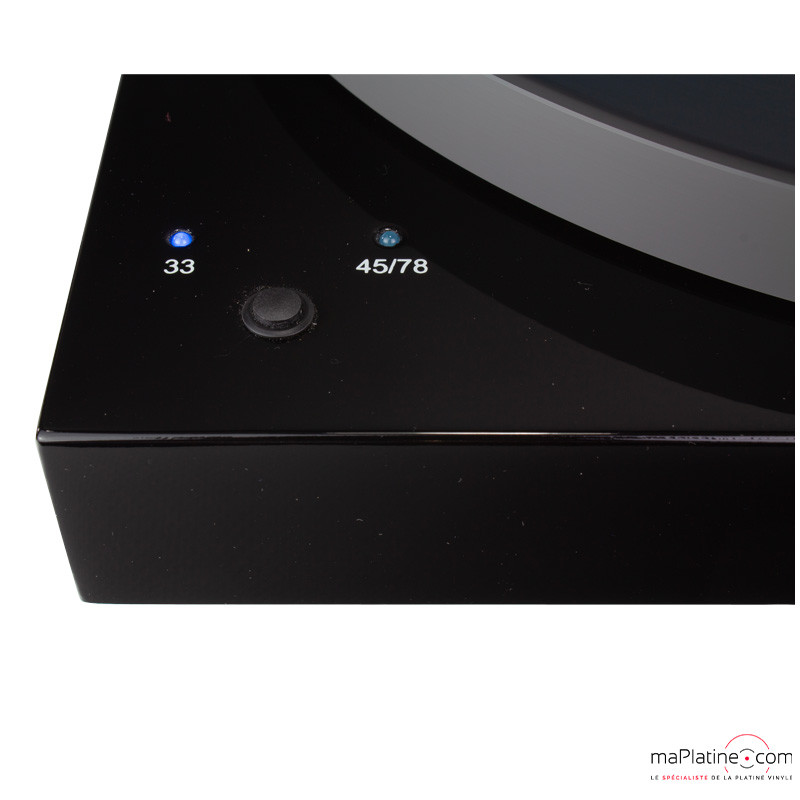

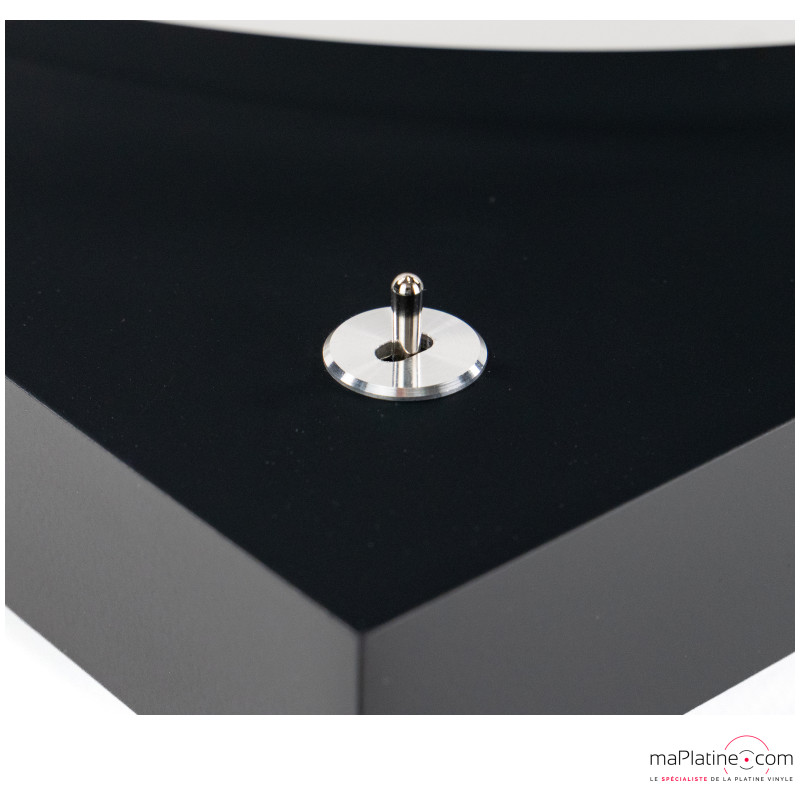

Speeds: 33t, 45t (electronic changeover), 78t (manual changeover)
Drive: belt
Speed accuracy: 33: ± 0.30% , 45: ± 0.25
Flutter and flicker: 33: ± 0.15% , 45: ± 0.13
Shaft/bearing: stainless steel and brass
Plate diameter: 300 mm
Platter thickness: 20 mm
Platter weight: 1.5 kg

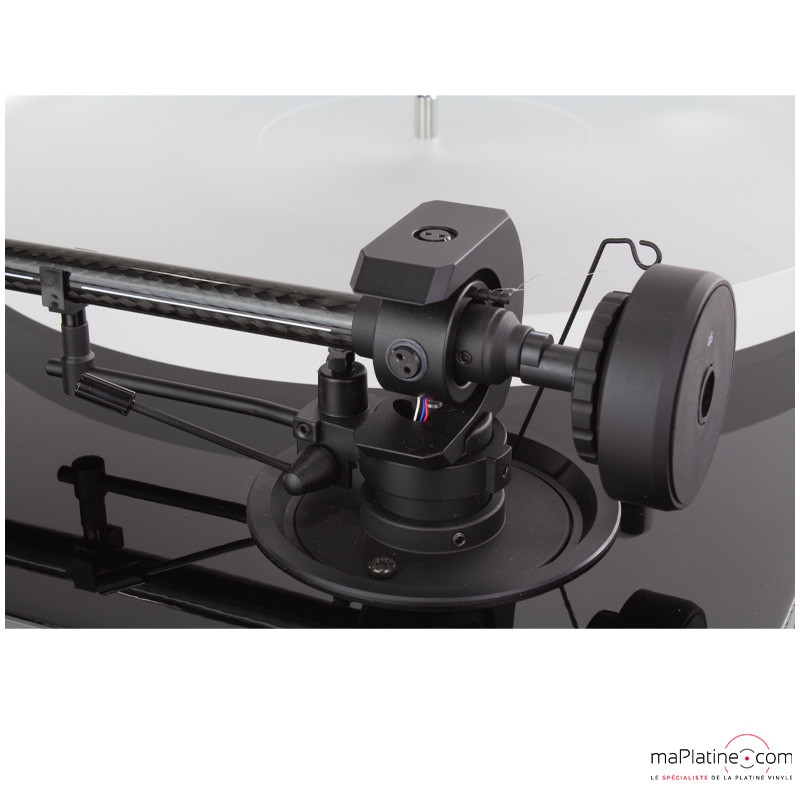

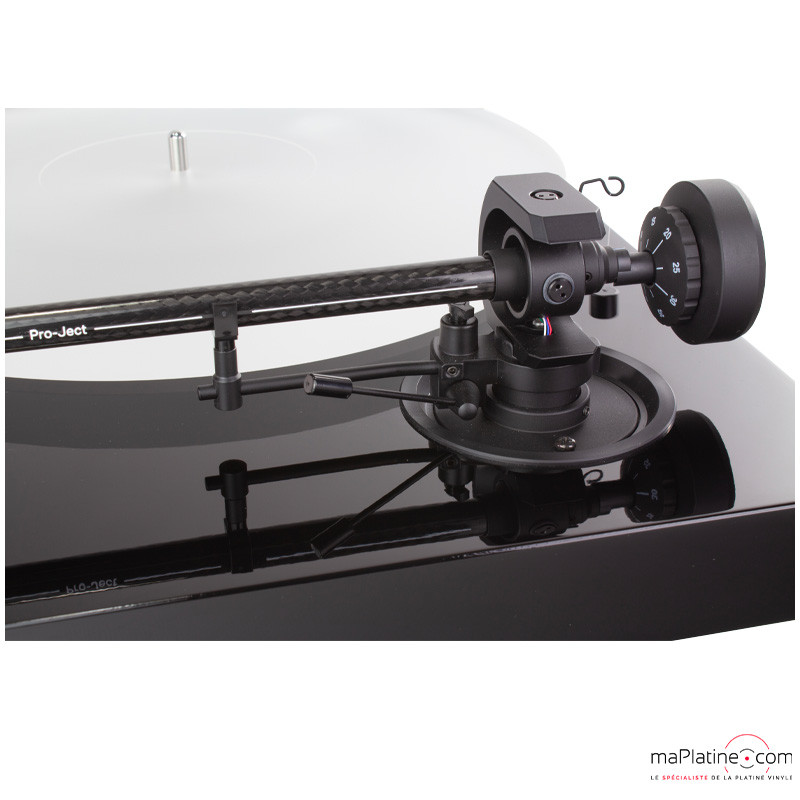

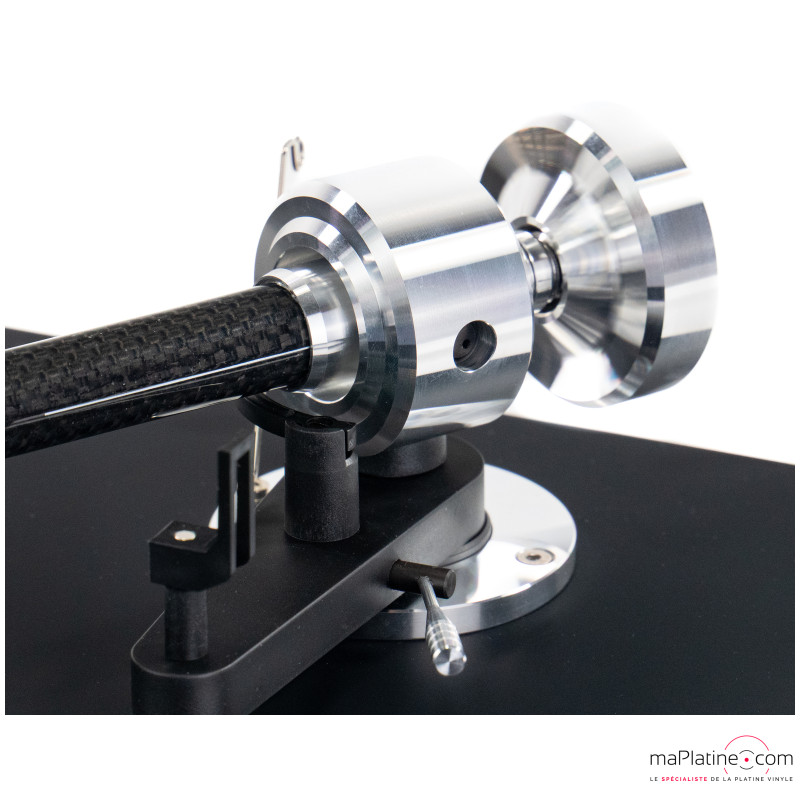

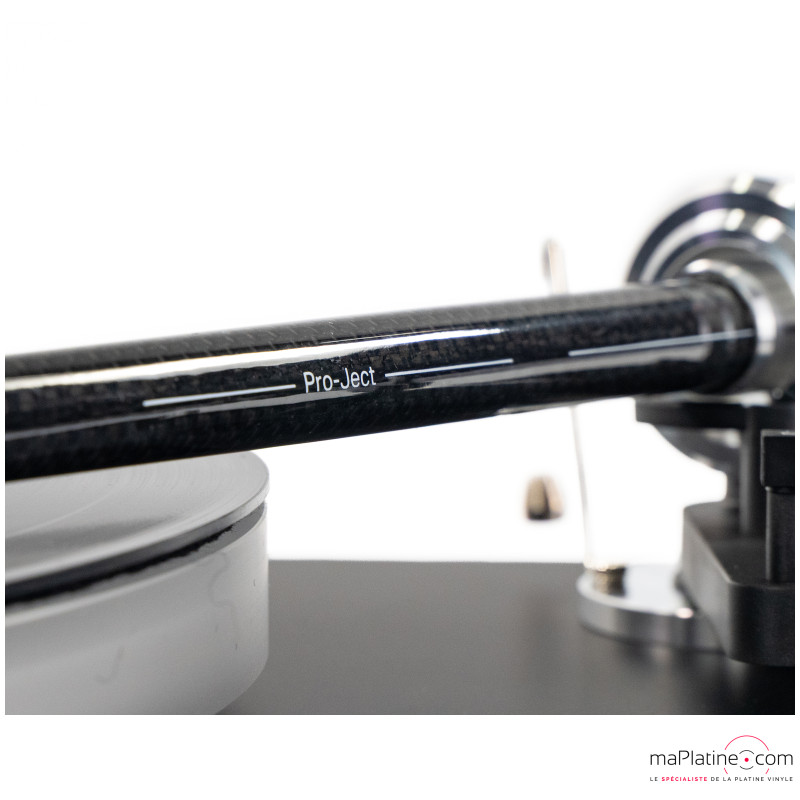

Arm: 8.6’ carbon/aluminium
Effective weight: 10g
Effective arm length: 218.5 mm
Compatible support forces: 10 - 30mN

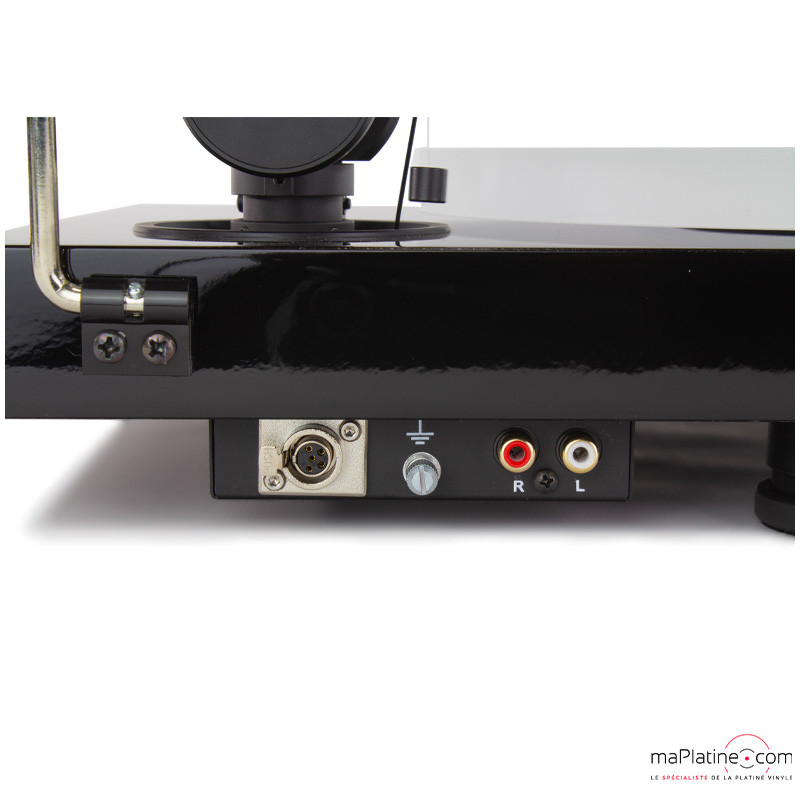

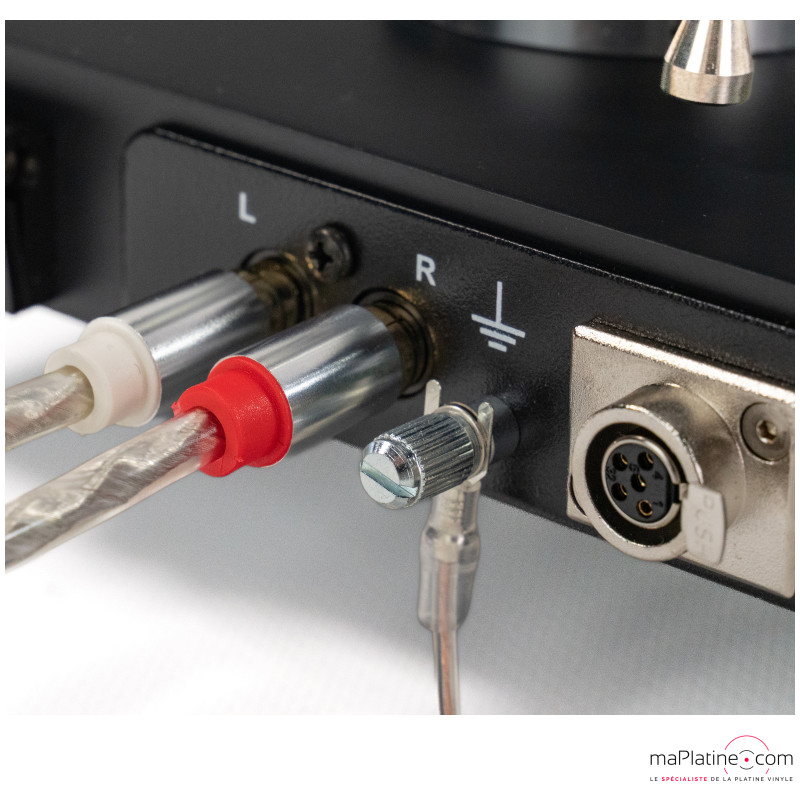

Outputs: RCA and Mini XLR Stereo

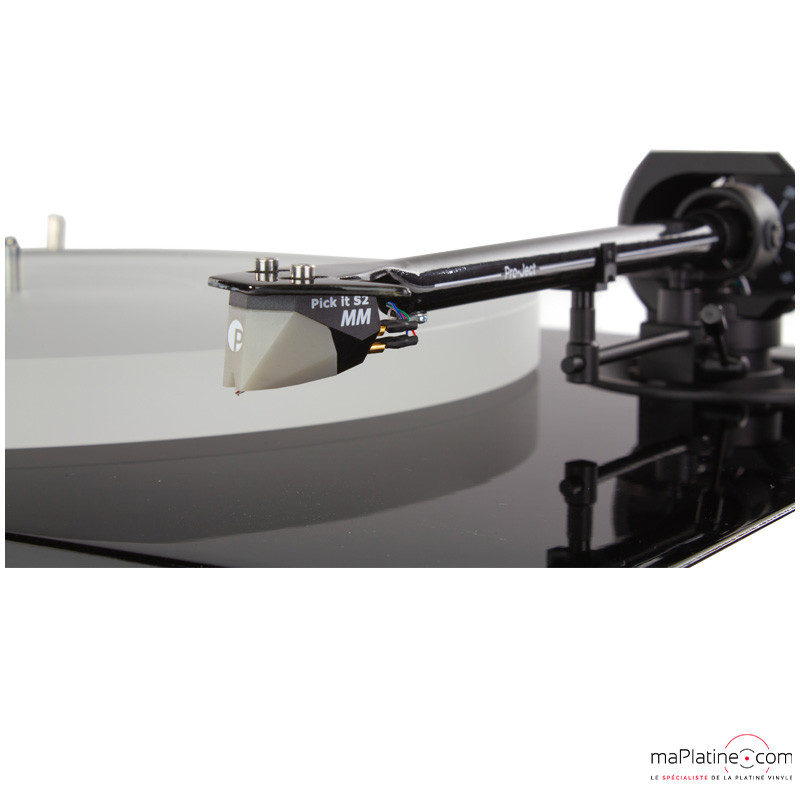

Cartridge: Pick It S2
Accessories included: cover, Connect It E phono cable, felt tray cover

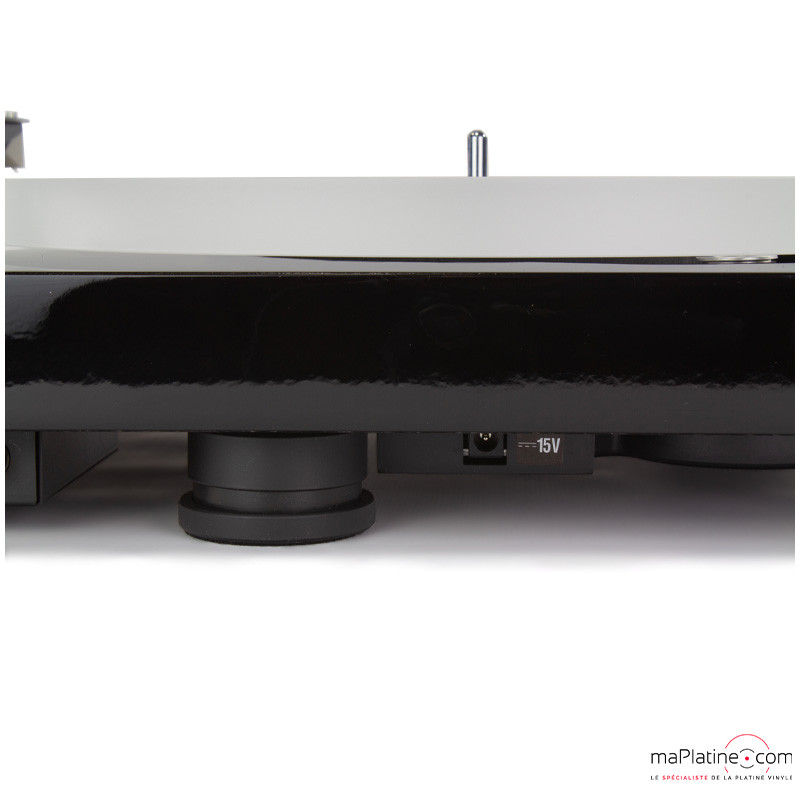

External power supply: 15 V DC/0.8A
Dimensions: 415 x 125 x 335 mm
Weight: 7 kg

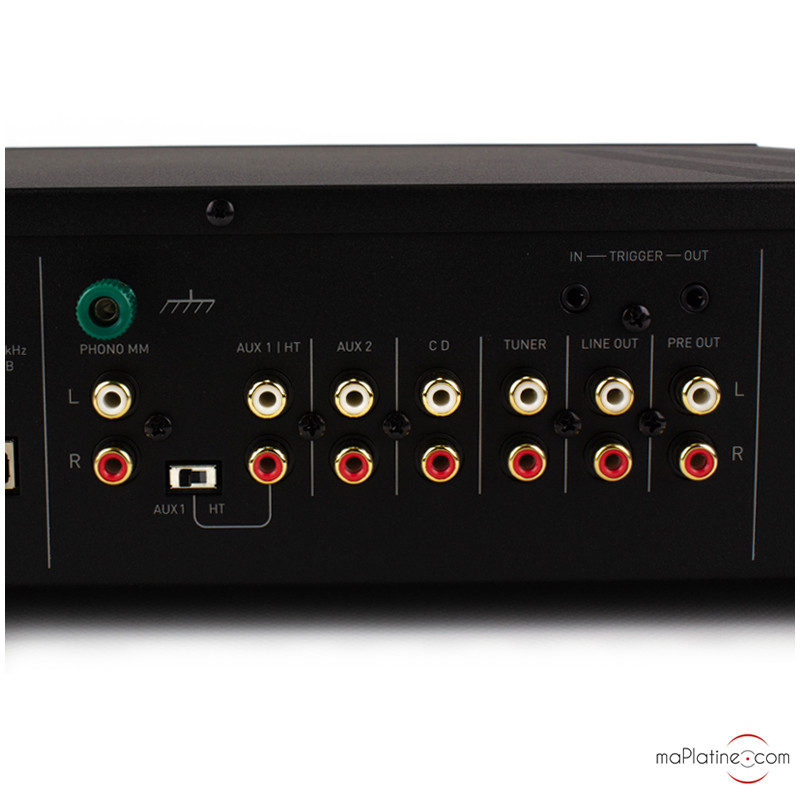

Musical Fidelity A1 integrated amplifier
Power: 25 Watts per channel into 8 Ohms
Voltage: 42.5 Volts peak-to-peak
Current: 25 amps peak-to-peak
Damping factor: 150
Gain (max volume): 32 dB (direct mode), 42 dB (normal mode)
Signal-to-noise ratio: 82 dB
Channel separation: 85 dB
Frequency response: +0, -1 dB, 10 Hz to 40 kHz
Line-level sensitivity: 300 mV rms nominal, 8 V rms max
Line-level input impedance: 25 kOhms
Full-range output impedance: 220 ohms
Pre-out impedance: 100 ohms
Phono input: MM and MC
Phono RIAA accuracy: ±1 dB
MM: 40 dB, 50 k-ohms, 100 pF
MC: 60 dB, 1 k
Tape output: 1
Pre-out output: 1
Speaker outputs: 4 mm banana plugs
Dimensions: 440 x 68.3 x 283.3 mm
Weight: 10.5 kg

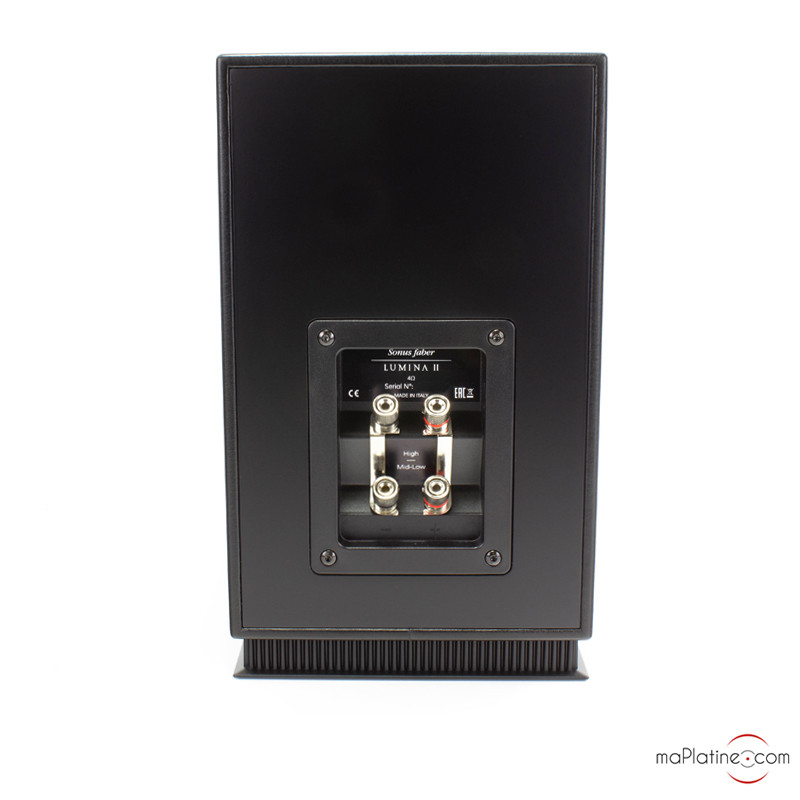

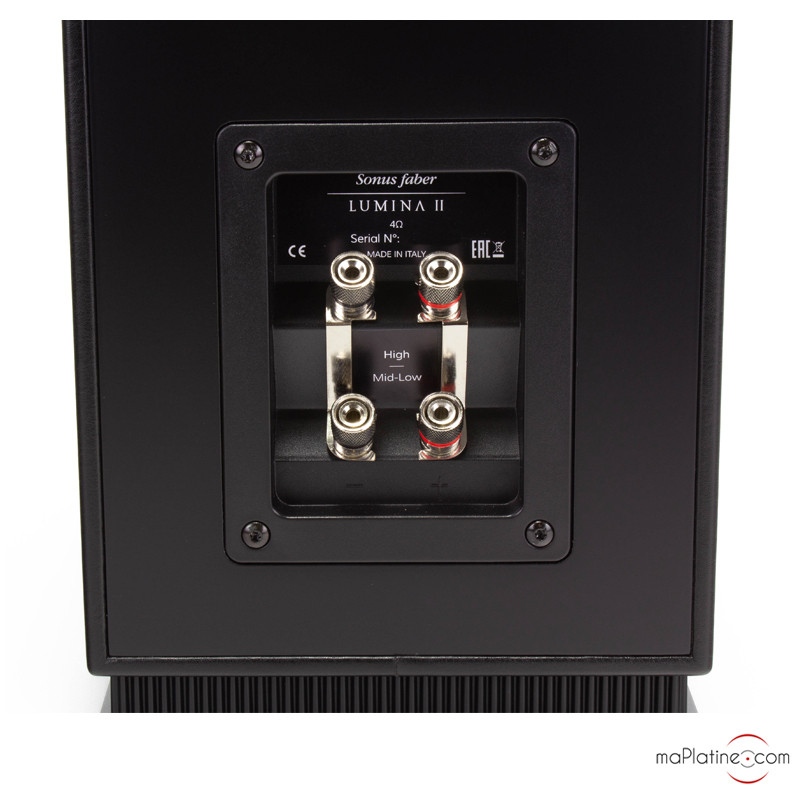

Sonus Faber Lumina II bookshelf speakers
Bookshelf speaker
Principle: 2-way
Bass/Reflex: Reflex Port

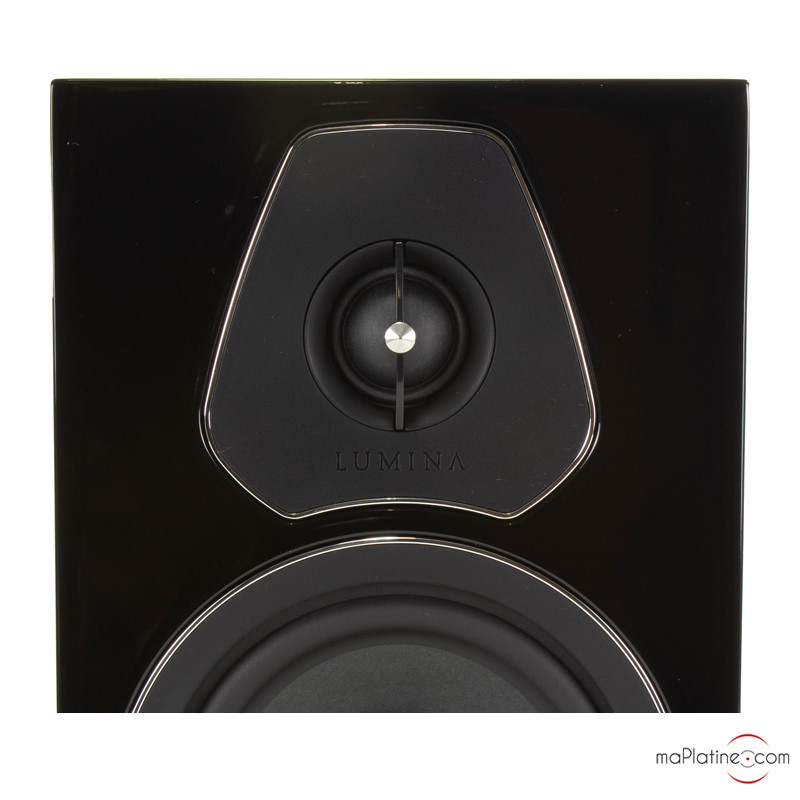

Tweeter: 1 x 29 mm DAD
Mid/bass: 1 x 150 mm MW15 PC
Bandwidth: 55-24,000 Hz
Crossover: 1800 Hz
Sensitivity: 86 dB SPL
Impedance: 4 ohms
Recommended power: 30 W - 100 W
Dimensions : 304 x 180 x 263 mm
Weight : 5.8 kg (each)
Speaker cables Real Cable CBV 130016
Length : 2 x 3m
Banana plugs: Multi-point 24k gold plating
Conductors: OFC 99.99
Architecture: HSCC braiding (Hight Spec Copper Conductor)
Section : 2.5mm2
Sheath : White PU
