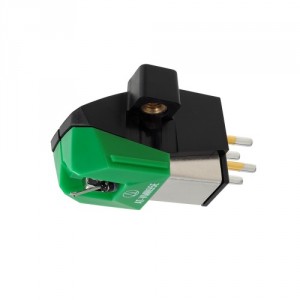

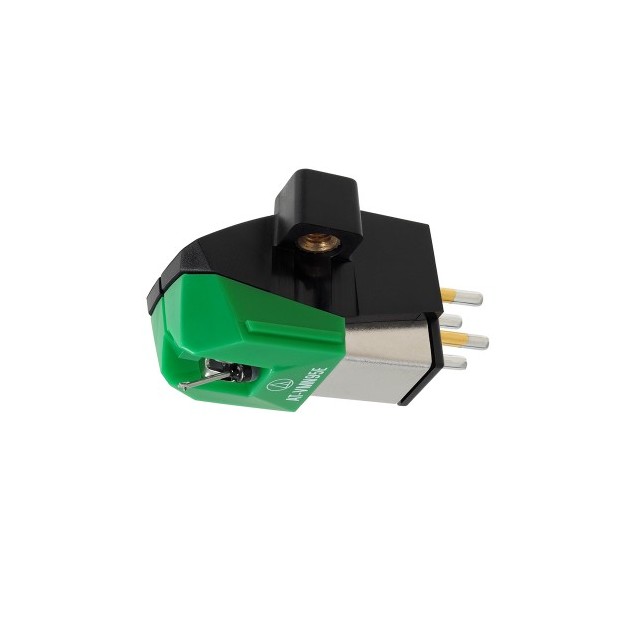

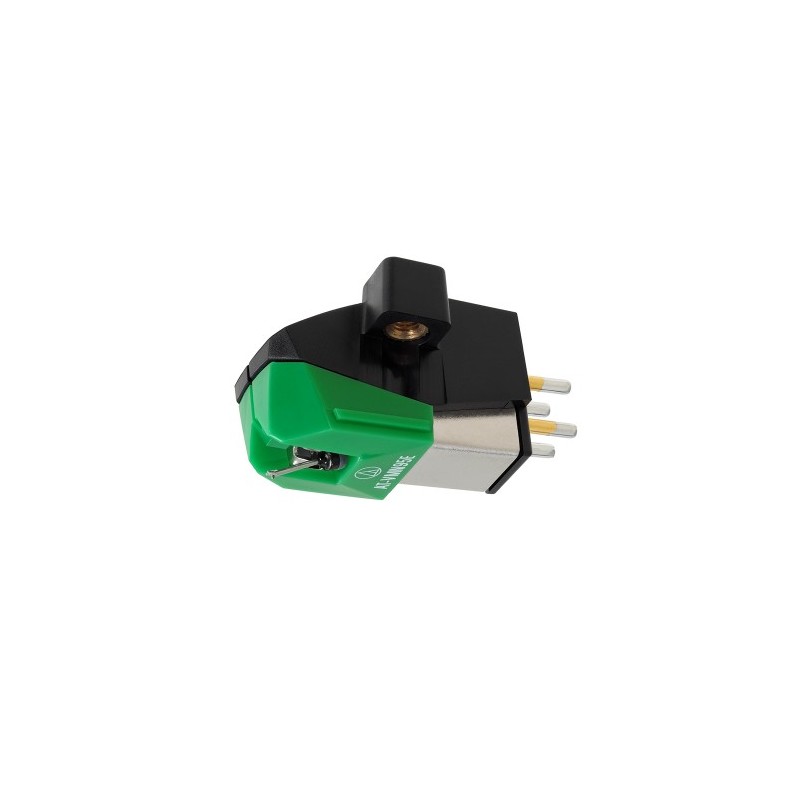

Audio Technica AT-VM95E MM cartridge

MM cartridge

Elliptical stylus

Know more

Manufacturer : AUDIO TECHNICA

49,00 €

In stock
Shipped within 3 to 5 working days Available within 1 or 2 weeks

+ -

MPLAUAU076

+ Wishlists

  • An attentive team

  • Quality products

  • Secure and fast shipping

  • No overcharged 3x payment from 1000€

Description

This new VM95 range from the Japanese manufacturer replaces all the entry-level cartridges from Audio Technica. The Audio Technica AT-VM95E cartridge replaces AT95e and AT95EX models.

AUDIO TECHNICA AT-VM95E: GENERATOR

The 6 proposed Hi-Fi cartridges models have the same generator.

It is composed of a copper coil unlike the VM 500 and 700 ranges having a dual coil generator.

To facilitate the mounting, the body is equipped with a brass threaded inserts that allows work without nut and offers an excellent tightening torque.

AUDIO TECHNICA AT-VM95E: STYLUS

The difference between the 6 cartridges of the VM95 range is their stylus which is identified by its color code. Of course, the reproduction quality and the price are justified following the quality and profile of the proposed diamond.

Here colored in green, it is an elliptical stylus. It aims to entry-level turntables without high quality tonearm and also to those who have a quite small budget.

AUDIO TECHNICA AT-VM95E: SPARE STYLUS

This Audio Technica AT-VM95E cartridge can be upgraded by changing the Audio Technica AT-VMN95E original stylus to the Audio Technica AT-VMN95EN, AT-VMN95ML or AT-VMN95SH stylus.

You can also add a 78 rpm stylus, the AT-VMN95SP model. Or two stylus for a DJ use : ATN-XP5 and ATN-XP7.

Franck

Model: AT-VM95E

VM type: stereo dual magnet

Frequency response: 20 - 22 000 Hz

Channel separation: 20 dB (1 kHz)

Channel balance: 2.0 dB (1 kHz)

Output voltage: 4.0 mV (at 1 kHz, 5 cm / s)

Vertical tracking angle: 23 °

Tracking force range: 1.8 g - 2.2 g

Recommended tracking force: 2.0 g

Stylus: Elliptical

Stylus size: 0.3 x 0.7 mil

Cantilever: aluminium

Coil impedance: 3.3 kΩ (1 kHz)

Coil inductance: 550 mH (1 kHz)

DC resistance: 485 Ω

Static compliance: 17 x 10 - 6 cm / dyne

Dynamic compliance: 6.5 x 10 - 6 cm / dyne (100 Hz)

Coils conductor: T.P copper

Recommended load impedance: 47 000 Ω

Recommended load capacity: 100-200 pF

Weight: 6.1g

Dimensions (H x W x D mm) : 17.2 x 18.9 x 28.3

Spare stylus: AT-VMN95E
