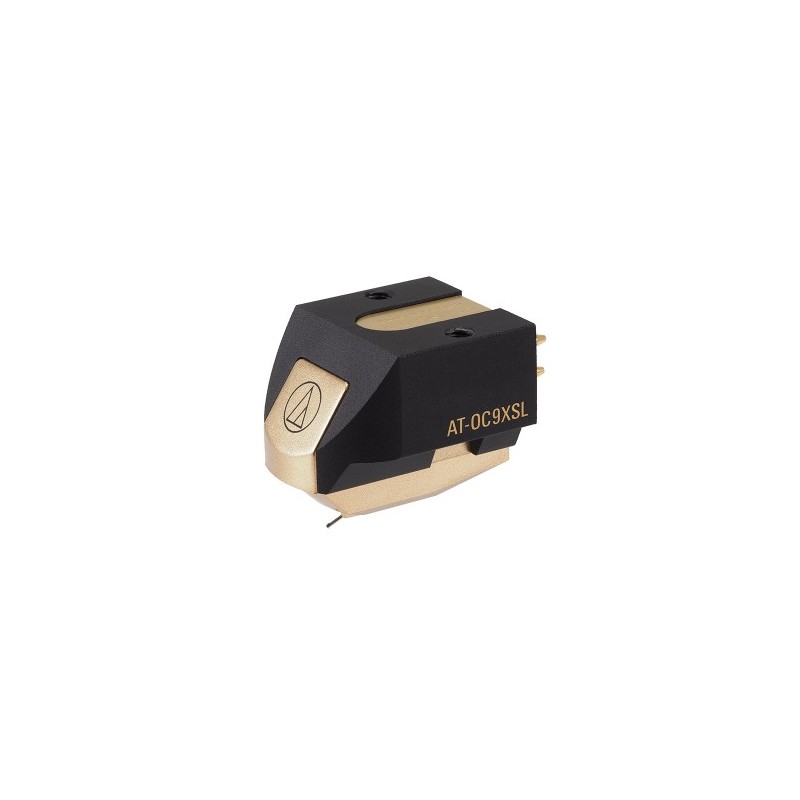

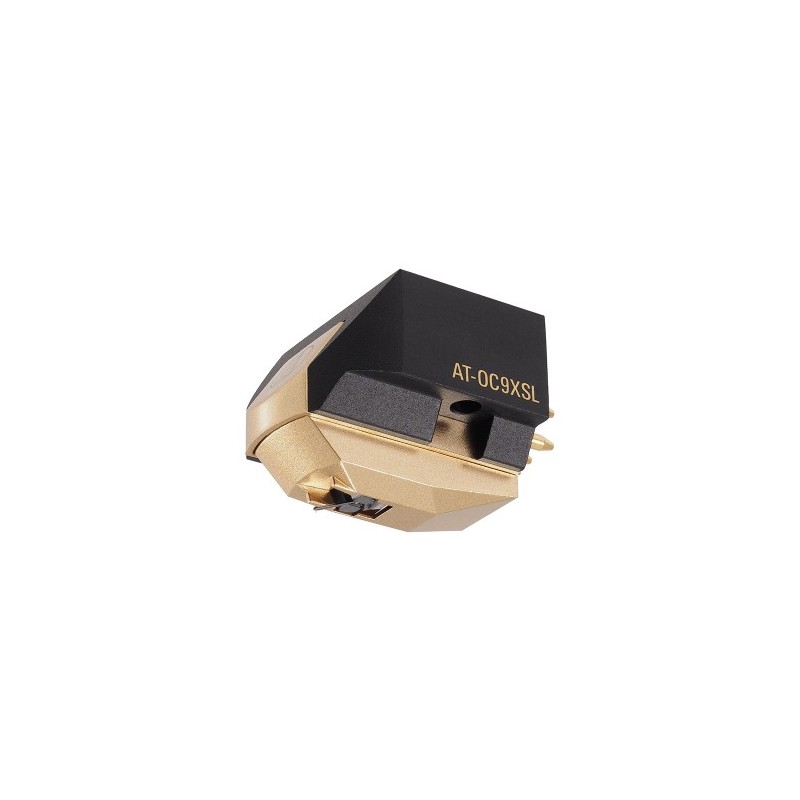

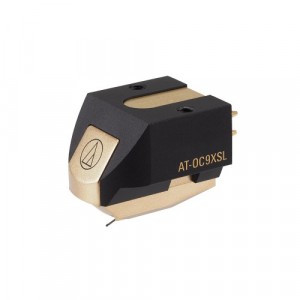

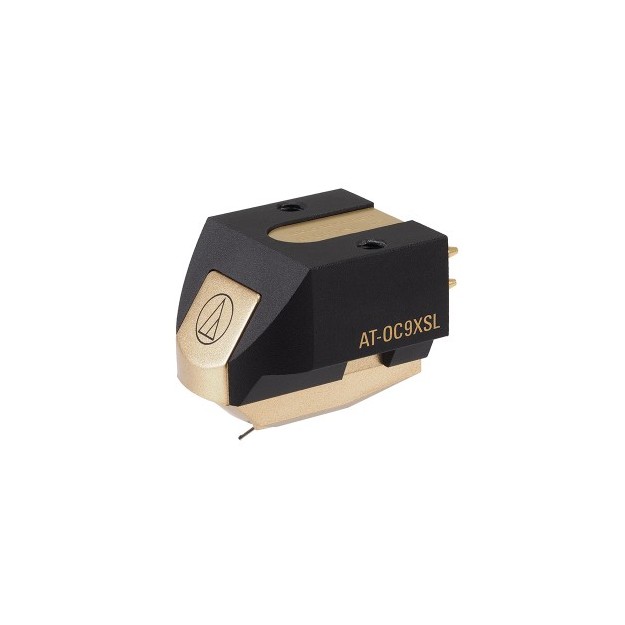

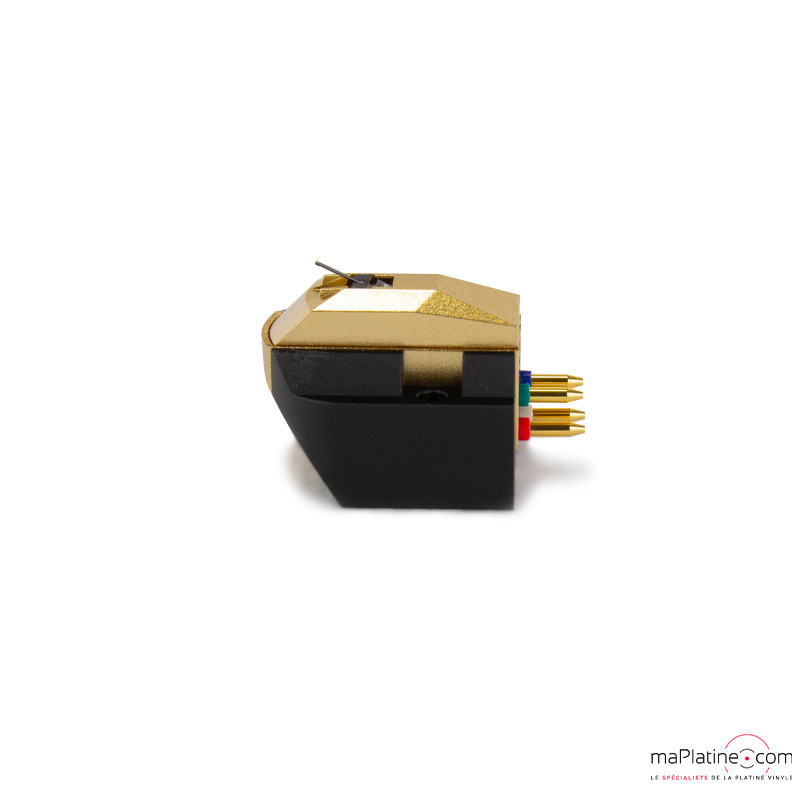

Audio Technica AT-OC9XSL MC cartridge

Low output MC cartridge

Special Line Contact stylus

Made in Japan

Know more

Manufacturer : AUDIO TECHNICA

799,00 €

In stock
Shipped within 3 to 5 working days Available within 1 or 2 weeks

+ -

MPLAUAU101

Need help ?
  • An attentive team

  • Quality products

  • Secure and fast shipping

  • No overcharged 3x payment from 1000€

Description

Audio Technica's OC-9 series has been operating with undiminished success for over thirty years. After many years, it is still a reference for several music lovers, professionals and journalists across the world!

Motivated by the analogue come back, the Japanese manufacturer launches the 4th generation of the OC-9 series, represented by 5 low output MC cartridges.

The Audio Technica AT-OC9XSL MC cartridge is the fifth and last model of the new range.

AUDIO TECHNICA AT-OC9XSL: BODY AND COILS

The body of the phono cartridge is cut into very strong aluminium that reduces unwanted resonances.

The AT-OC9 “X” cartridges are all composed around a generator equipped with a high quality double coil made of copper (PCOCC). This very pure copper ensures a signal without distortion and few coloration.

The structure of the moving coils offers a large frequency response as well as an excellent left/right channel separation, which enables excellent stereo image.

The AT-OC9XSL is equipped with Permendur yoke to improve the magnetic energy of the magnets made of neodymium. These magnets provide an important magnetic field of excellent quality.

AUDIO TECHNICA AT-OC9XSL: STYLUS

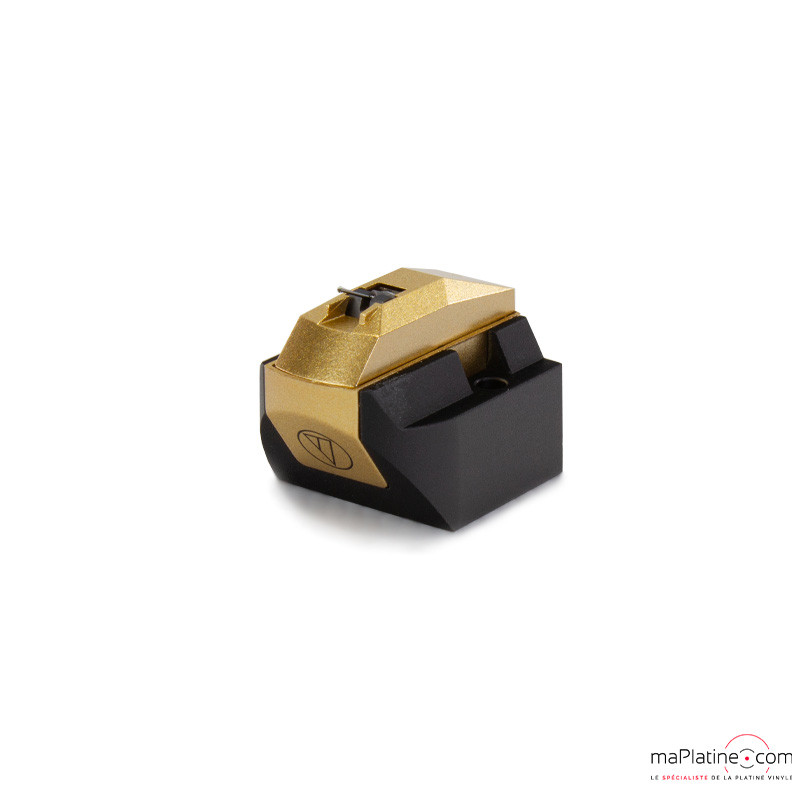

The AT-OC9XSL cartridge is equipped with a Special Line Contact stylus. It has a low mass and is associated to a boron cantilever.

This stylus with a complex profile follows the modulation of the groove with higher precision than a basic elliptical stylus. It offers a higher frequency response, while reducing surface noises and distortion in high frequencies.

AUDIO TECHNICA AT-OC9XSL: ASSEMBLY AND COMPATIBILITY

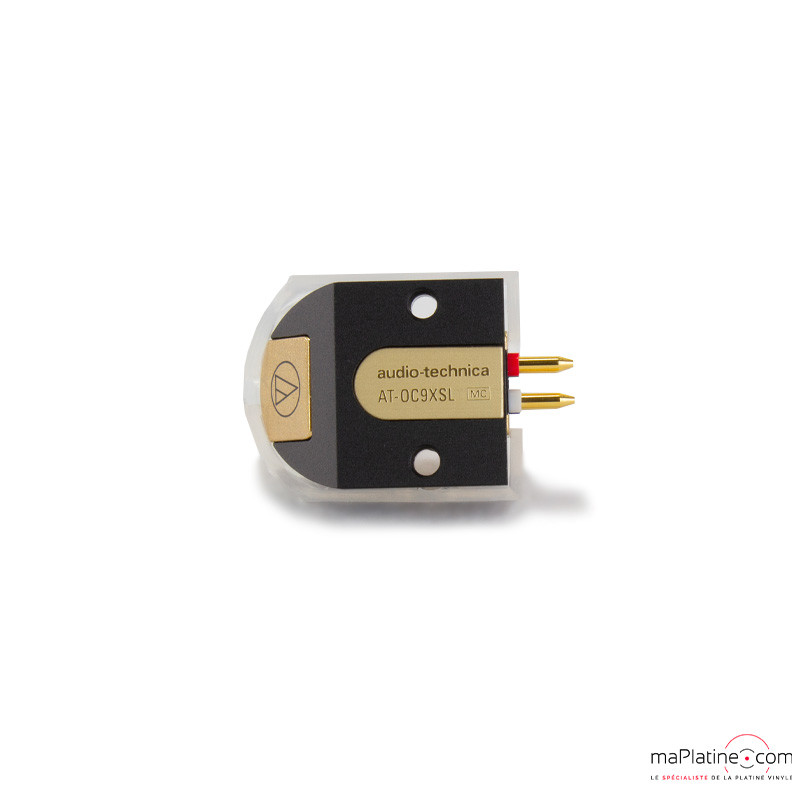

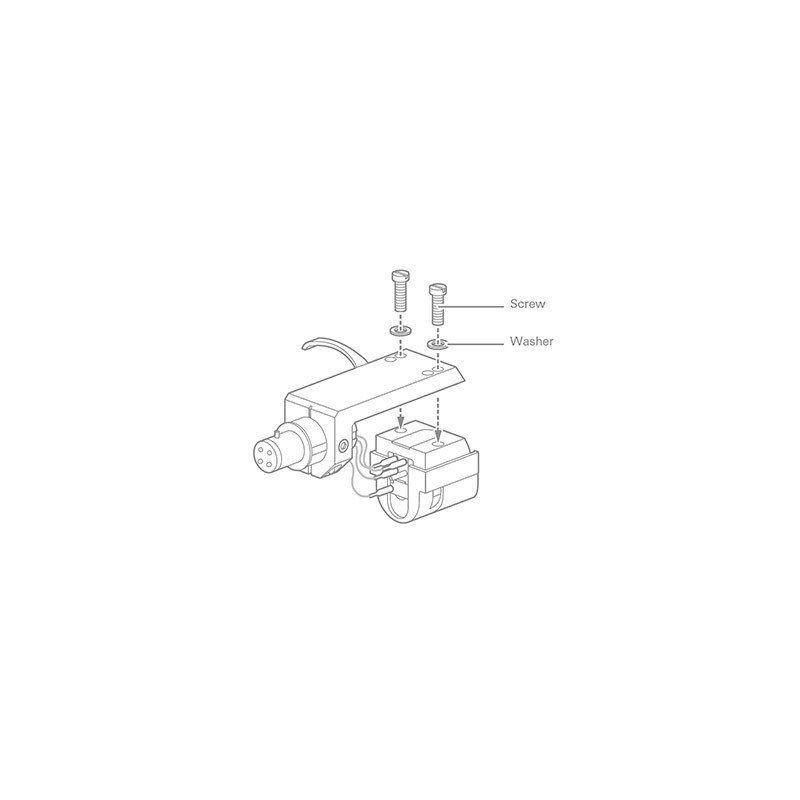

To facilitate the assembly on the headshell, the AT-OC9XSL has a body equipped with threaded inserts.

This has a true mechanical advantage, but it makes this phono cartridge incompatible with bottom-mount headshells, such as the old Thorens or Lenco turntables.

Its weight and its rather high compliance make this Audio Technica AT-OC9XSH adapted for medium and low weight tonearms.

Its output level requires a MC phono preamp having a minimum of 62 dB gain and 100 ohms load. This is the stylus mounted on the ART1000 cartridge of the Japanese manufacturer.

AUDIO TECHNICA AT-OC9XSL: TEST AND LISTENING

The restitution offered by this AT-OC9XSL cartridge is very precise and detailed. It demonstrates a real feeling of space and realism, whatever the style of music listened to.

Note that it is on the orchestral masses that this moving coil cartridge shows all its potential!

The tonal balance is excellent.

The reproduction is rich and very informative all over the bandwidth. Furthermore, there is a very realistic transient response that gives a rhythmical, fast and articulated listening.

All this without forget the nuance and subtlety that seems to be the "strong point" of this Audio Technica cartridge.

The absence of surface noise and distortion makes it possible to highlight a treble and the mid-range of great precision and accuracy.

The bass is very transparent and precise. It goes very low continuously, with definition and articulation, as it is the case on the whole OC9 range.

This AT-OC9XSL cartridge is one of the most performing low output MC cartridge from Audio Technica.

It totally meets the expectations of even the music lover! Mainly for Classical music lovers who are looking for perfect mastery of the placement of the orchestra, and the precision of the instruments precision.

Highly recommended!

Franck

Assembly: 1/2” with threaded inserts

Frequency response: 20 - 50 000 Hz

Body: aluminium

Channel separation: 28 dB (1 kHz)

Channel balance: 0.5 dB (1 kHz)

Output voltage: 0.4 mV (at 1 kHz, 5 cm / s)

Vertical tracking angle: 20°

Tracking force range: 1.8 to 2.2 g

Recommended tracking force: 2.0 g

Stylus: Special Line Contact

Stylus profile: 1.5 x 0.28 mil

Cantilever: boron tube, 0.28 mm diameter

Coil impedance: 12 Ohms (1 kHz)

Coil inductance: 25 μH (1 kHz)

Static compliance: 20 x 10 - 6 cm / dyne

Compliance: 16 x 10 - 6 cm / dyne (100 Hz)

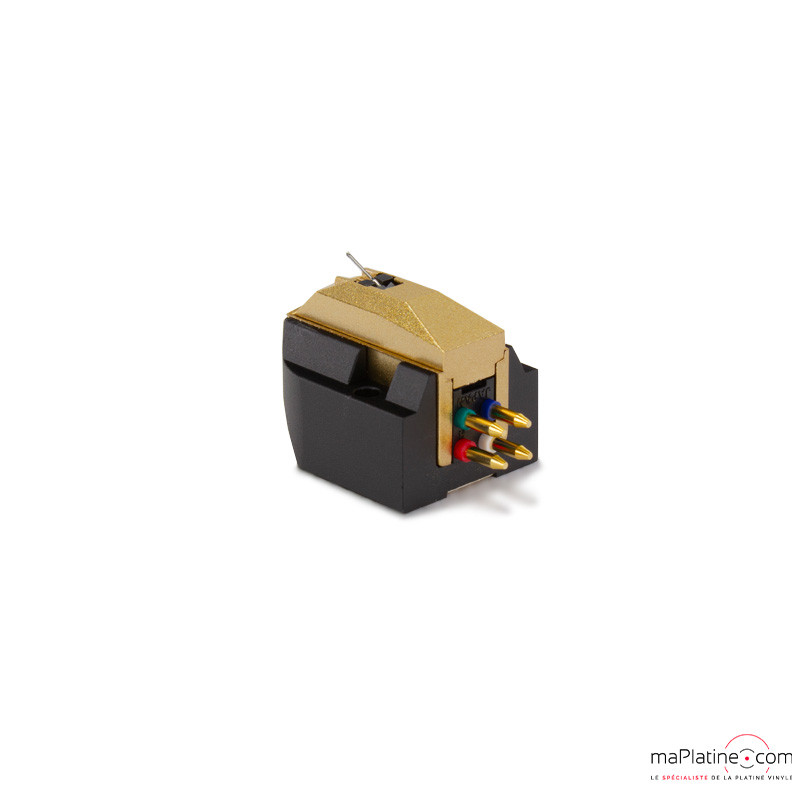

Terminal screws: brass Coils: PCOCC copper (Pure Copper by Ohno Continuous Casting)

Recommended load impedance: Minimum 100 Ohms

Weight: 7.6 g

Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (D) mm

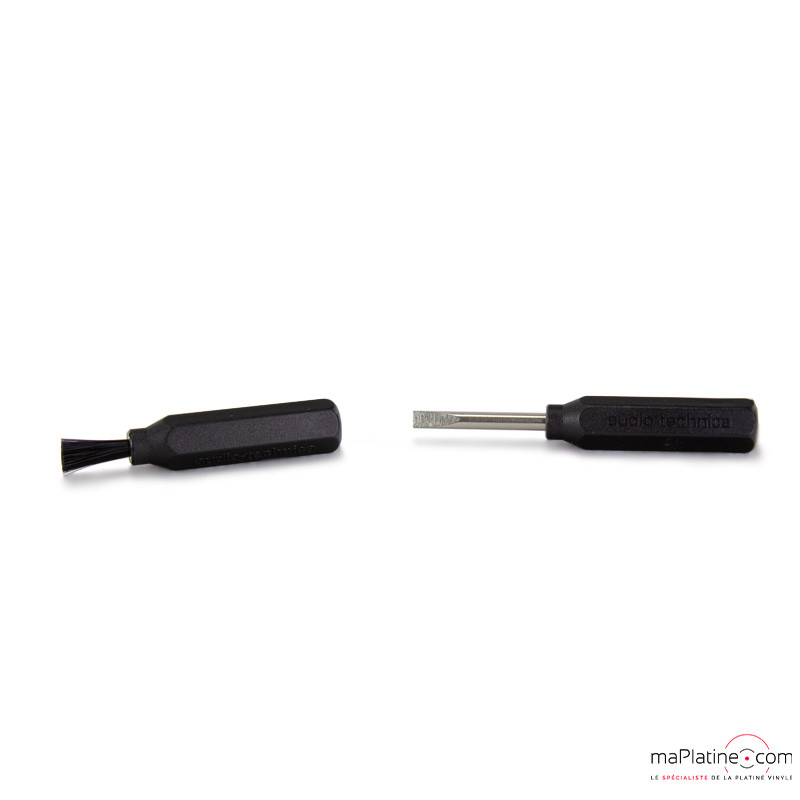

Included accessories: 1 screwdriver, 1 brush, 4 pairs of mounting screws (5, 8, 10, 12 mm)

Customer reviews
(1 review)

Customer reviews

5/5
07/08/2022

Pourquoi aucun avis ?

J'ai attendu environ 50 heures de fonctionnement pour poster l'avis
J'ai acheté cette cellule en remplacement d'une Hana ML en fin de vie. n'ayant pas la possibilité financièrement parlant de reprendre l'Hana ML je me suis tourné sur cette AT OC9XSL et je dois avouer que je suis agréablement surpris ! Monté sur une P6 je dirai que le mariage est bon ! Avec le disque The Ultimate Pickup Test Record la cellule décroche du sillon à 80 microns, là où l'hana décrochée à 70 microns. Sur le test de résonance j'avais sur l Hana une distorsion sur les 10 et 12 Hertz alors que l'AT passe toutes les fréquences sans aucun problème (attention l'Hana était en fin de vie lors du test !) Maintenant parlons du son !!! c'est bien cela qui nous voulons voir !
Au global tout est à sa place, les aigus, les médiums sont très beau, pour moi les graves sont plus présent que sur L'Hana ML. Le rapport qualité prix est très bon.
Alors, me direz vous, pourquoi acheter une Hana si l'AT est aussi bonne ? Je ne dirais pas cela, l'Hana fouille un peu plus les sillons (même si l'AT fait très bien le job). L'AT est moins jolie aussi par rapport à l'Hana monté sur la platine. Voila... fallait bien trouver des points négatifs pour la différence de prix.
Attention sur la P6 il vous faut la cale de 2 MM tout comme l'Hana ML d'ailleurs !
Merci à Franck pour sa disponibilité et sa patience, service au top comme toujours !
