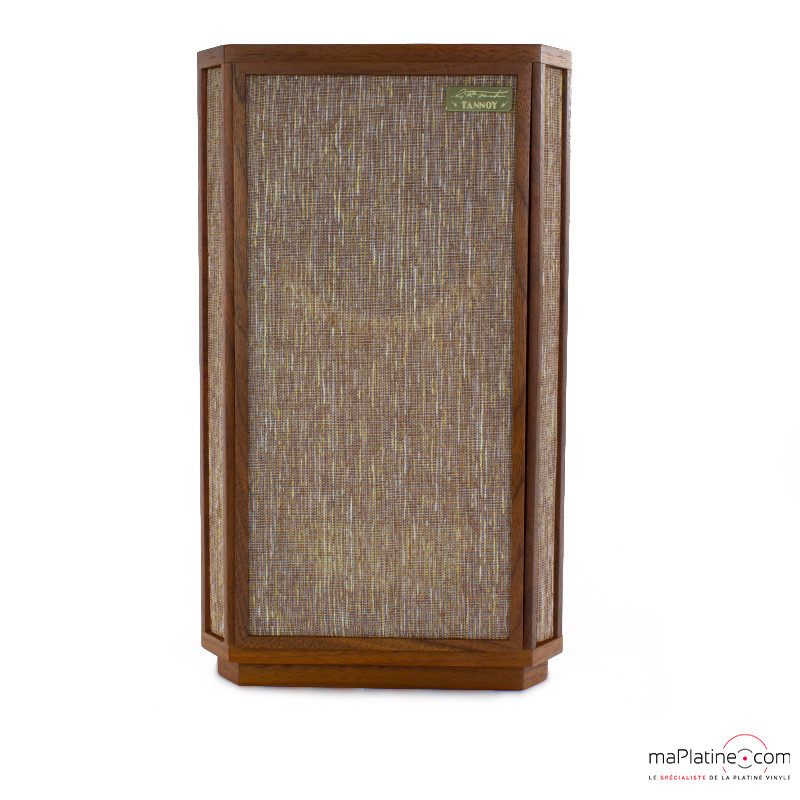

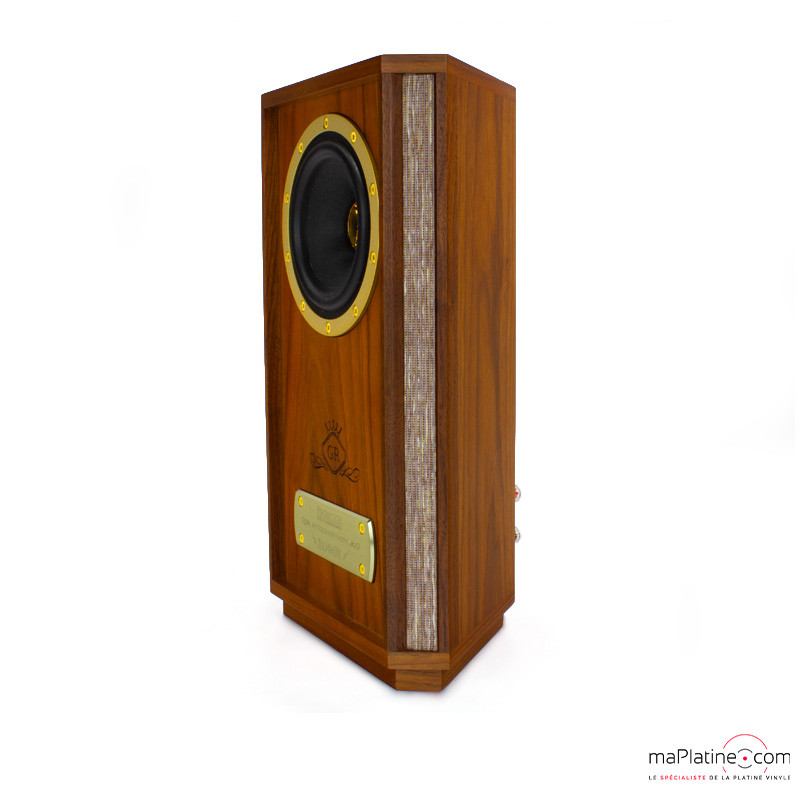

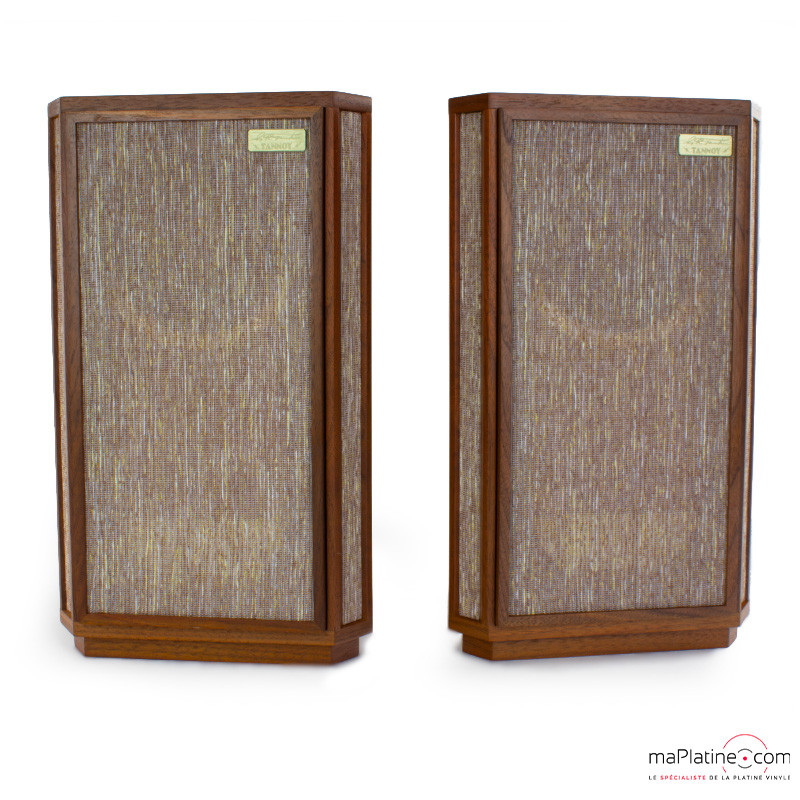

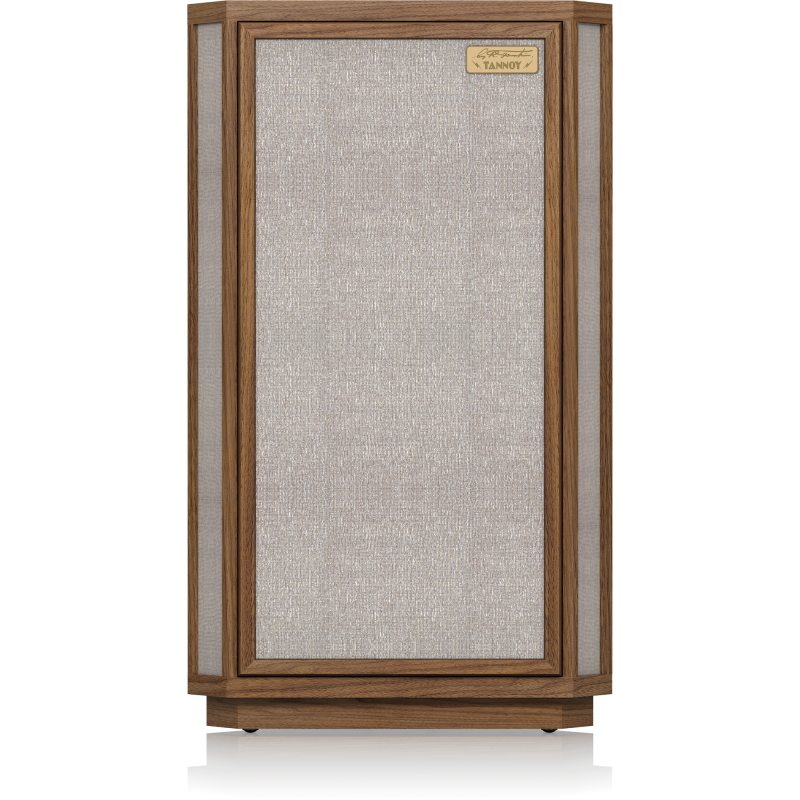

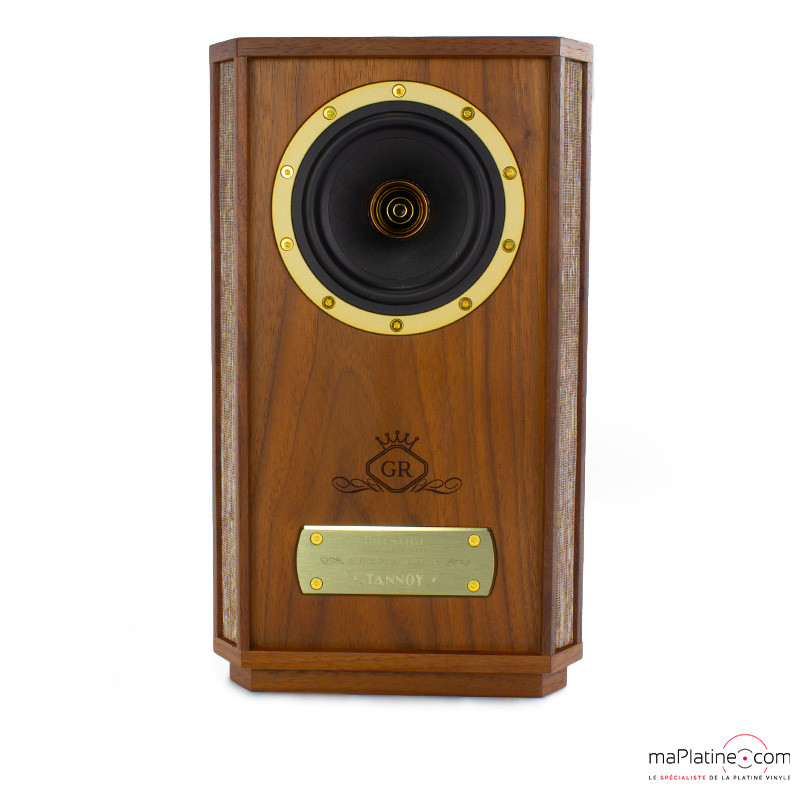

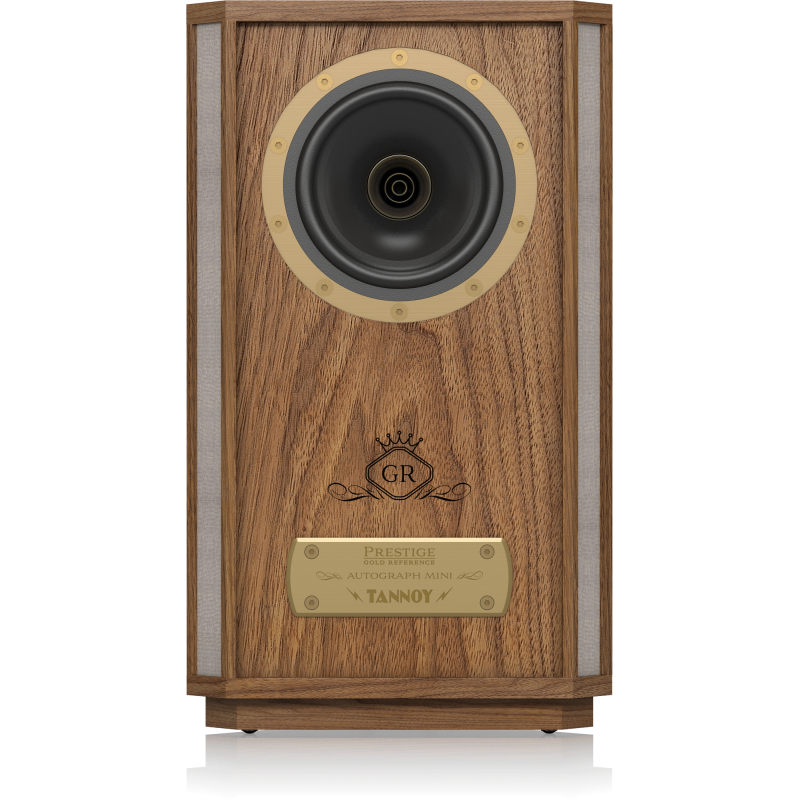

Tannoy Autograph Mini-OW bookshelf speaker

The Tannoy Autograph Mini-Ow Hi-Fi speaker is a miniature yet authentic reproduction of the famous Tannoy Autograph design from the 1950s.

The two-way concentric Hi-Fi speaker, double 4" Autograph Mini-Ow, delivers incredible performance for its small size.

TANNOY AUTOGRAPH MINI OW: DESIGN

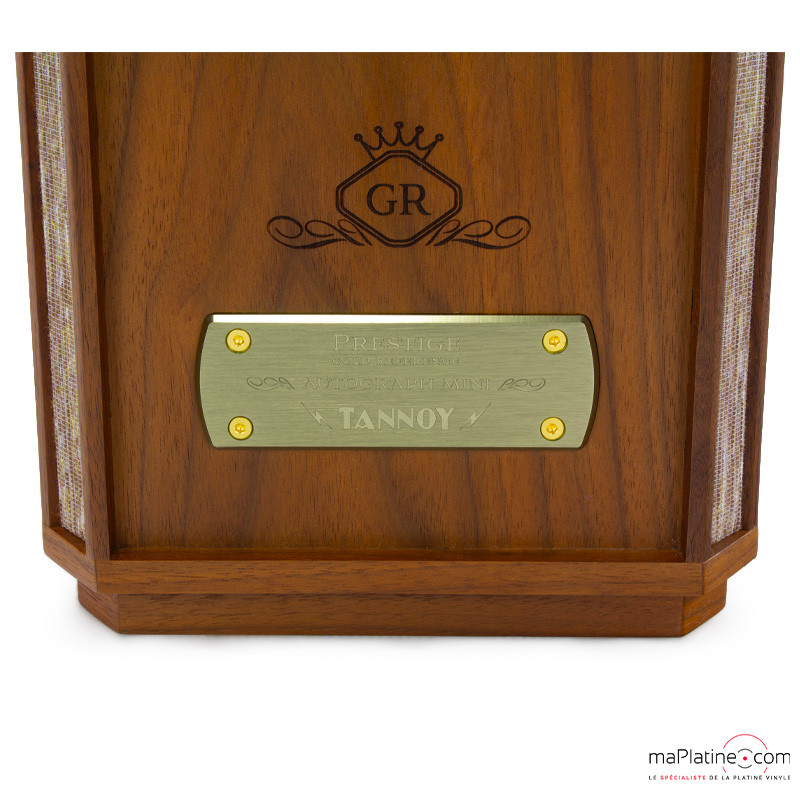

It features a handcrafted oiled walnut cabinet with solid walnut trim, offering an original and timeless design.

The high-density wooden enclosure provides extreme rigidity to control bass performance and minimize midrange coloration.

TANNOY AUTOGRAPH MINI OW: SPEAKERS

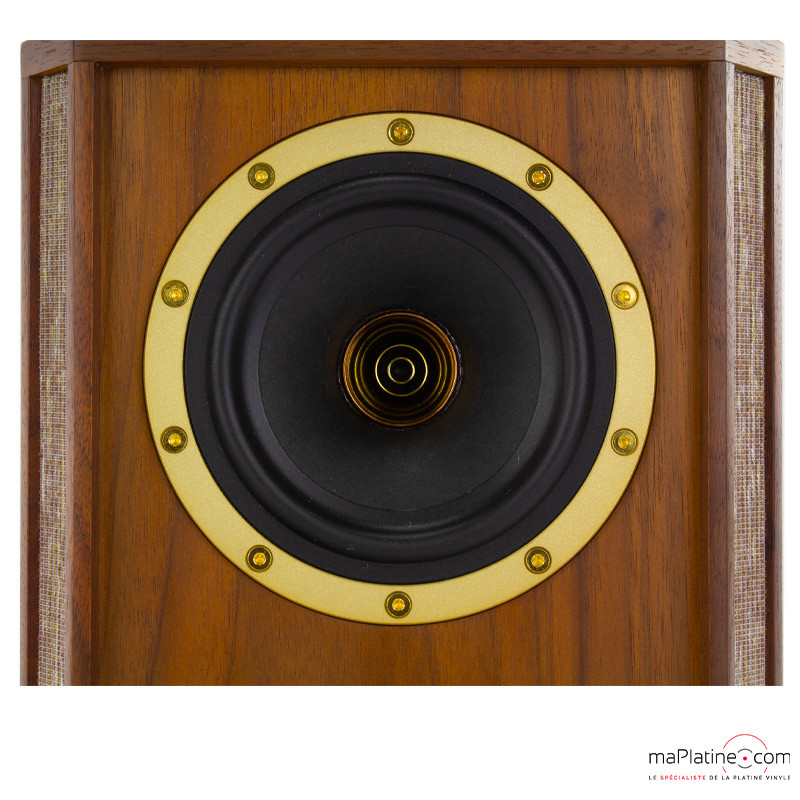

The Tannoy Autograph Mini-Ow houses a new evolution of the legendary Tannoy Dual Concentric Driver. The new 4" Dual Concentric driver offers improved dispersion with more uniform sound distribution in the listening environment.

The Omnimagnet technology has been added, allowing the tweeter to be placed closer to the acoustic center of the low-frequency unit, significantly improving time alignment between drivers.

The 4-inch driver handles a maximum power of 200 Watts, delivering remarkable dynamics for such a small speaker.

The cellulose membrane is equipped with a rubber suspension, enabling natural midrange sound and excellent bass extension.

The tweeter features a Tulip waveguide with symmetrical dispersion, enhancing the soundstage and precision.

This 19 mm titanium dome tweeter offers exceptional clarity and articulation in the high frequencies.

TANNOY AUTOGRAPH MINI OW: TECHNOLOGY

Hand-wired crossover features exclusive Tannoy capacitors and low-loss laminated core inductors, providing a more natural and coherent sound.

Low-resistance internal wiring maximizes signal transparency.

Specific internal damping panels minimize dynamic loss and internal coloration.

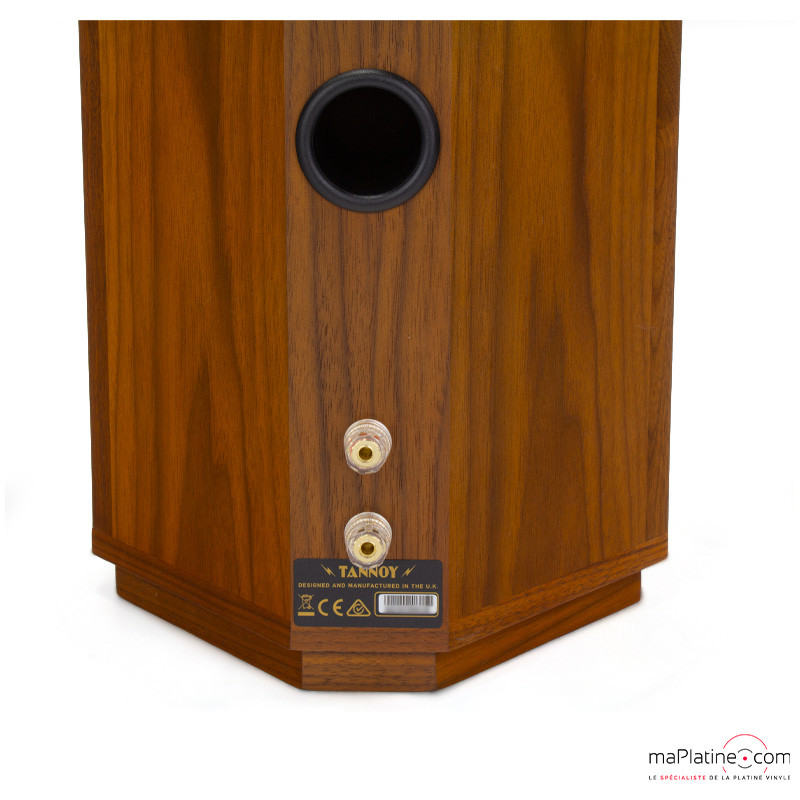

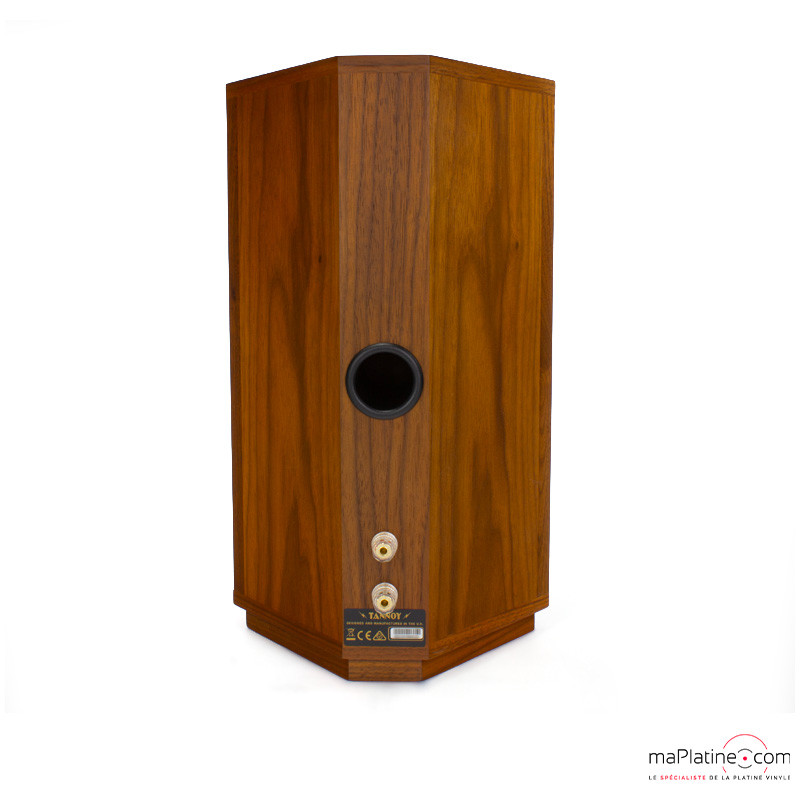

It features a Bass Reflex type enclosure with a rear-firing port.

Speaker cable connection is via a single gold-plated terminal accepting banana plugs.

TANNOY AUTOGRAPH MINI OW: INSTALLATION

These two-way speakers are designed to be placed between 50 cm and 1 meter high, ideal for smaller rooms ranging from 9 to 18 square meters. Their efficiency requires pairing with a minimum 50W transistor amplifier or a minimum 30W tube amplifier.

TANNOY AUTOGRAPH MINI OW: TESTING AND LISTENING

The Tannoy Autograph Mini-Ow bookshelf speakers offer remarkable coherence and consistency. The soundstage and depth they provide are fabulous!

When properly driven, these Tannoys deliver breathtaking dynamics and surprising transient response, reproducing music with incredible realism for their size.

It's worth noting the remarkable texture and delicacy of the tones.

While they may be limited in bass, adding a subwoofer like the REL T/5x is always an option.

The Tannoy Mini Autograph-Ow speakers boast exceptional design and craftsmanship. Their compact size combined with musicality makes them undoubtedly the best choice for constrained environments.

The Tannoy Mini Autograph-Ow is an undeniable success.

Our favorite!
