Description

Ortofon's new 'Plug and Play' range builds on 2M cartridge features.

Ortofon 2M Bronze PNP: features

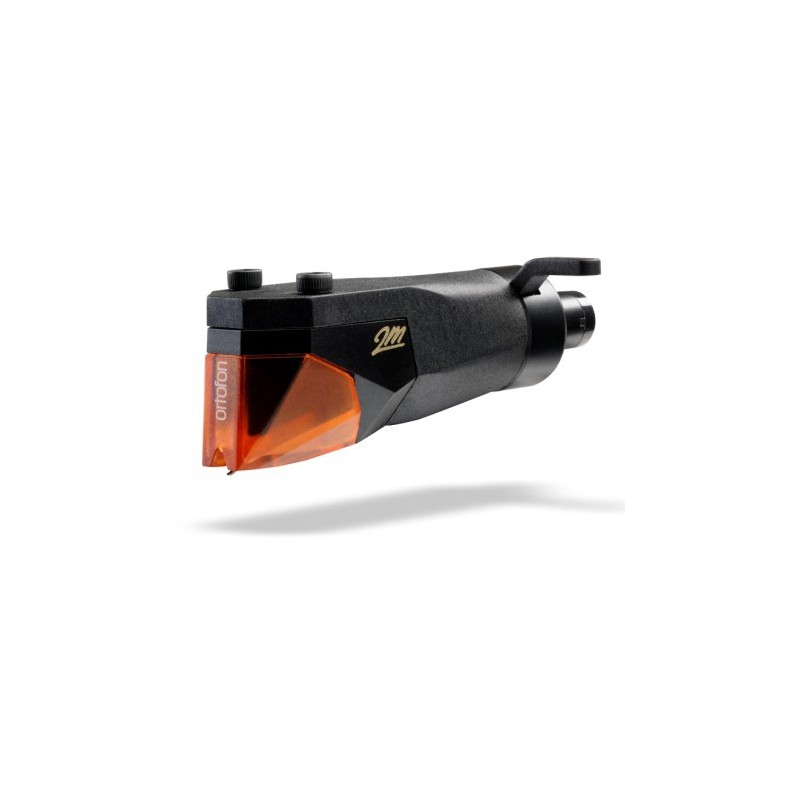

The distinctive feature of the PNP series is that the cartridge comes directly mounted to an exclusive headshell!

It is cast in a composite material stemming from the medical industry. It makes the cartridge very rigid and, above all, wards off any vibration and colouration. Naturally, it has retained all the features of the original: the Ortofon 2M Bronze cartridge

Ortofon 2M Bronze PNP: compatibility

This mounting style is perfectly compatible with Ortofon, SME and 'S' shaped tonearms for DJ or professional turntables such as Technics SL 1200, 1100, 1700… and Numark, to name a few.

You will have to check if the 23 g part is compatible with the counterweight of your tonearm.

Ortofon 2M Bronze PNP: assembly

On delivery you only need to insert the Ortofon 2M Bronze PNP cartridge into the tonearm of your turntable (provided it is compatible) and adjust the tracking force and antiskating.

Franck

Output: 5, mV

Channel balance: 1 dB

Channel separation: 26 dB

Frequency response (-3 dB): 20-29,000 Hz

Tracking: 80uM

Compliance: 22um/mN

Stylus: Nude Fine Line

Tracking force: 1.4-1.7g

Recommended tracking force: 1.5g

Internal impedance: 1.2 KOhms

Internal inductance: 630 mH

Load: 47 KOhms

Capacitance: 150/300 pF

Weight: 23g

Replacement stylus: 2M Bronze or 2M Black
