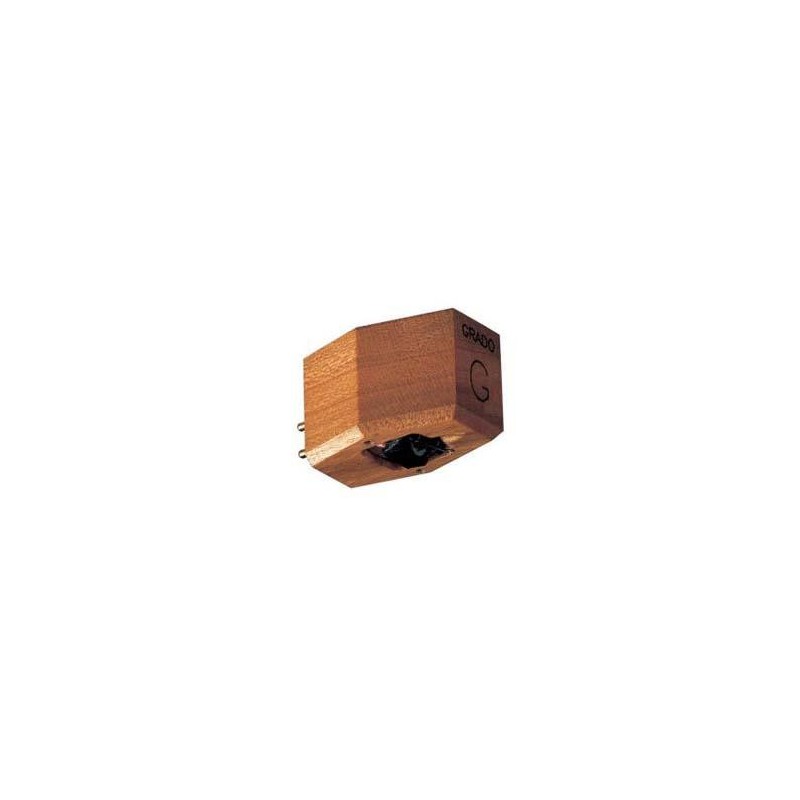

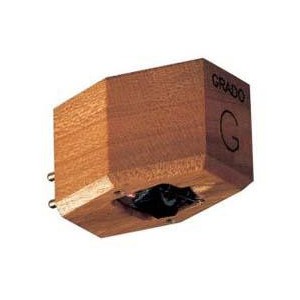

Grado Reference-1 MM cartridge

MM cartridge with True ellipsoid stylus.

Know more

Product no longer available

Need help ?
  • An attentive team

  • Quality products

  • Secure and fast shipping

  • No overcharged 3x payment from 1000€


Grado THE Reference-1 is not really a moving coil cartridge and not really a moving magnet cartridge! It uses the manufacturer's signature operating principle: Moving Iron. It uses a five piece OTL cantilever technology. In this case, it is a modified and lighter (- 5%) variant of the Sonata or Platinium models.

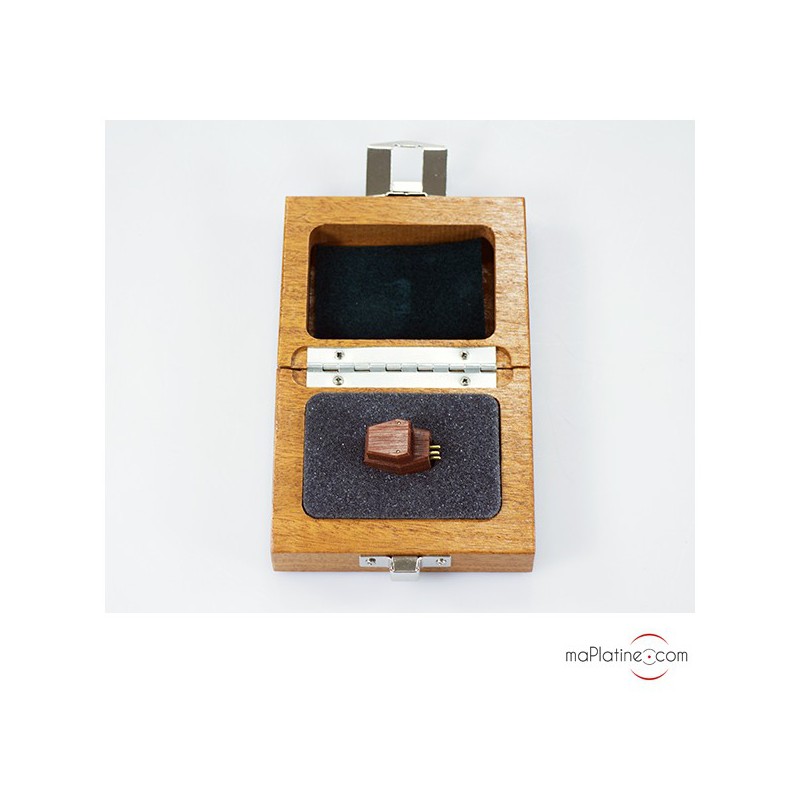

The cartridge - especially the coil and stylus/cantilever assembly - have had a facelift and are now 17% lighter. UHPLC (Ultra High Purity Long Crystal) conductors are used for the internal cables. The box is hand built in Jarrah wood. This hard and light wood stems from a tree native to Australia and gives the cartridge good sound neutrality. The stylus inherits of a very complex profile, the True Ellipsoid. The shape and polishing are very similar to the original 'chisel' profile used for recording. The contact surface approaches perfection, increasing tracking and minimising groove wall wear. As typically with Grado, this model is mounted onto a brass cantilever. Like all Grado products, it is assembled and tested in the company's historic workshop in Brooklyn, USA.


The setup phase is a bit complex. Once it is aligned, it needs a slight angle. According to its importance, the timbre and dynamics are modified. This implies that the tonearm needs to be easily adjustable in height. Do not use tonearms that are adjusted with spacers… Once the setup is optimised, this Grado Reference-1 cartridge will do a great job! The timbres are full-bodied, punchy and authentic. The midrange is present and blends in perfectly with the other registers. Musicality clearly takes centre stage with this MM cartridge. So if you are looking for 'over definition' and detail, the Reference Master may not be right for you. If you are a music lover with particularly exacting standards, you won't regret this choice any time soon...


Frequency response: 10hz 60khz

Principle: Moving Iron

Channel separation: 40 dB

Input load: 47 K

Output: 4mv

Recommended tracking force: 1.5g

Stylus type: True Ellipsoid

Inductance: 45 mH

Resistance: 475 Ohms

Compliance: 20 Compliance CUs

Weight: 6.5 g
