Audio-Technica AT VM 95EBK/H cartridge

New !

MM cartridge

Elliptical stylus

AT-HS6 cartridge holder

Know more

Manufacturer : AUDIO TECHNICA

89,00 €

Available
Shipped within 3 to 5 working days Available within 1 or 2 weeks

+ Wishlists

Need help ?

An attentive team
Quality products
Secure and fast shipping
Paiement sécurisé 3x sans frais dès 400€ d’achat

Description
Customer reviews
Our tips & advice

Description

Our expert's words

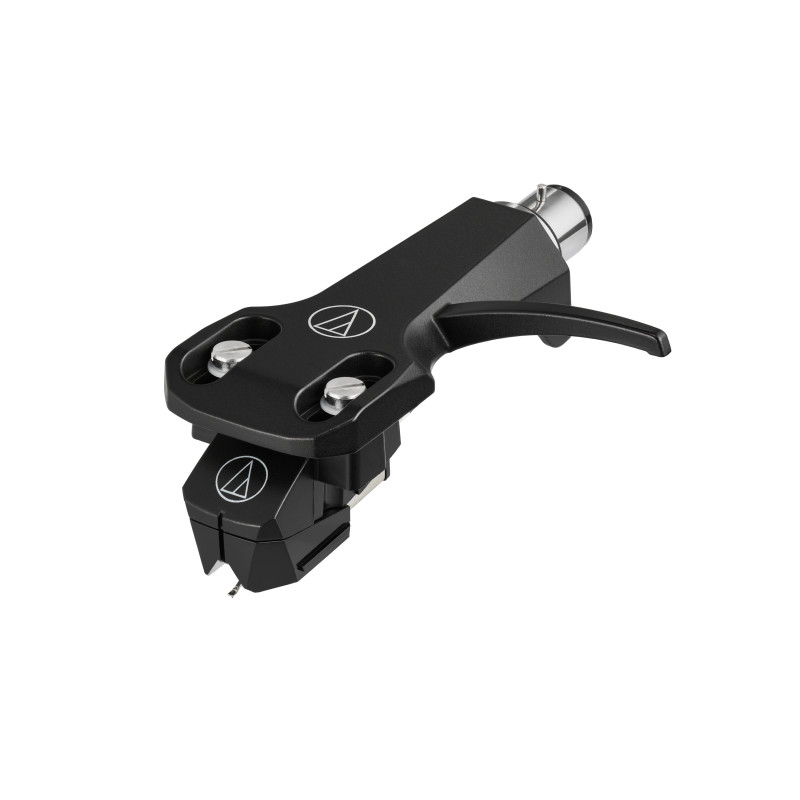

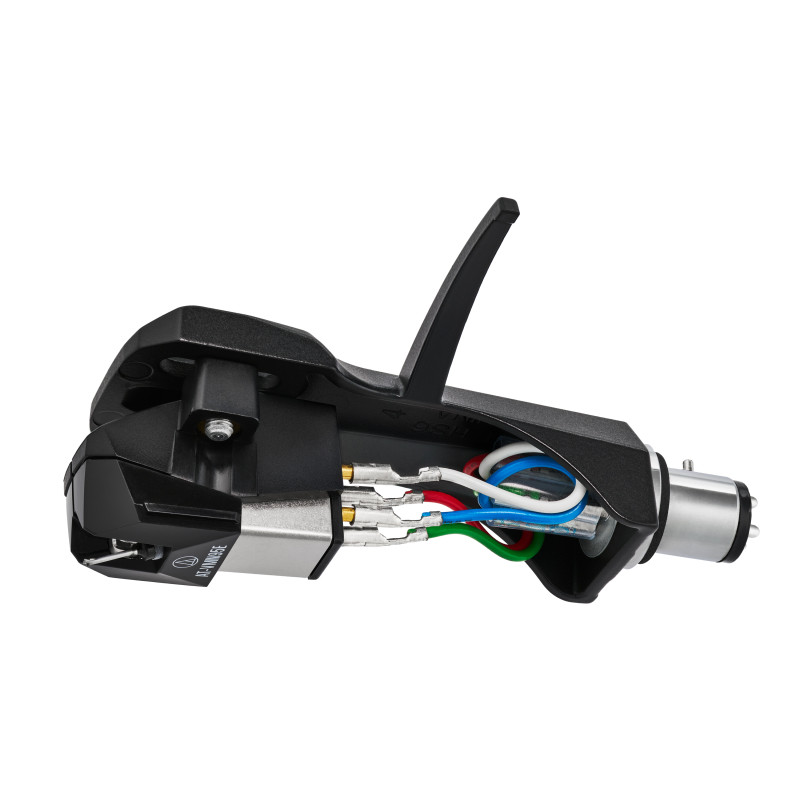

This Audio Technica AT VM 95 EBK cartridge is equivalent to the AT-VM 95E, except for the black finish. It is fitted as standard on an Audio Technica AT-HS6 cartridge holder.

Franck

Type VM: dual stereo magnet

Frequency response: 20 - 22,000 Hz

Channel separation: 20 dB (1 kHz)

Channel balance: 2.0 dB (1 kHz)

Output voltage: 4.0 mV (at 1 kHz, 5 cm/s)

Vertical tracking angle: 23°

Tracking force range: 1.8–2.2 g

Recommended tracking force: 2.0 g

Stylus: Elliptical

Stylus size: 0.3 x 0.7 mil

Cantilever: Aluminium

Coil impedance: 3.3 kΩ (1 kHz)

Coil inductance: 550 mH (1 kHz)

DC resistance: 485 Ω

Static compliance: 17 x 10 - 6 cm/dyne

Dynamic compliance: 6.5 x 10 - 6 cm/dyne (100 Hz)

Coil conductor: T.P copper

Recommended load impedance: 47,000 Ω

Recommended load capacity: 100-200 pF

Weight: 16.1g (cartridge + headshell)

Dimensions: 17.2 x 18.9 x 28.3

Replacement stylus: AT-VMN95EBK or AT-VMN95EBK
