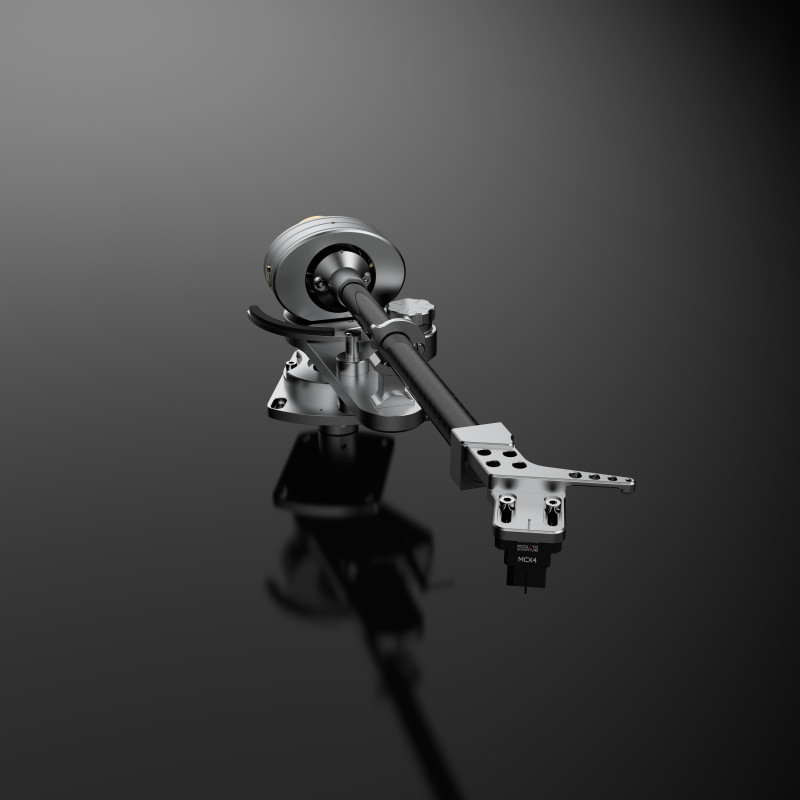

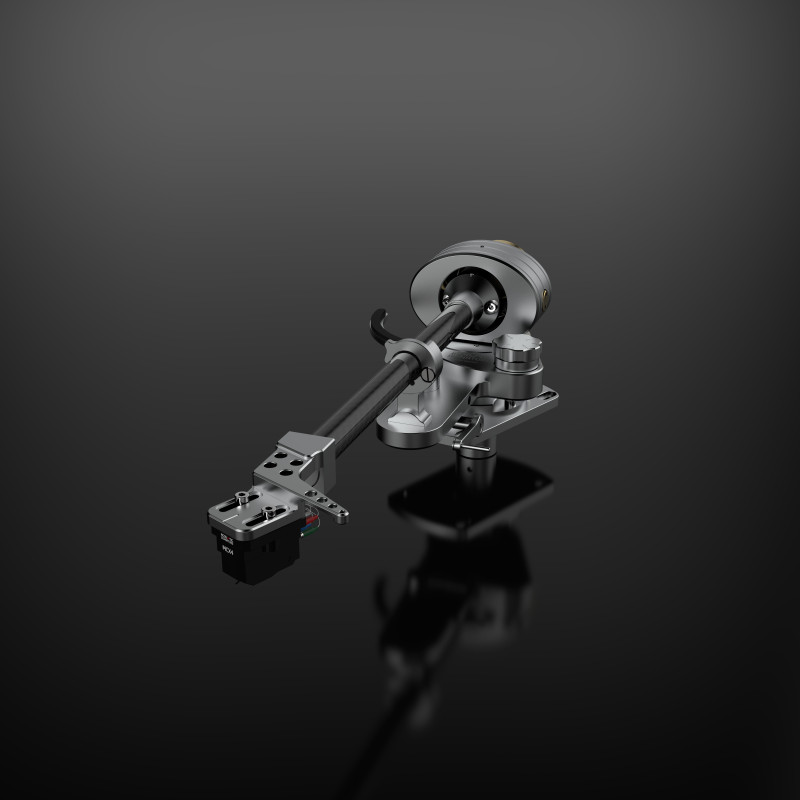

Acoustic Signature TA-5000 NEO Tonearm

The quality of a turntable is always determined by its weakest link. For this reason, Acoustic Signature refuses to offer entry-level tonearms that would significantly limit the performance of its turntables.

The TA-5000 Neo is the fourth tonearm in the German manufacturer’s lineup and delivers remarkable performance and musicality considering its price. It is available in both 9-inch and 12-inch versions.

Acoustic Signature TA-5000 Neo: arm tube and bearings

The Acoustic Signature TA-5000 Neo is available in 9-inch or 12-inch configurations, with an effective length of 239.3 mm or 309 mm respectively.

It features a triple carbon fiber tube structure offering exceptional rigidity and extremely low resonance. Its effective mass is 12.4g in the 9-inch version and 14.4g in the 12-inch version, making it compatible with a wide range of MM and MC cartridges, although MC cartridges are particularly recommended with a tonearm of this quality.

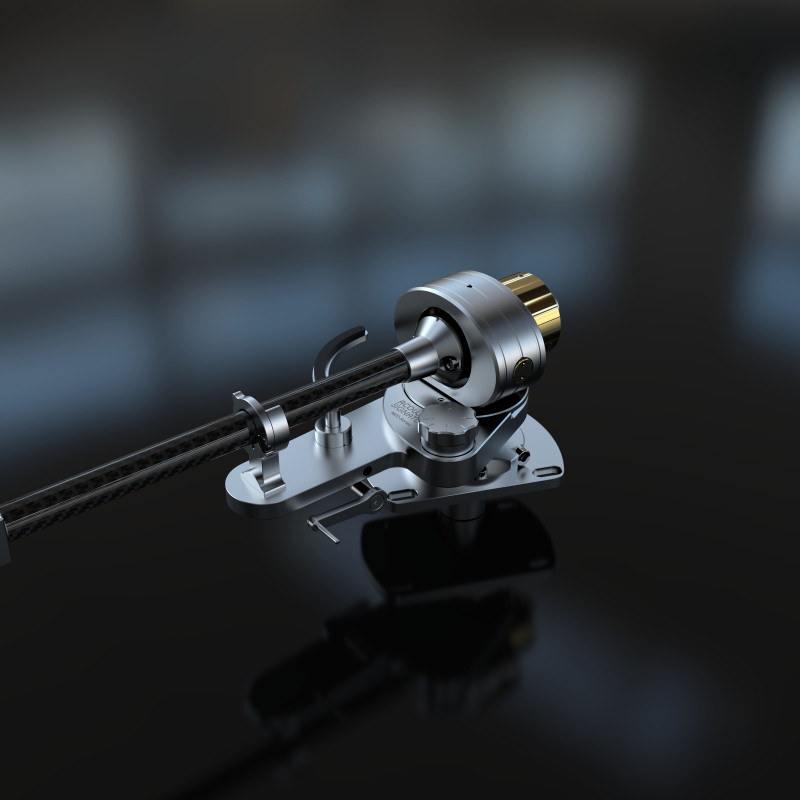

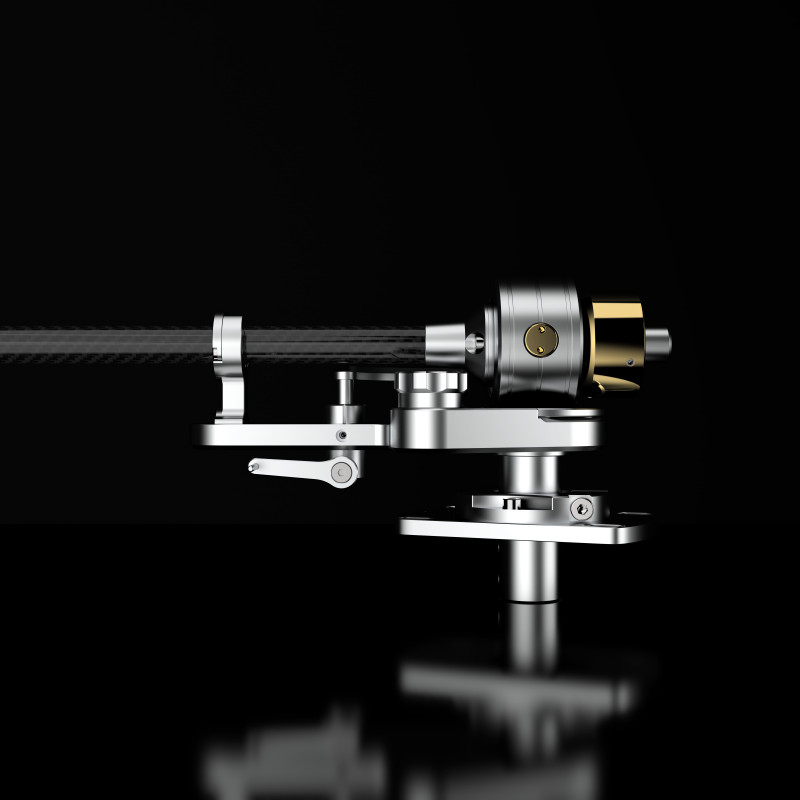

The TA-5000 provides excellent tracking performance thanks to miniature ball bearings supplied by SKF. To ensure both durability and fluid movement, the manufacturer uses a precision-machined stainless steel pivot shaft.

The counterweight applying tracking force is machined from a solid block of high-purity brass. Anti-skating adjustment is managed via a dedicated dial located to the right of the tonearm pivot.

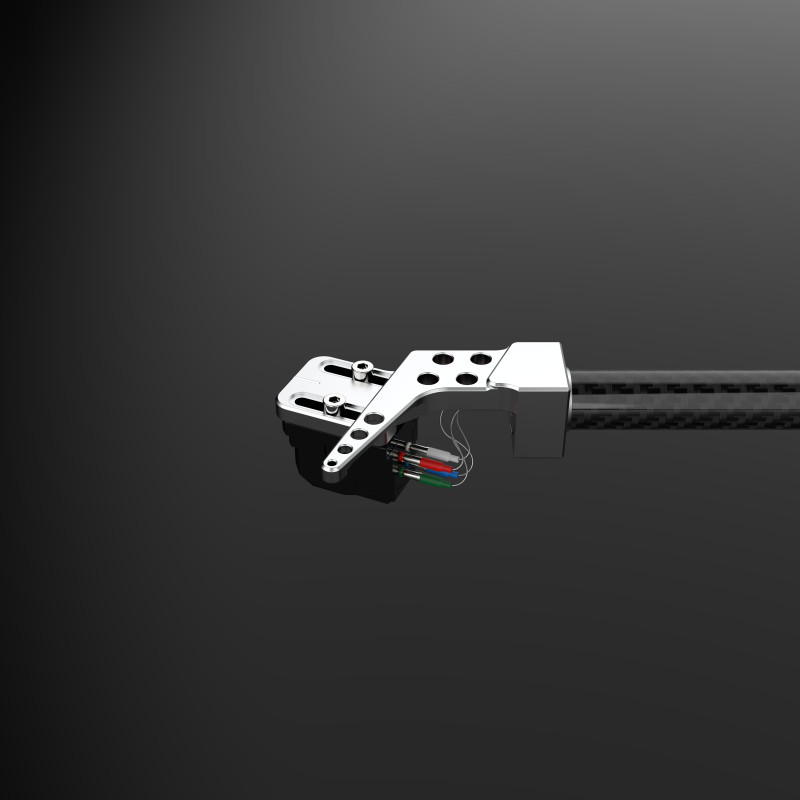

The highly engineered headshell is machined from a solid aluminum block and allows precise alignment and overhang adjustments while remaining compatible with most cartridges on the market.

The TA-5000 also includes a fully machined cueing lever, offering excellent precision and user comfort.

Acoustic Signature TA-5000 Neo: wiring

The internal wiring uses very high-quality 4N silver conductors.

The cartridge connectors are silver-plated, ensuring extremely low resistance and minimal capacitance.

The TA-5000 is supplied with a premium 5-pin DIN to RCA cable made from PSC copper and manufactured by the Scottish brand Atlas.

Acoustic Signature TA-5000 Neo: installation

The TA-5000 is supplied with an SME-type mounting base, making it compatible with the manufacturer’s turntables as well as many other compatible models.

While most turntables can accommodate the 9-inch version, fewer are compatible with the 12-inch model. Compatibility should therefore be confirmed before installation.

Acoustic Signature TA-5000 Neo: sound performance

The build quality and assembly of the Acoustic Signature TA-5000 Neo are exceptional, making its handling highly satisfying.

From the very first notes, it delivers a soundstage with remarkable precision, rarely achieved in analog playback. The dynamics are powerful yet refined, never exaggerated or aggressive.

The sound is rich, expansive, and completely free from distortion across the entire frequency range. The TA-5000 reproduces bass lines with impressive power and precision, while maintaining excellent articulation and realism.

In the midrange and treble, it retains the clarity and openness of the TA-2000, but with significantly more body, finesse, and nuance. This is largely due to the quality of the materials used and the precision of the assembly.

The TA-5000 Neo is an exceptionally musical tonearm that naturally deserves to be paired with some of the finest MC cartridges available today.

The Acoustic Signature TA-5000 Neo is a true reference in its category and a thoroughly justified investment.
