Stylus Ortofon Concorde Music Red

New !
Stylus Ortofon Concorde Music Red +

Elliptical Stylus

Aluminum Cantilever

Compatible with the Ortofon

Concorde Music Series

Made in Denmark

Know more

Manufacturer : ORTOFON

69,00 €

Restocking
Shipped within 3 to 5 working days Available within 1 or 2 weeks

+ -

MPLSEOR217

Need help ?
  • An attentive team

  • Quality products

  • Secure and fast shipping

  • No overcharged 3x payment from 1000€

Description

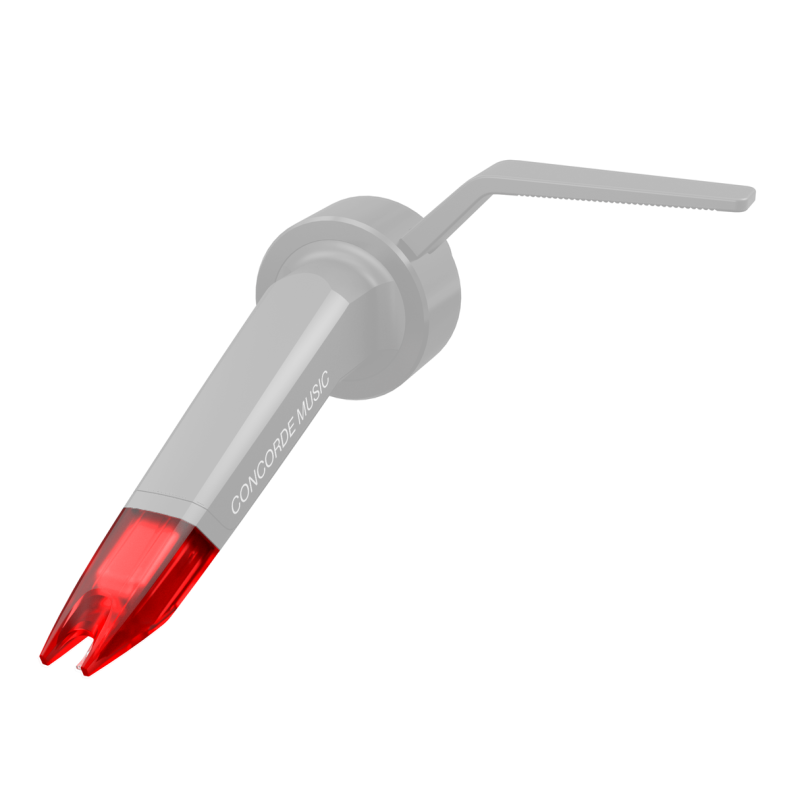

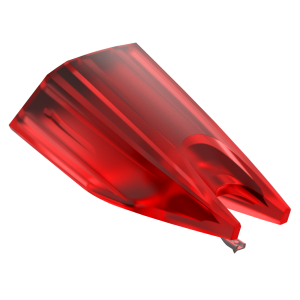

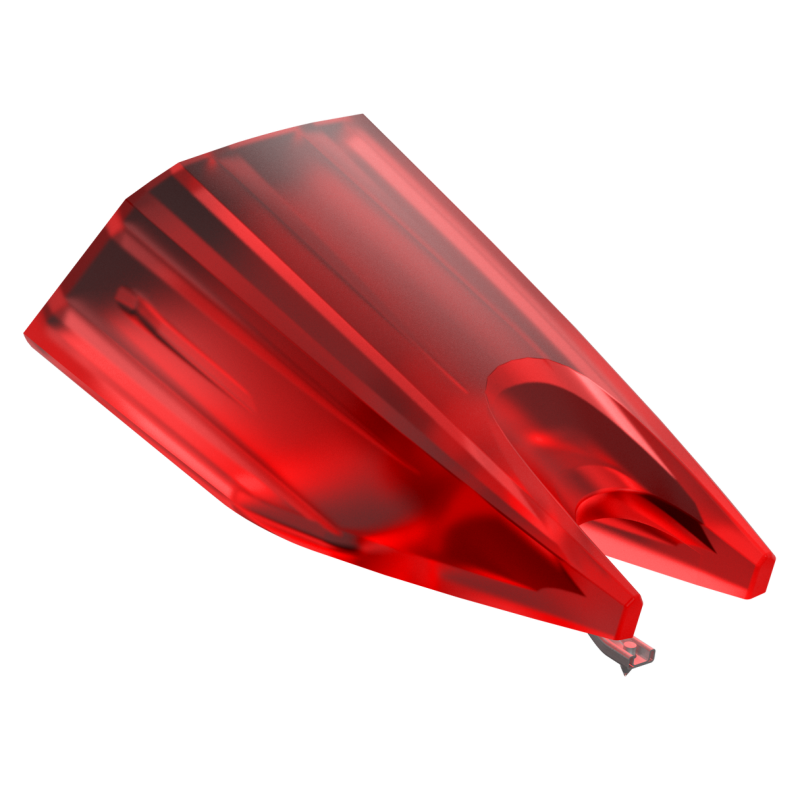

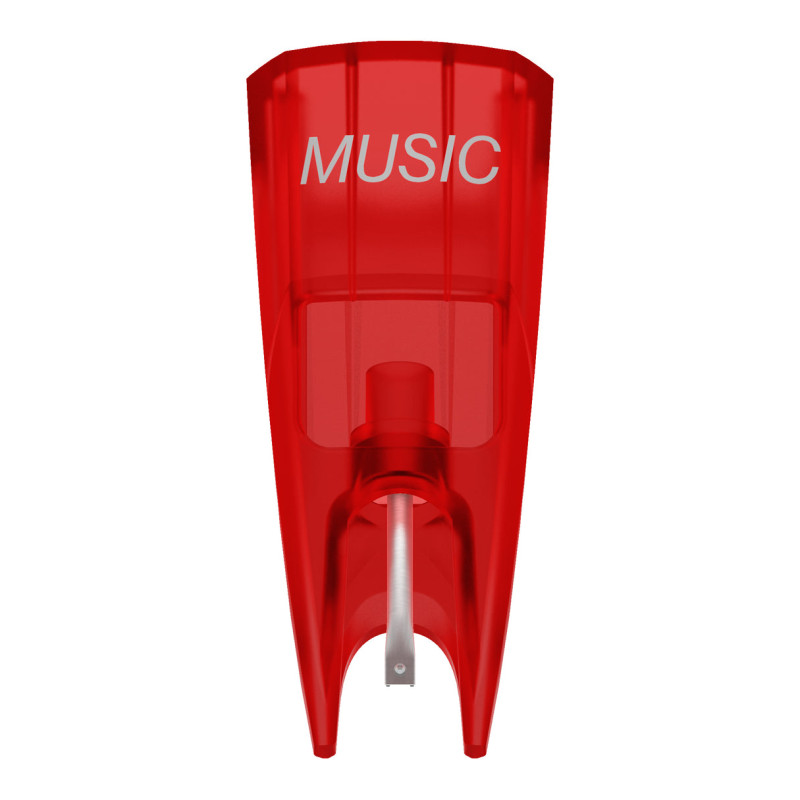

Replacement stylus Ortofon Concorde Music for the Ortofon Music Red cartridge.

It is an elliptical stylus mounted on an aluminum cantilever.

Franck

ype: MM Output Level: 6 mV

Channel Separation at 1 kHz: 22 dB

Frequency Response at -3 dB: 20 Hz/20 kHz

Compliance: 15 µm/mN

Diamond: Elliptical

Cantilever: Aluminum

Optimal Tracking Force: 1.8 g

Stylus Rake Angle: 20°

Internal Impedance: 1.27 kΩ

Internal Inductance: 815 mH

Load Resistance: 47 kΩ

Load Capacitance: 150-300 pF
