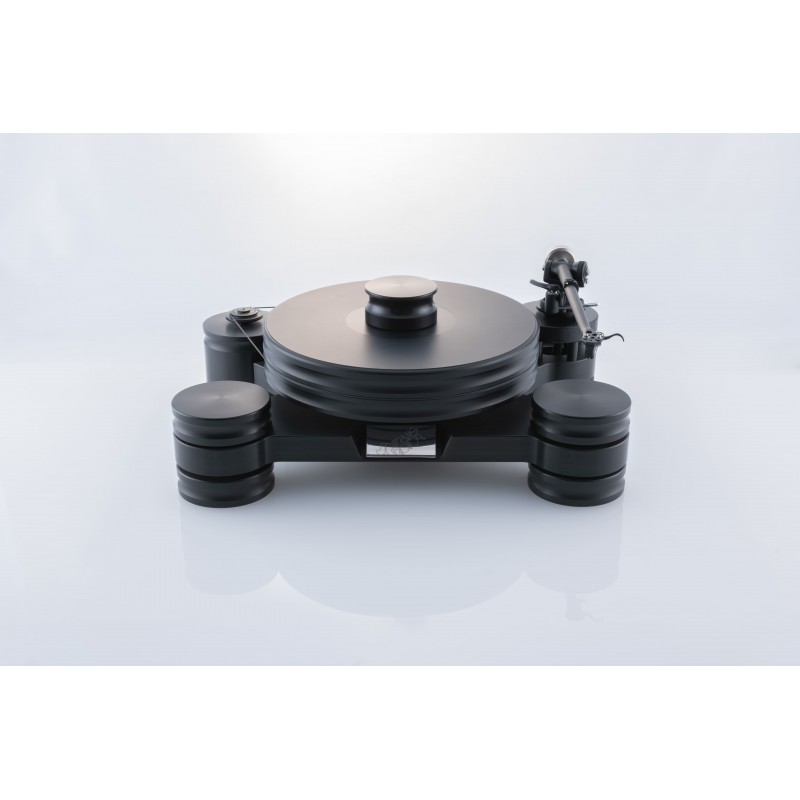

Transrotor Darkstar turntable

Transrotor Uccello MM cartridge

RB 880 tonearm

POM platter

Konstant Eins power supply

Made in Germany

Know more

Manufacturer : JR TRANSROTOR

4 859,00 €

In stock
Shipped within 3 to 5 working days Available within 1 or 2 weeks

+ -

MPLCOTR014

Need help ?
  • An attentive team

  • Quality products

  • Secure and fast shipping

  • No overcharged 3x payment from 1000€

Description

Audiophiles often love unpacking turntables, they see it as a pleasant small ritual… well setting up a JR Transrotor turntable is no exception!

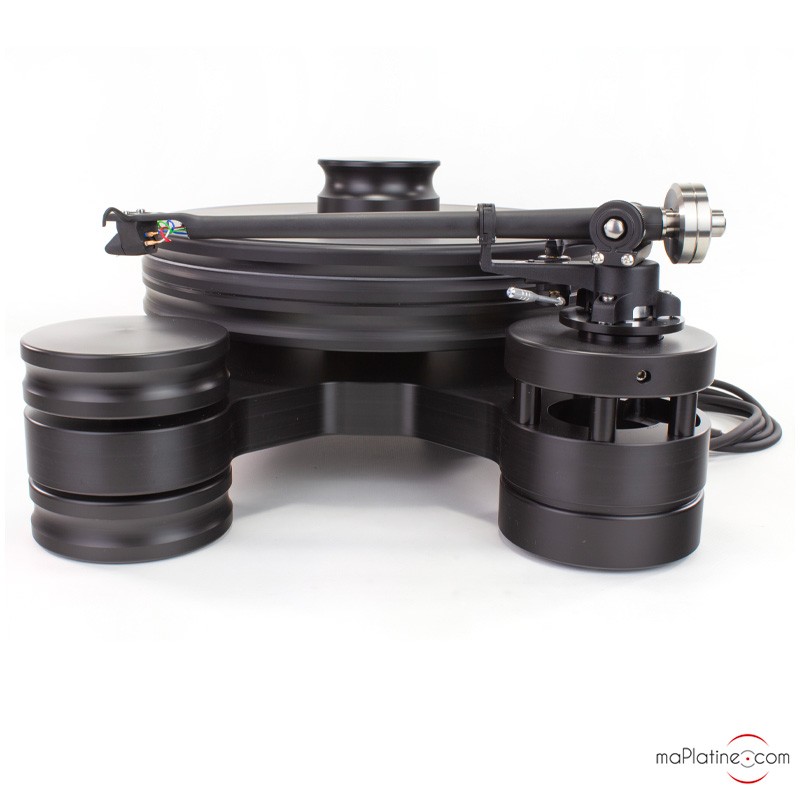

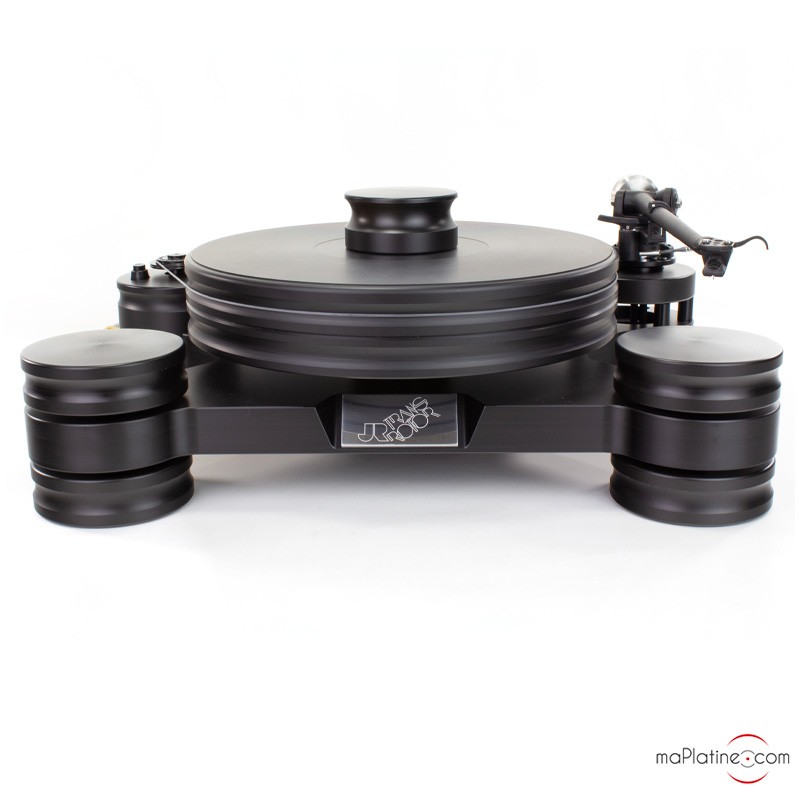

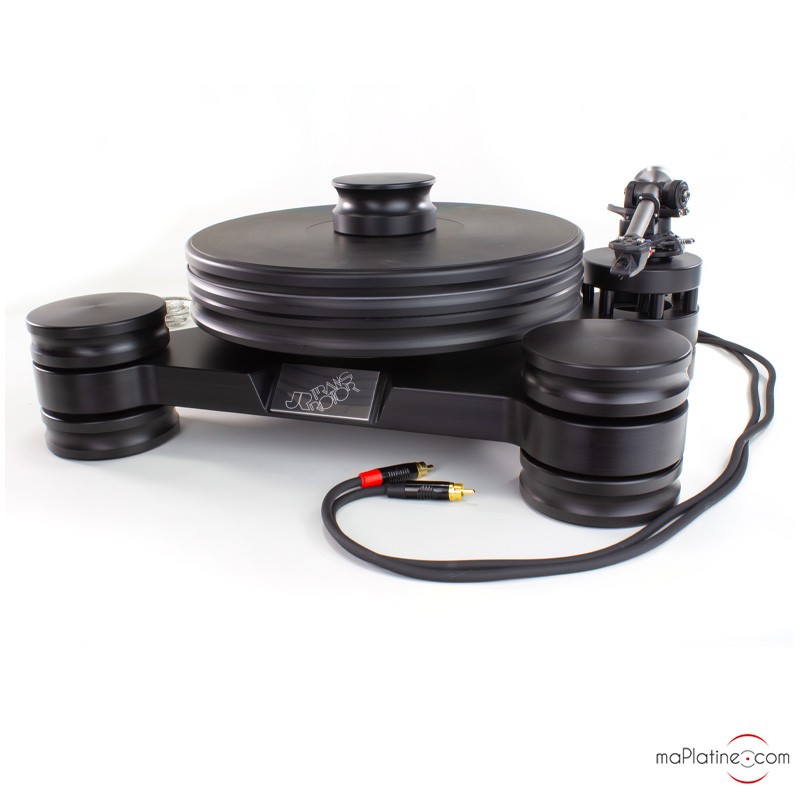

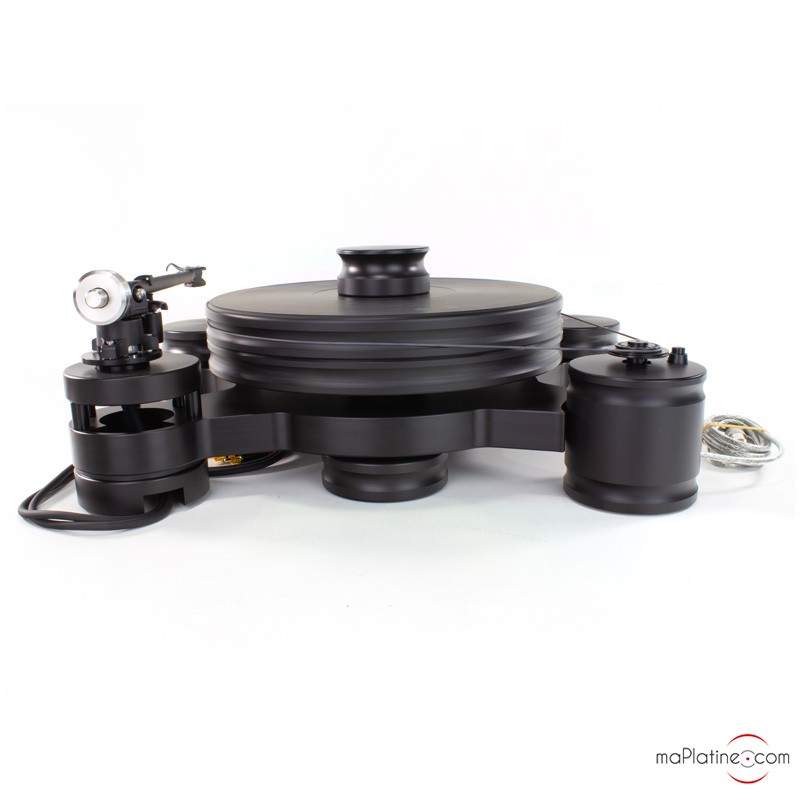

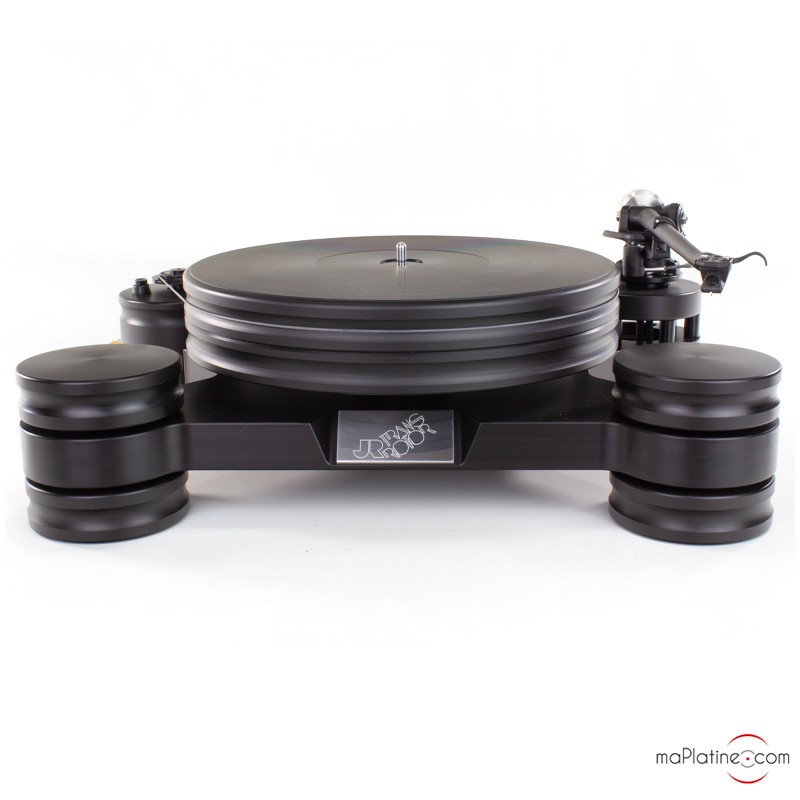

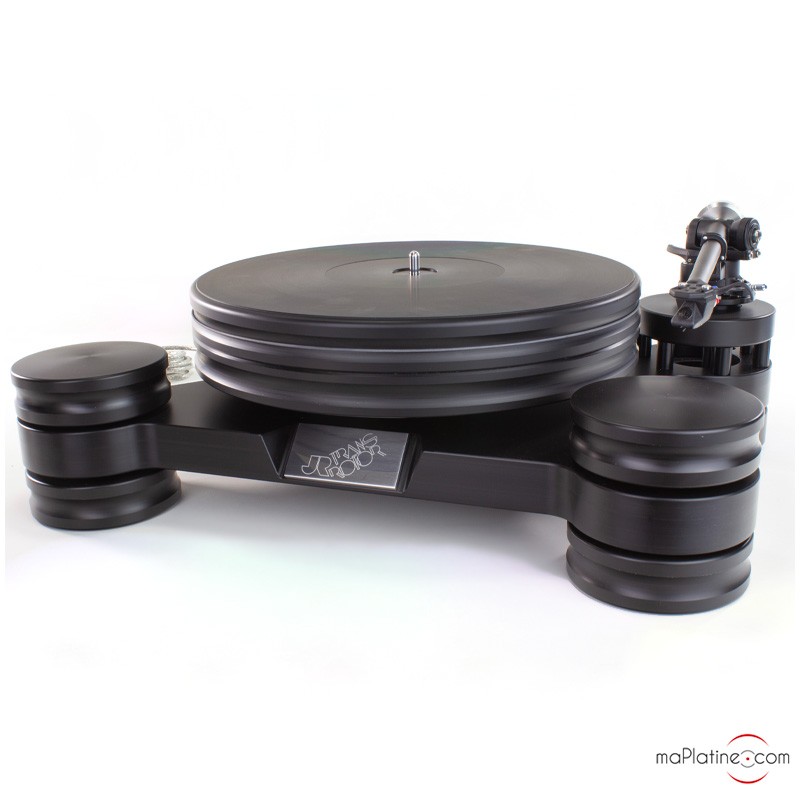

TRANSROTOR DARKSTAR: CHASSIS

The Darkstar uses no suspension or damping system. Just like the other models, Transrotor relies on a combination of mass technology as well as dense and neutral materials. The chassis and platter of the Darkstar are made of POM, also known as Polyoxymethylene for the chemists, and Delrin, the Dupont registered trademark for the rest of us.

This resin combines many of the properties of metals and plastics, including strength, rigidity and resistance to impact, moisture and temperature. Its damping and anti-vibration abilities are similar to acrylic.

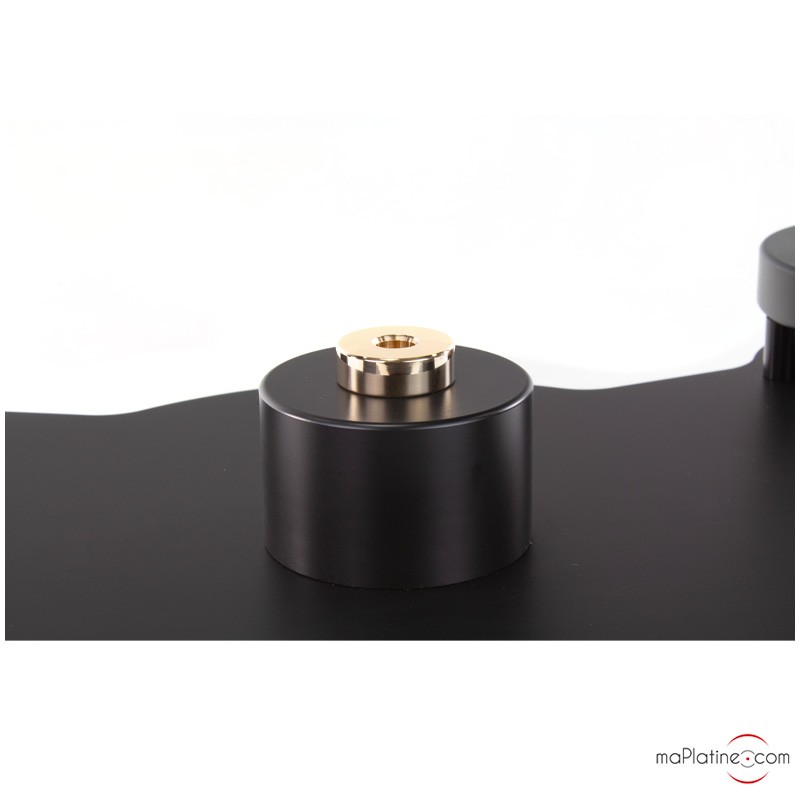

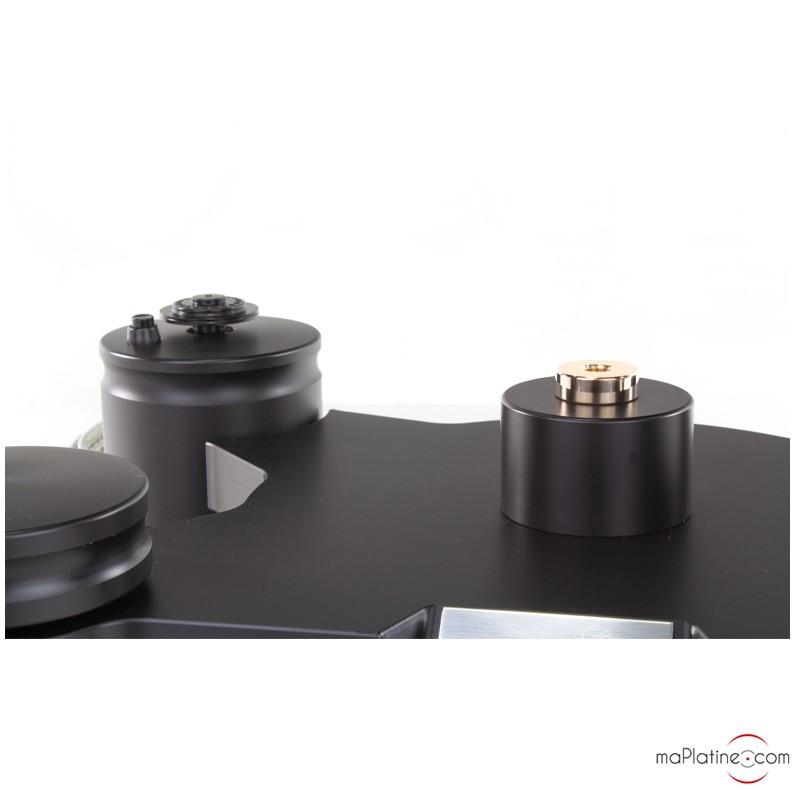

Contrary to what might be thought, the Darkstar rests on three feet. The motor and tonearm bases are suspended and not in contact with the turntable stand.

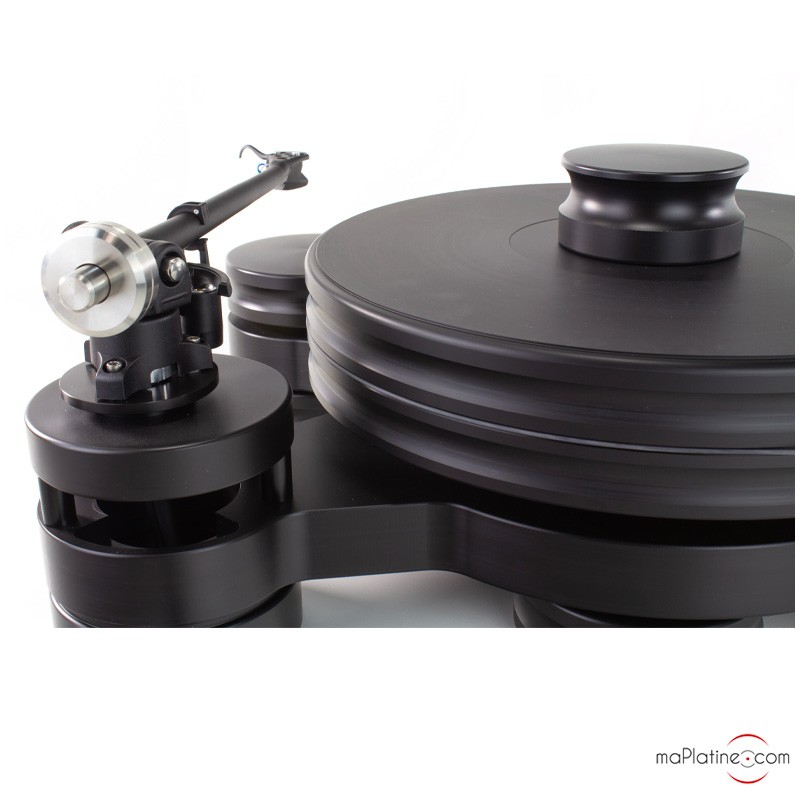

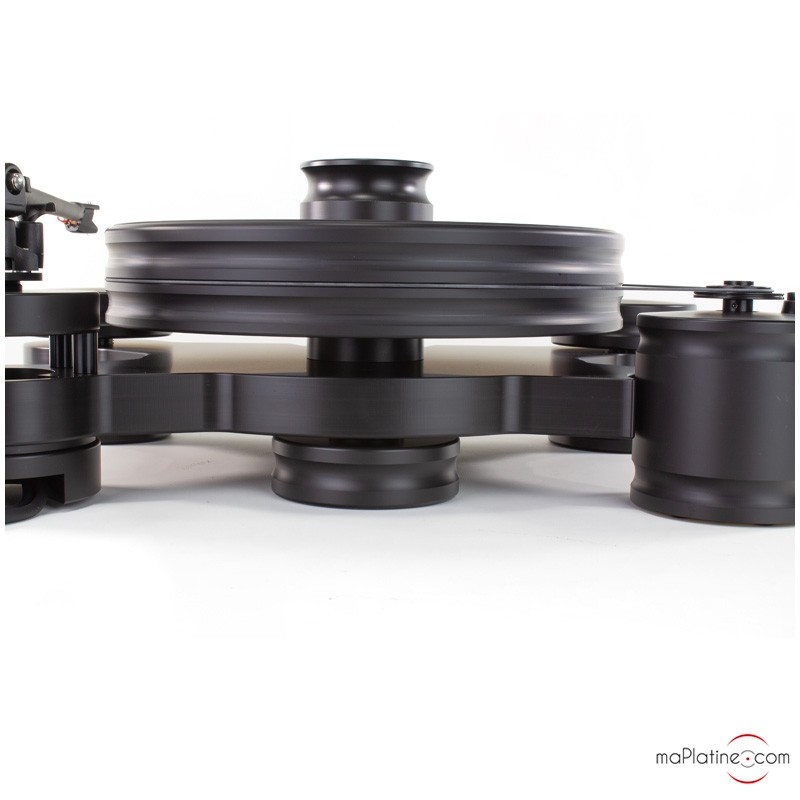

TRANSROTOR DARKSTAR: PLATTER AND DRIVE PRINCIPLE

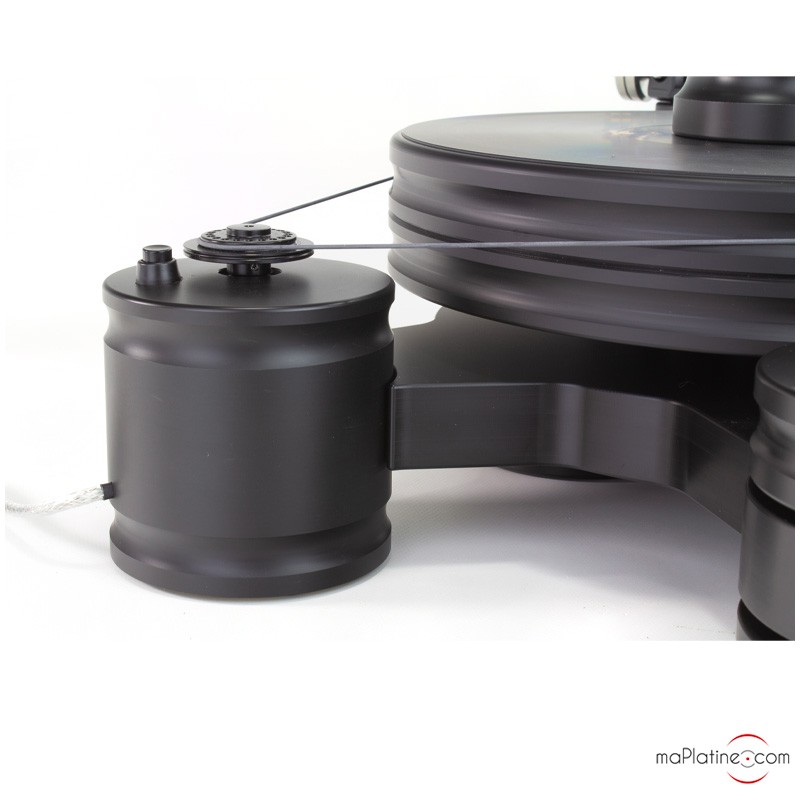

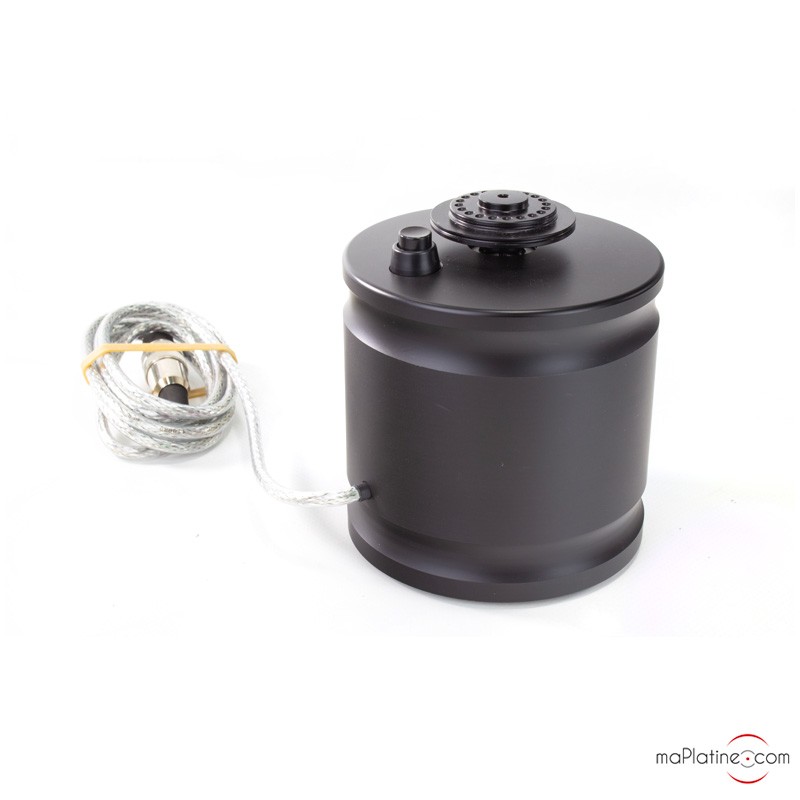

The platter undergoes special treatment to reduce vibration and resonance stemming from the drive system. It is visible on the underside of the platter and features concentric ribbing. Its weight and design result in great inertia. The drive principle is quite standard. It comprises a belt and an AC synchronous motor.

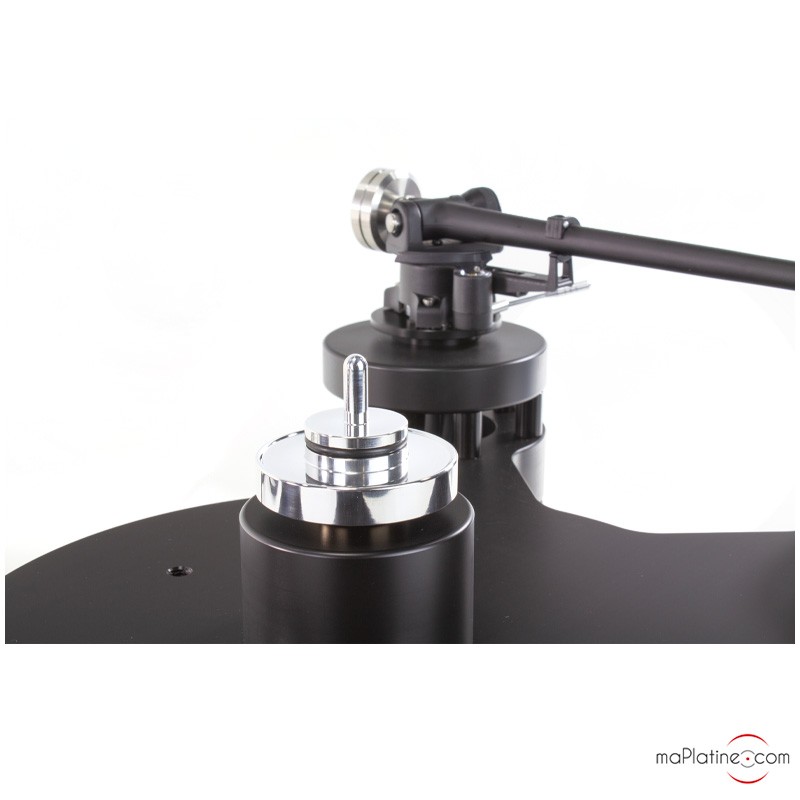

As with most high-end turntables, there is no sub-platter and the belt just slips around the edge of the platter. The stainless-steel drive spindle rests on a brass housing. The bearing is a ceramic ball-bearing.

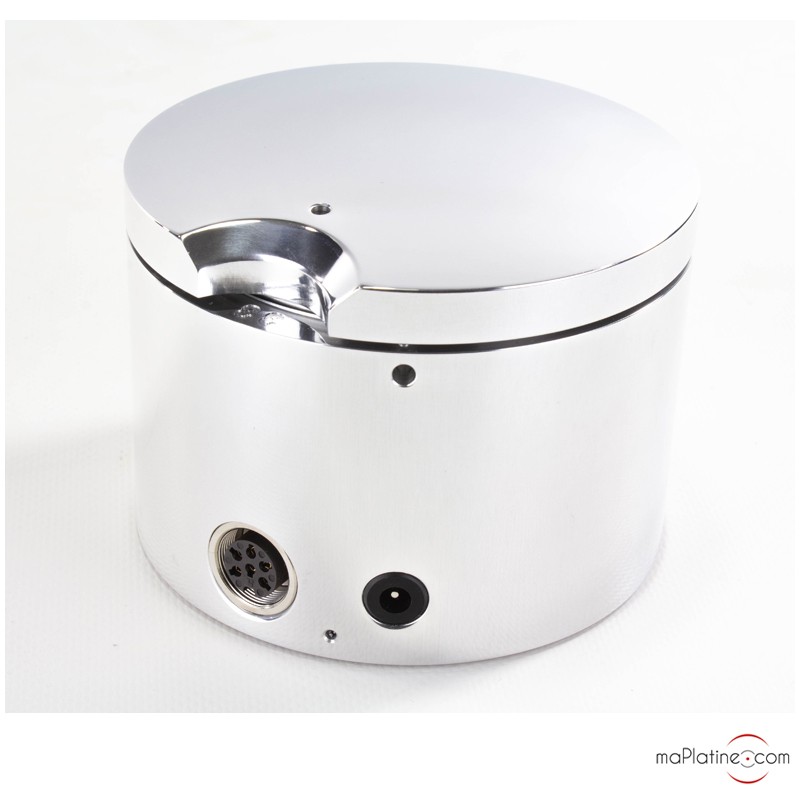

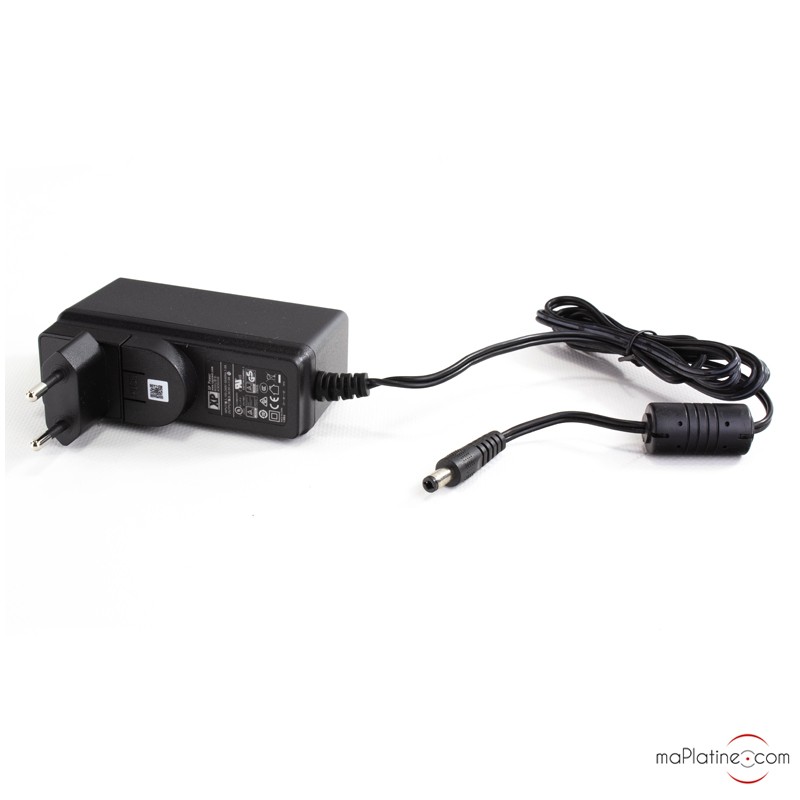

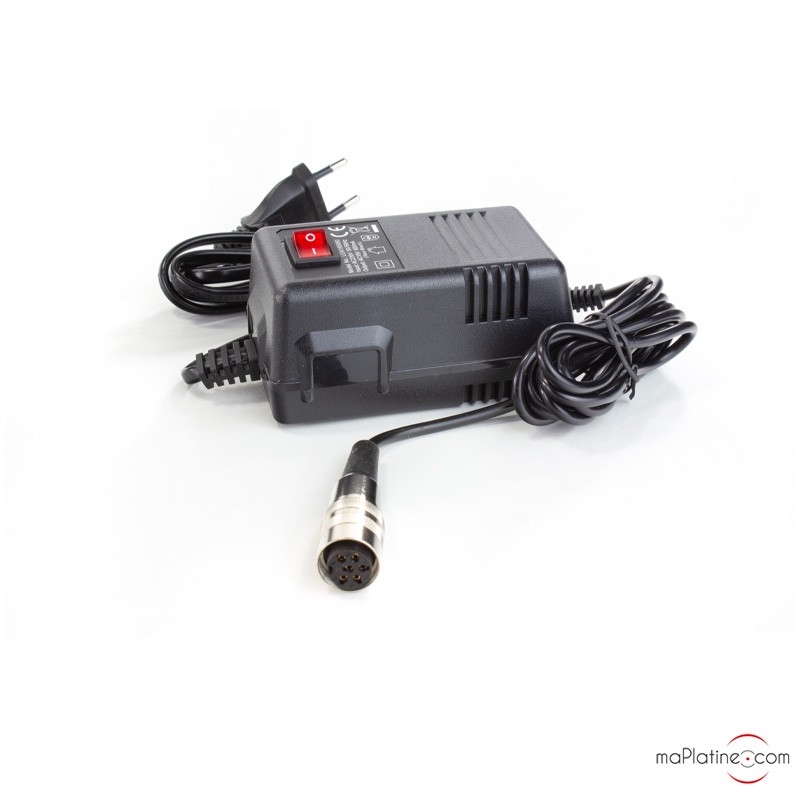

The Darkstar is delivered as standard with the Konstant Eins power supply.

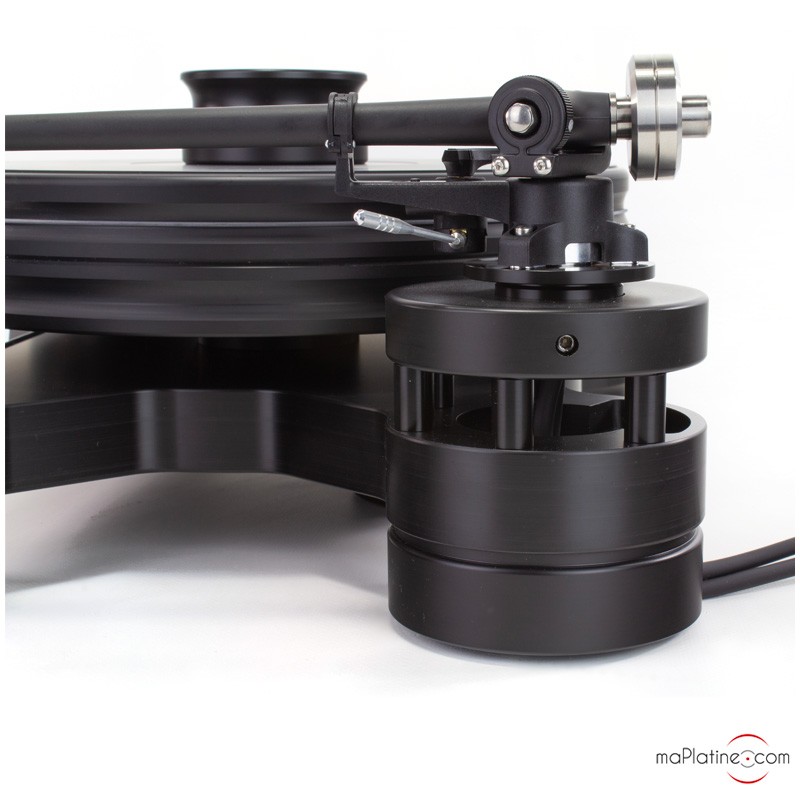

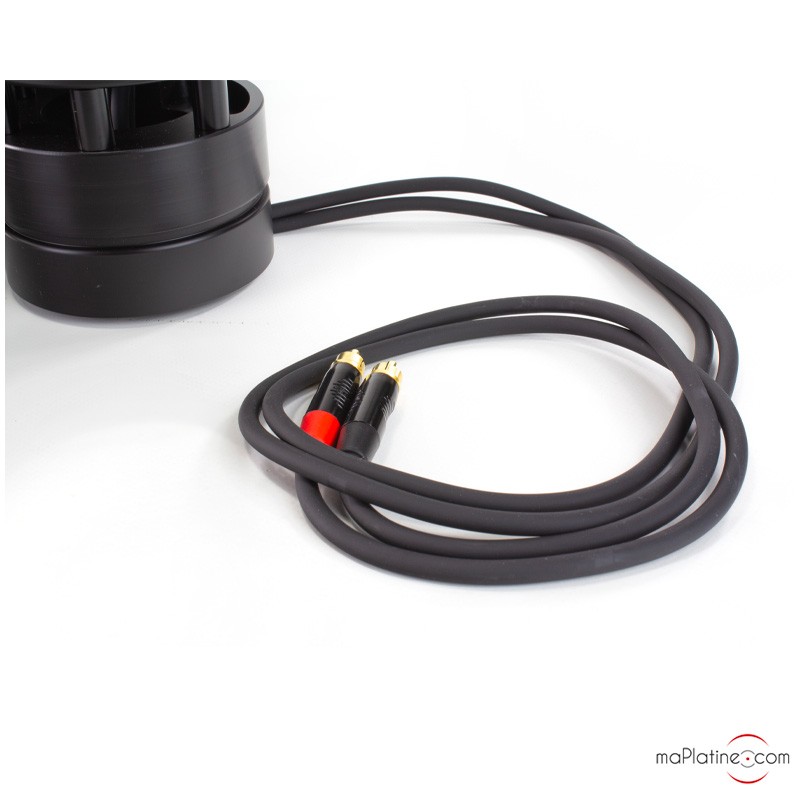

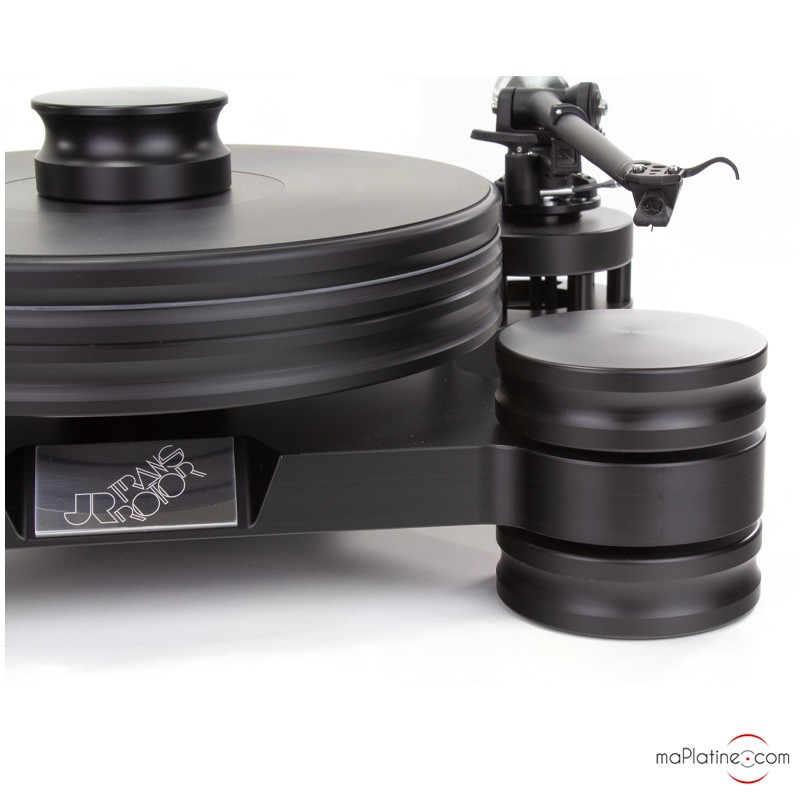

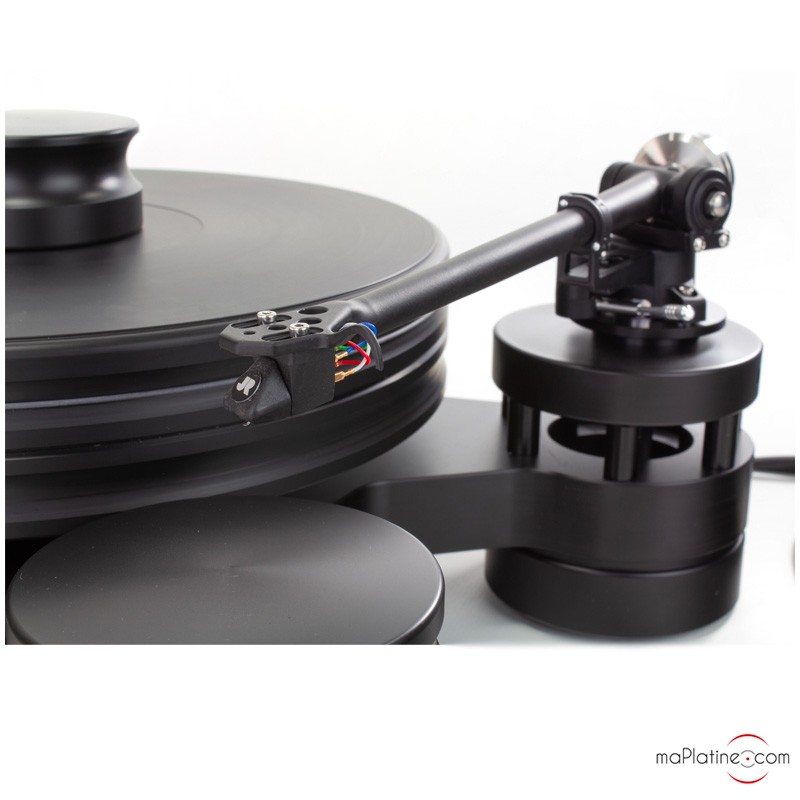

TRANSROTOR DARKSTAR: TONEARM, CARTRIDGE AND PHONO CABLE

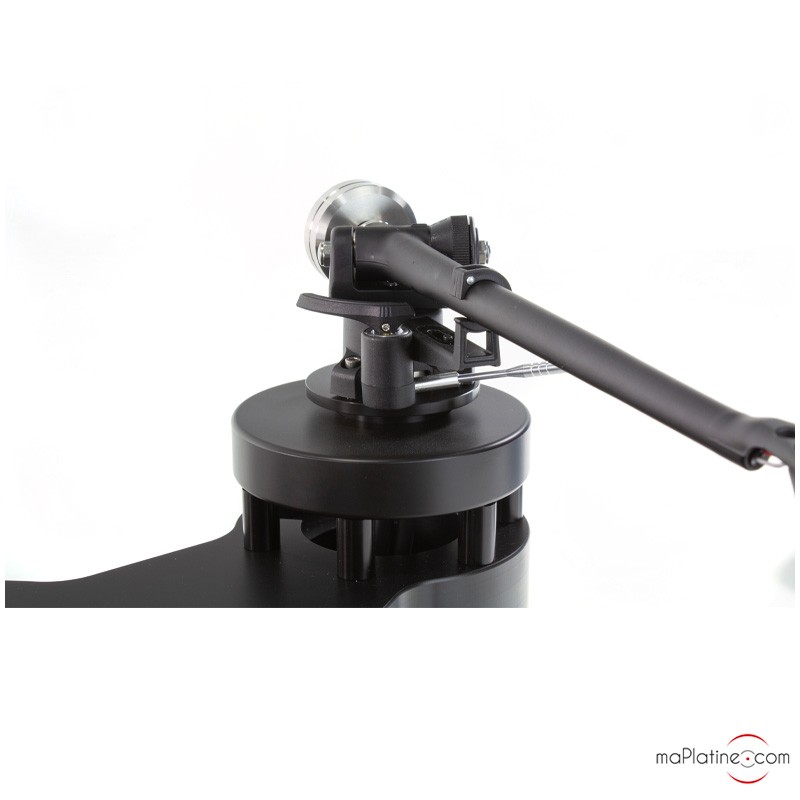

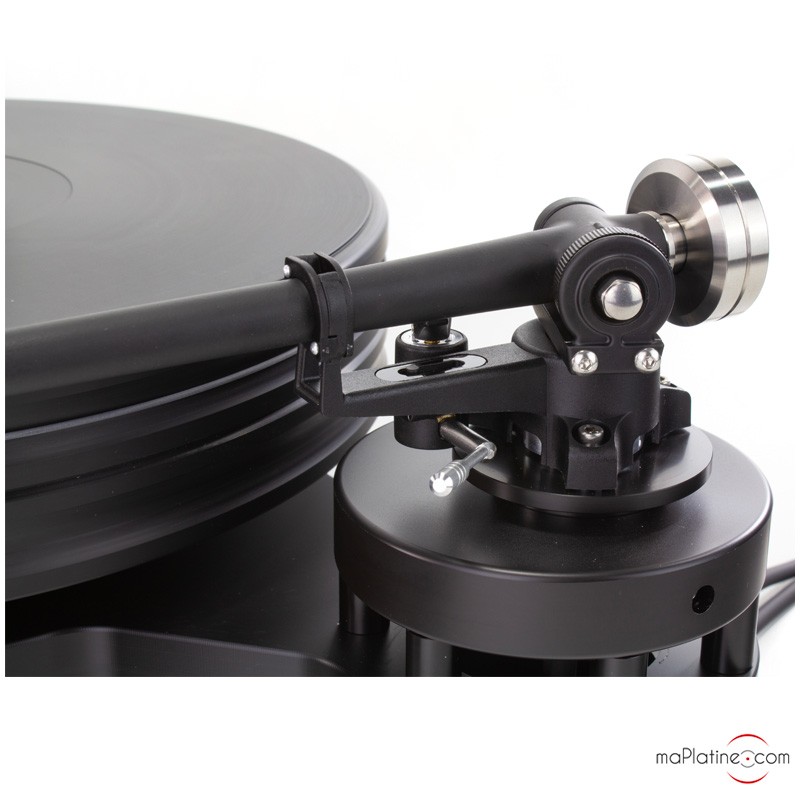

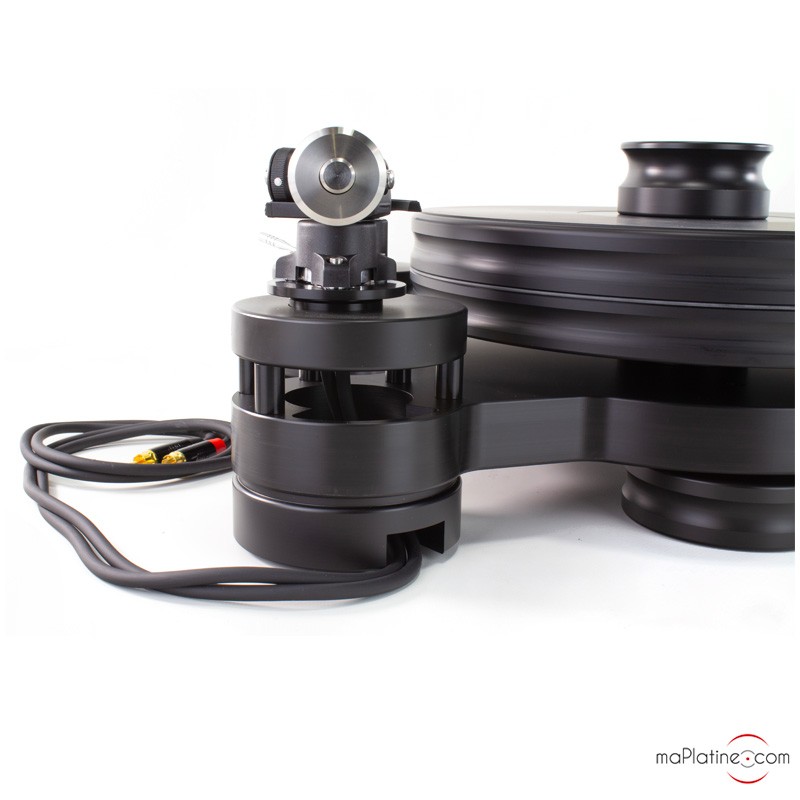

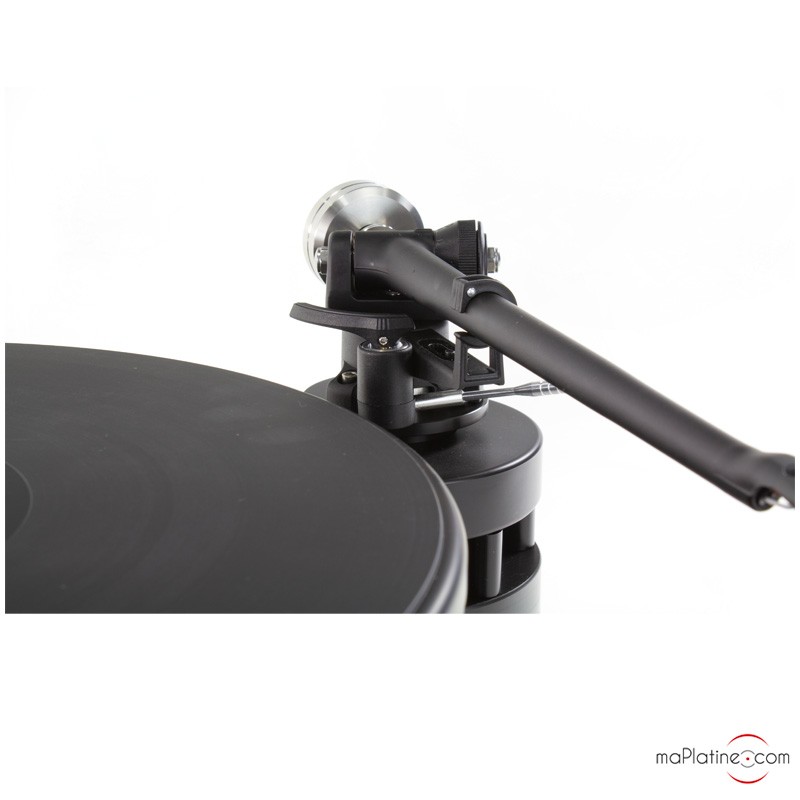

The Transrotor Darkstar turntable is supplied with a high-end Rega RB880 tonearm. It was modified and optimised to adapt to the characteristics of the turntable as well as Transrotor’s requirements. It’s an aluminium tonearm with a 9” effective length. As always with Rega, the phono cable is captive. Our tests proved that the quality is excellent with most entry level and mid-range MM as well as MC cartridges.

The Transrotor Darkstar is equipped as standard with an Uccello MM cartridge, which is very similar to the Goldring 1022GX MM cartridge.

TRANSROTOR DARKSTAR: TESTING AND LISTENING

As with many rigid turntable models, setting up this model is really easy. Position the chassis and compensate for level using the front towers, position the motor, platter and belt and you're done! Start the music!

Don't let the appearance of this JR Transrotor fool you! The musicality is far from being dull and “dark”! It’s the complete opposite! It delivers a vibrant sound with a lot of substance. It picks up transient cues very quickly and clearly. You simply can’t get bored with the Darkstar! The level of detail and transparency deliver the recording and mixing with great authenticity. The timbres are very authentic and rich. The noise level is almost inaudible. The overall neutrality makes this turntable readily compatible with many MM and MC cartridges as well as phono preamplifiers.

The JR Transrotor Darkstar turntable is outstanding on all fronts: manufacture, musicality, versatility… It’s definitely a great deal with exceptional value for money. Would recommend!

AWARDS:

Haute-Fidélité - Meilleur Achat – 2017

Franck

Principle: rigid turntable

Chassis: 25 mm thick with black or white acrylic

Platter: polished aluminium

Platter height: 60 mm

Platter weight: 10 kg

Motor: AC synchronous

Drive principle: belt

Speeds: 33 and 45 rpm

Spindle: stainless steel

Housing: bronze

Bearing: ceramic ball-bearing

Tonearm: TR 880

Record clamp: aluminium

MM cartridge: Transrotor Uccello

Power supply: Konstant Eins

Dimensions: 45 x 40 cm

Height: 18 cm

Weight: 24 kg

Uccello cartridge:

Principle: MM

Frequency response: 20 Hz - 25 kHz ± 2 dB

Channel balance: 2 dB max. at 1 kHz

Channel separation: 25 dB min. at 1 kHz

Output voltage: 6.5 mV ± 1 dB at 1 kHz

Stylus shape: Transrotor special

Resistive load: 47 kΩ

Capacitive load: 150 - 200 pF

Tracking force: 1.5 - 2 g (recommended: 1.75 g)

Weight: 6.3 g

Awards

Awards

Haute Fidélité

2017
Customer reviews
(1 review)

Customer reviews

5/5
07/09/2022

Superbe

J'ai pris un peu de temps avant de donner un avis pour bien cerner cette platine.
Ayant eu un certain nombre de platines par le passé, toutes HDG avec des cellules HDG également, j'ai abandonné le vinyle pendant environ 5 ans pour le CD, mais voilà après maintes achats de lecteurs, j'ai refait un retour au vinyle avec cette platine.
Tout d'abord je voulais une platine construite avec des matériaux les plus neutres possible, un moteur découplé du châssis, un plateau assez lourd pour une bonne inertie, et pour vous dire aussi je trouvais son look super sympa.
Et je peux dire que le résultat est bien là, avec un silence de fonctionnement remarquable, je pourrais en rajouter Franck l'a très bien résumé.
Mes essais ont été réalisé avec 2 cellules, celle livrée avec (Uccelo) et une Ortofon Cadenza Blue et dans les 2 cas la musicalité est bien au rendez-vous avec des différences comme on peut s'y attendre, ce sera alors histoire de goût personnel, mais cette platine reste très neutre et c'est un excellent point.
Il est bien sûr possible de la faire évoluer (comme beaucoup de platine Transrotor) en mode "Référence" et bien entendu de choisir une cellule plus haut de gamme entre autre.
Avec cette ensemble une seule phrase me viens en tête........."Vive le vinyle"
François M.
