The Atoll IN50 Signature integrated amplifier replaces the famous Atoll IN50 SE. Of course, this model is designed and made in France. It offers a real power of 2 x 50w at 8 ohms and delivers 70w at 4 ohms.

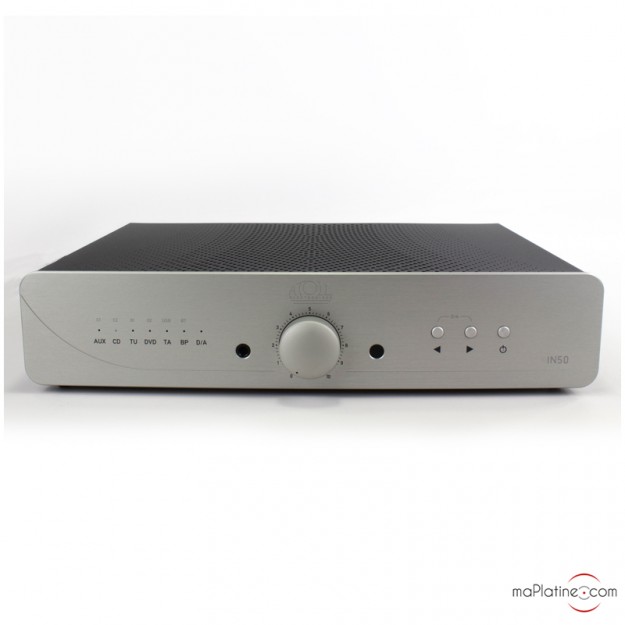

ATOLL IN50 SIGNATURE: CHASSIS AND FRONT PANEL
The IN50 Signature consists of a metal chassis of 1.5 mm with a new brushed-aluminium front panel available in black or natural. The top of the device is perforated for high heat dissipation.
The front panel takes up the design of the IN300 integrated amp.
In its centre, there is a volume potentiometer (with the remote control option). To the right of it, there are 2 buttons to select the desired input. To the left, 7 led indicate the selected input.
ATOLL IN50 SIGNATURE: INPUTS AND OUTPUTS
The Atoll IN50 Signature has 5 analogue inputs, 1 by-pass input, 1 double preamp output and 1 Tape in/out.
A 6.35mm Jack headphone output is also available on the front panel.
The 5 analogue inputs are the following: auxiliary input, CD input, tuner input, DVD and Tape input.
The by-pass input can connect a preamplifier. By choosing this input, the integrated amp becomes a power amplifier.
The double preamplifier output allows the IN50 Signature amplifier to be connected to one or two power amplifiers. So this amplifier becomes a preamplifier.
You can also connect a preamplifier output to a subwoofer.
ATOLL IN50 SIGNATURE: COMPONENTS
The Atoll IN50 Signature integrated amplifier receives several improvements in terms of components.
It is equipped with an electronic protection system. If the maximum power allowed is exceeded, the standby indicator flashes red for some seconds and then the amplifier automatically reduces the volume.
The printed circuit is gold/nickel double face. The toroidal transformer develops 170 VA.
The amplification is based on fully symmetrical stages with discrete components and the connecting capacitors are MKT technology.
The source selection is made via relay. The internal structure has been revised compared to the previous model, in order to have better performance and musicality.
ATOLL IN50 SIGNATURE: OPTIONS
The Atoll IN50 Signature can be controlled from the front panel, but it is equipped with an IR captor. So it can be controlled with the optional remote control.
The major new features are the options available at the input level:
- Instead of the auxiliary input, it can receive an Atoll P50 phono card (for MM cartridges) or an Atoll P100 phono card (for MM or MC cartridges). Equipped like that, you can listen to your favorite vinyl records.
- If you want to listen to your music from a computer (Mac or PC) or a tablet or other device, you need the Atoll Signature digital card, which is the one that comes standard with the IN300! It offers 2 coaxial inputs in 24 bits/192kHz and 2 optical inputs, also in 24 bits/192kHz, as well as an asynchronous USB-B input in PCM from 16 bits to 32bits up to 384kHz and DSD64 and DSD128. There is also a Bluetooth receiver in direct digital connection to the AKM AK4490 audio converter.
- It is also possible to add the Atoll SPDIF digital card. This one is simpler, without USB and Bluetooth, only 2 SPDIF and 2 optical inputs.
ATOLL IN50 SIGNATURE: TEST AND LISTENING
The restitution of this integrated amplifier is similar to high-end products of the manufacturer. Indeed, the top of the spectrum is very light and detailed without aggressiveness. We find a clear mid-range with a lot of opening and fullness.
The Atoll IN50 Signature integrated amp has excellent dynamics and unrivalled precision. It has a real sense rhythm sense and respects the Forte without excessive projection.
On big orchestral masses, each instrument is well placed in space.
The bass is particularly well held and expressive, even with quite recalcitrant speakers.
This integrated amplifier is well associated with entry-level or mid-range bookshelf speakers or tower speakers..
The Atoll IN50 Signature integrated amplifier is a real evolution of Atoll’s old model in terms of music, performance and evolution.
Recommended product! Franck
Power at 8 ohms: 2 x 50 W
Power at 4 ohms: 2 x 70 W
Transient power: 2 x 90 W
Bandwidth: 5-80 000 Hz
Signal-to-noise ratio: 100 dB
Sensitivity: 100 mV
Distortion rate: <0.05 %
Input impedance: 220 Kohms
Line inputs: 5
Tape input: 1
Headphone output: 1 x 6.35 mm Jack
Preamp outputs: 2
Capacitive total: 19 900 µF
Toroidal transformer: 170 VA
Option: SE remote control
Option: P50 or P100 phono card
Option: S/PDIF card
Option: NUM card
Finish: black or silver aluminium
Weight: 7 kg
Dimensions: 440 x 280 x 90 mm
