Amplificateur intégré Atoll IN200 EVO

Integrated amplifier

2 x 120 w/ 8ohms

Dual mono

Remote control

Made in France

Know more

Manufacturer : ATOLL ELECTRONIQUE

1 749,00 €

Restocking
Shipped within 3 to 5 working days Available within 1 or 2 weeks

+ -

Citelis paiement

Comment ça marche ?

1 Validez le contenu du panier
2 Choisissez paiement en 3 fois au règlement
3 Laissez-vous guider et validez
Need help ?
  • An attentive team

  • Quality products

  • Secure and fast shipping

  • Paiement sécurisé sans frais 3x dès 1500€ d’achat

Description

The Atoll IN200 EVO integrated amplifier is, as its name suggests, the ‘evolution’ of the Atoll IN 200 Signature. It fits logically between the IN 100 Signature and the IN300, but seems to be closer to the latter in several respects.

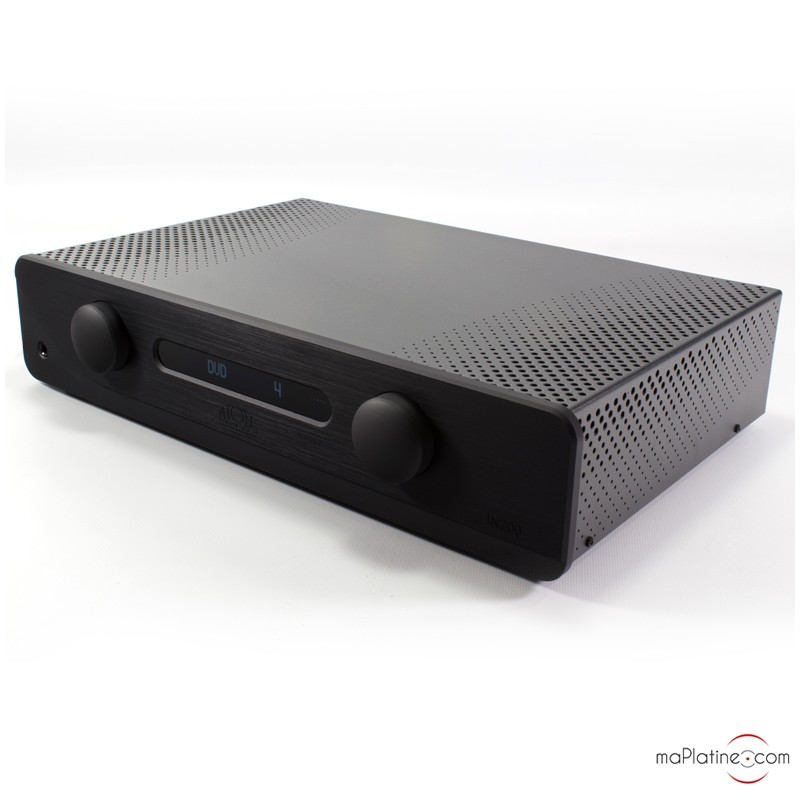

Atoll IN200 EVO: chassis and front panel

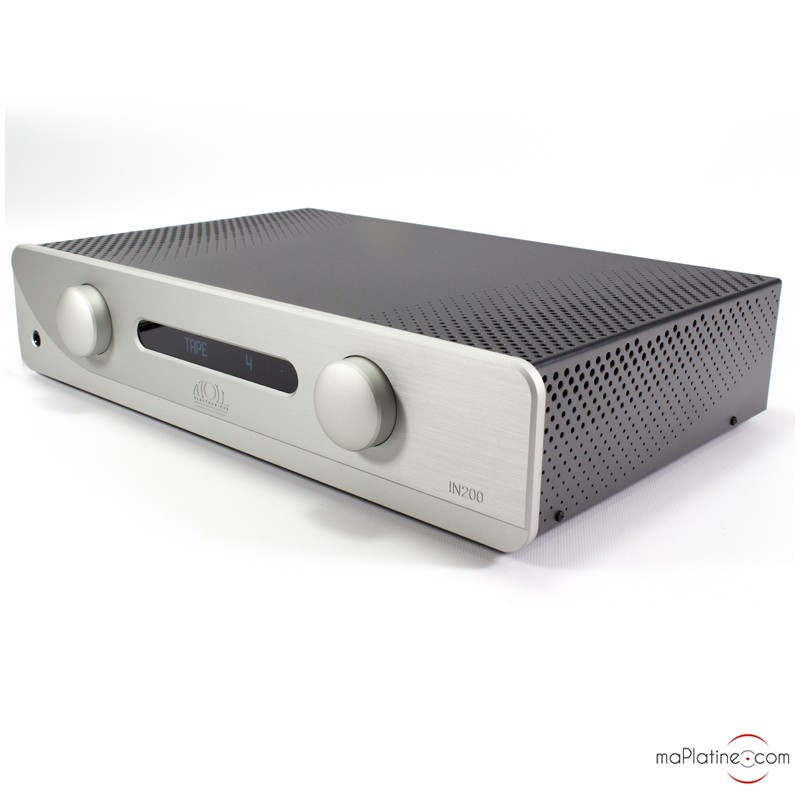

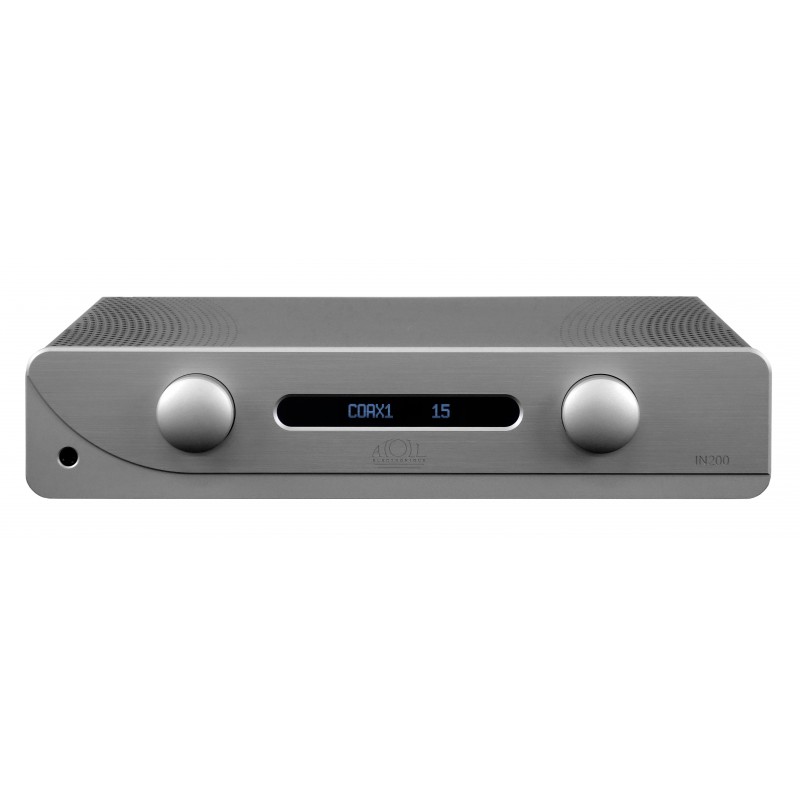

The IN200 EVO features a high-quality, 8mm-thick aluminium front panel and a 1.5mm-thick metal chassis. The rigidity of the whole prevents any mechanical vibrations.

Amplificateur intégré Atoll IN200 Signature

The top of the unit is perforated for better heat dissipation.

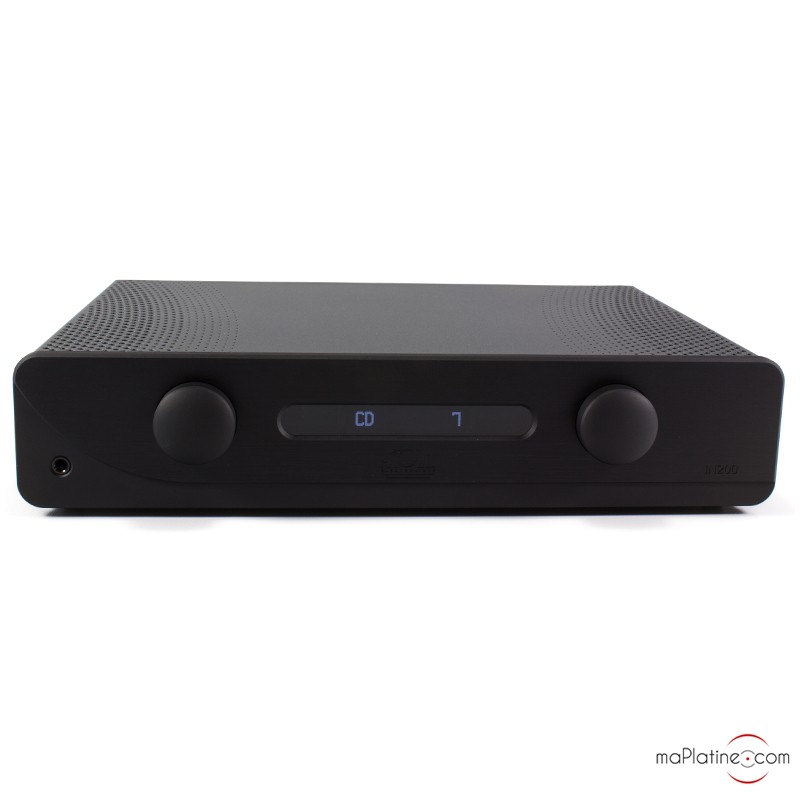

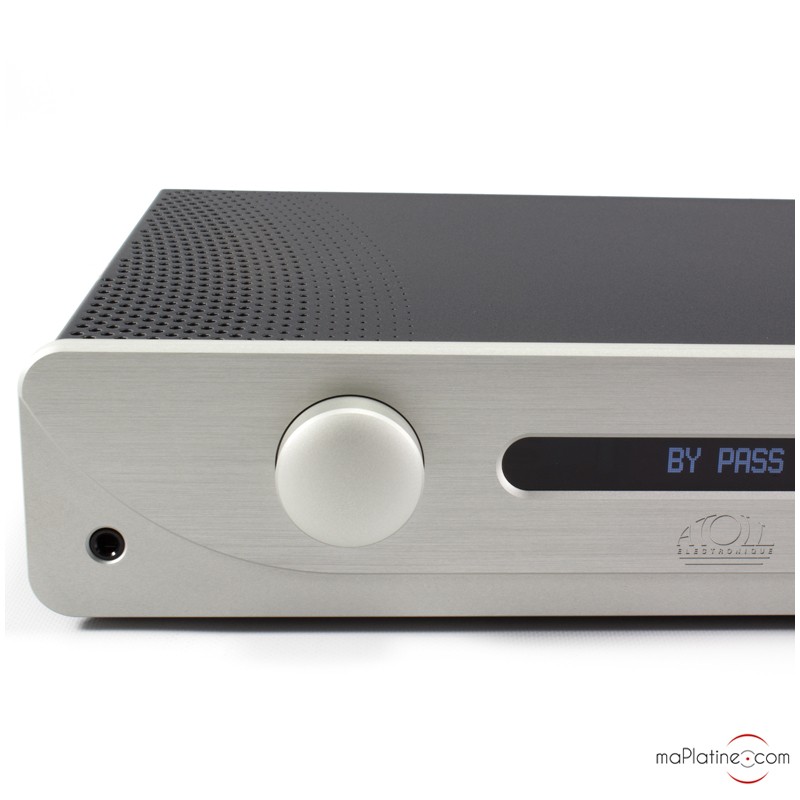

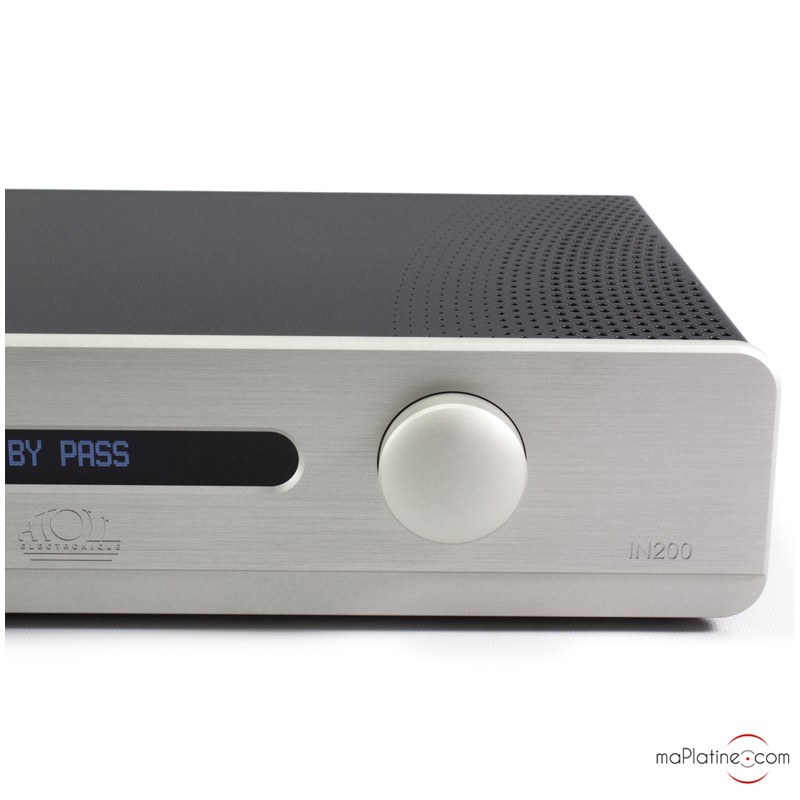

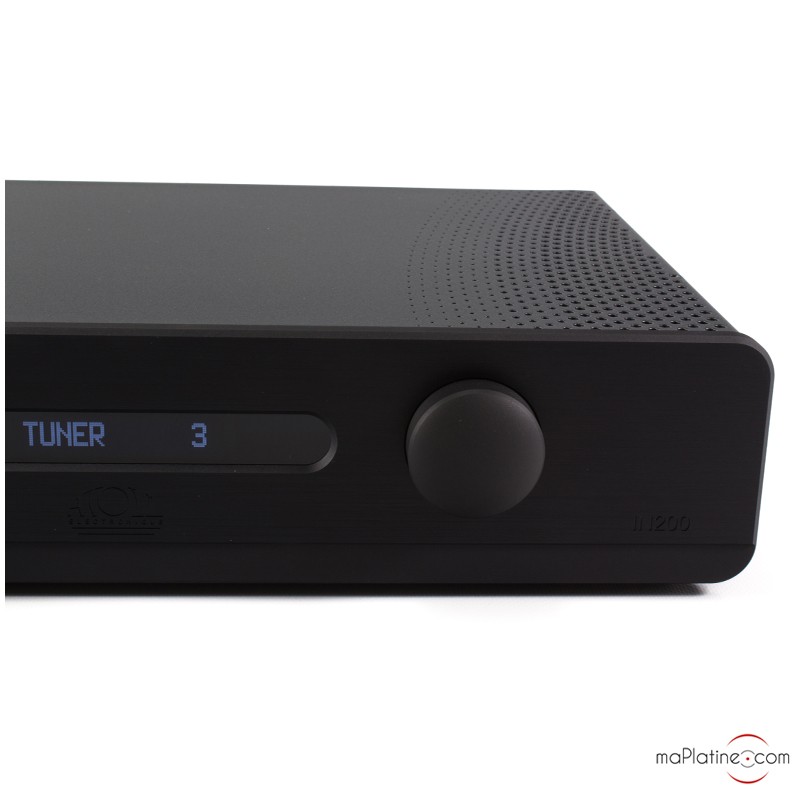

The controls on the front panel have been streamlined. All functions are available via 2 large ‘logic’ and ‘rotary’ buttons. These are used to switch on the device, select the source, manage the volume and adjust the balance.

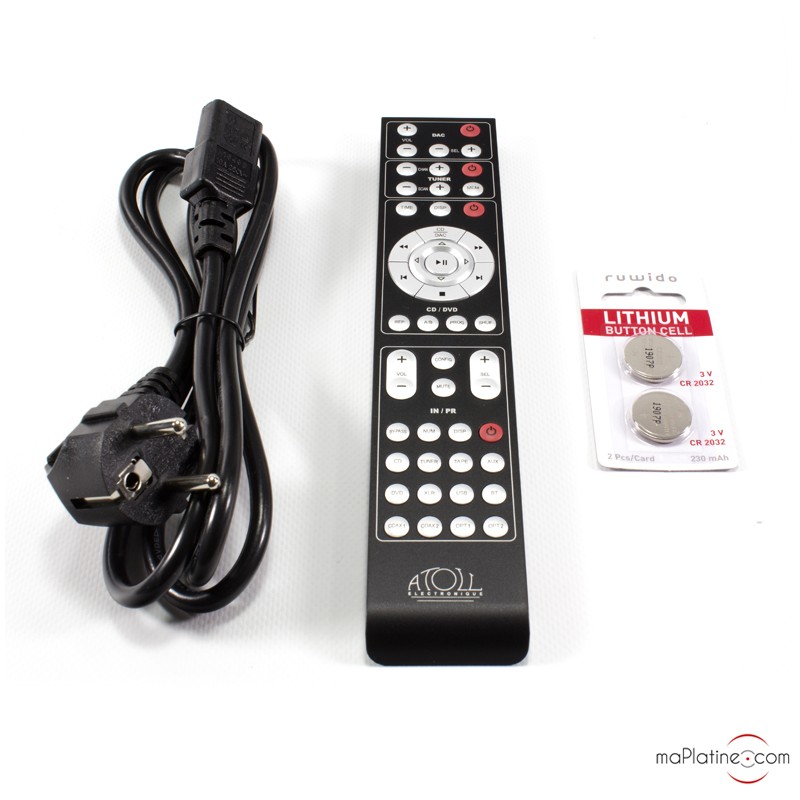

All these settings can also be accessed via the remote control supplied.

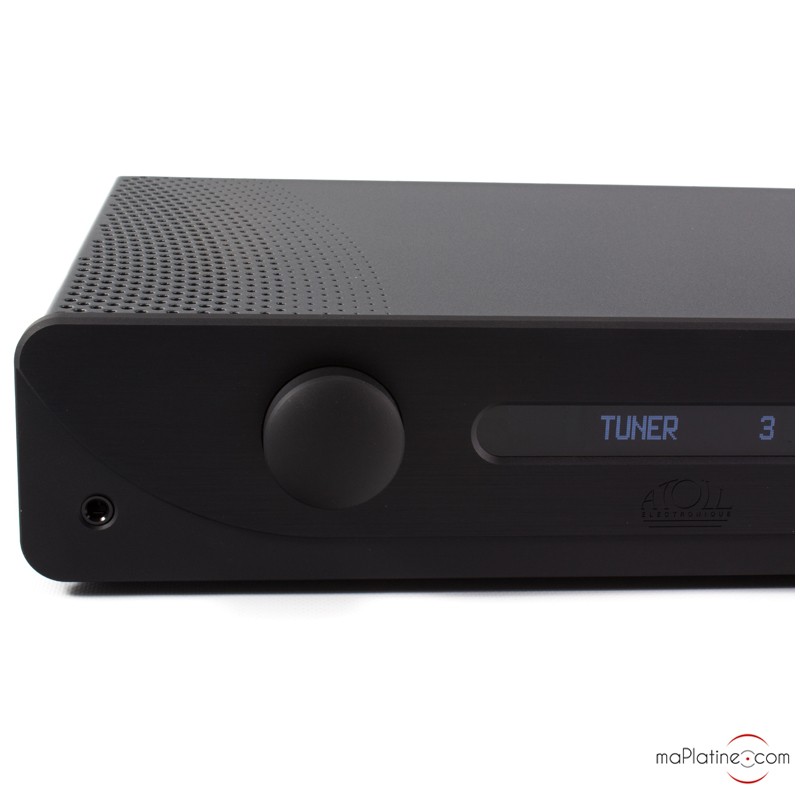

There's also a 6.35 mm headphone output on the front panel.

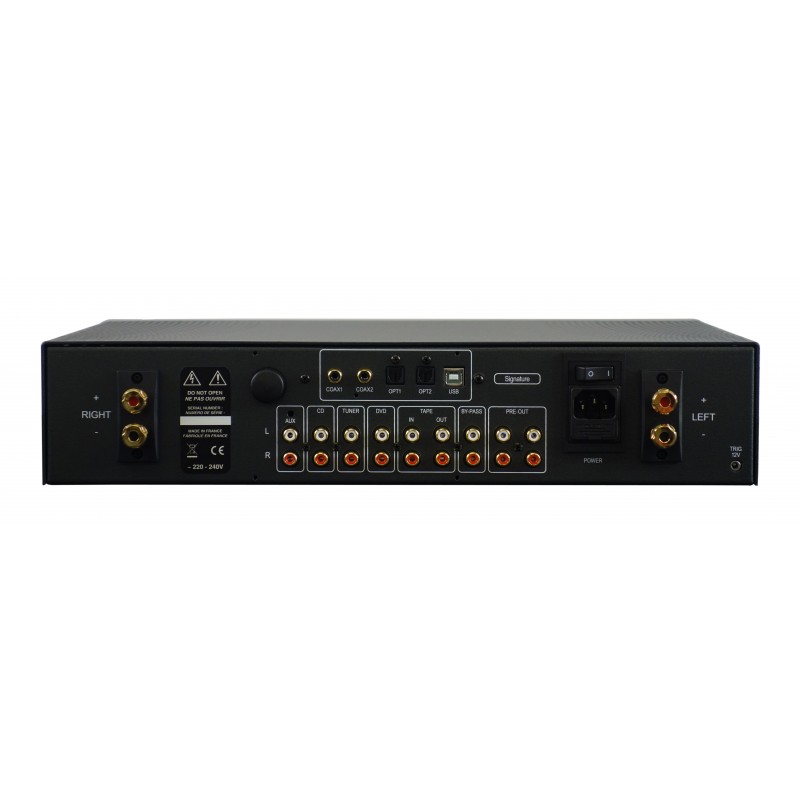

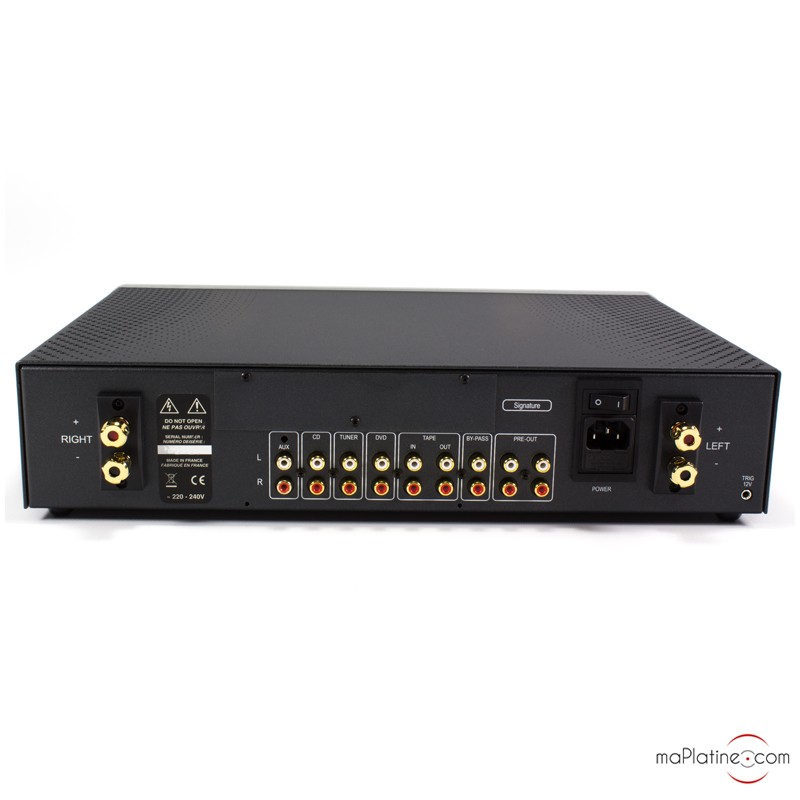

Atoll IN200 EVO: rear panel

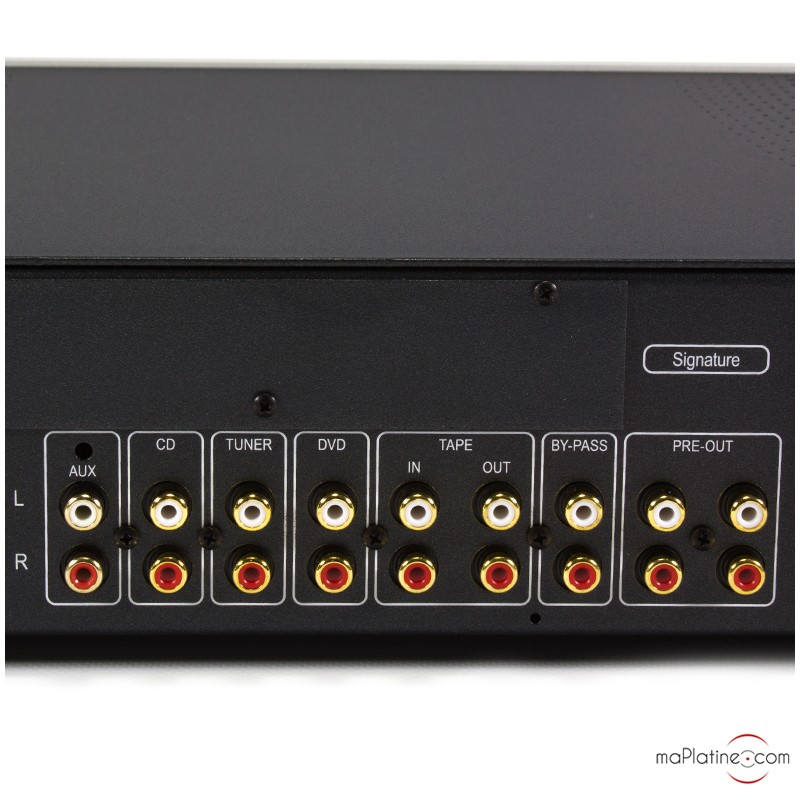

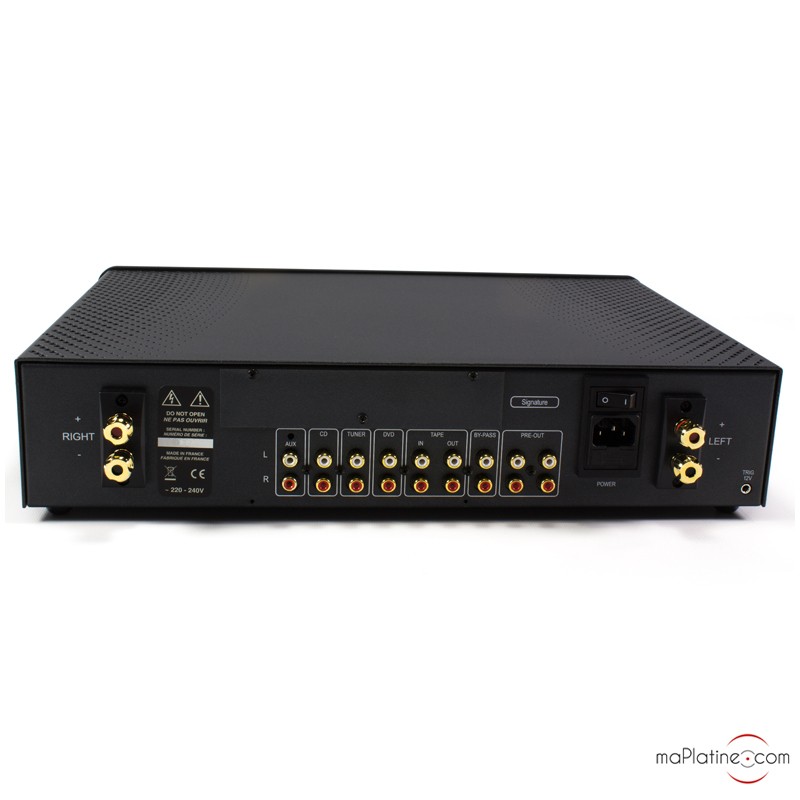

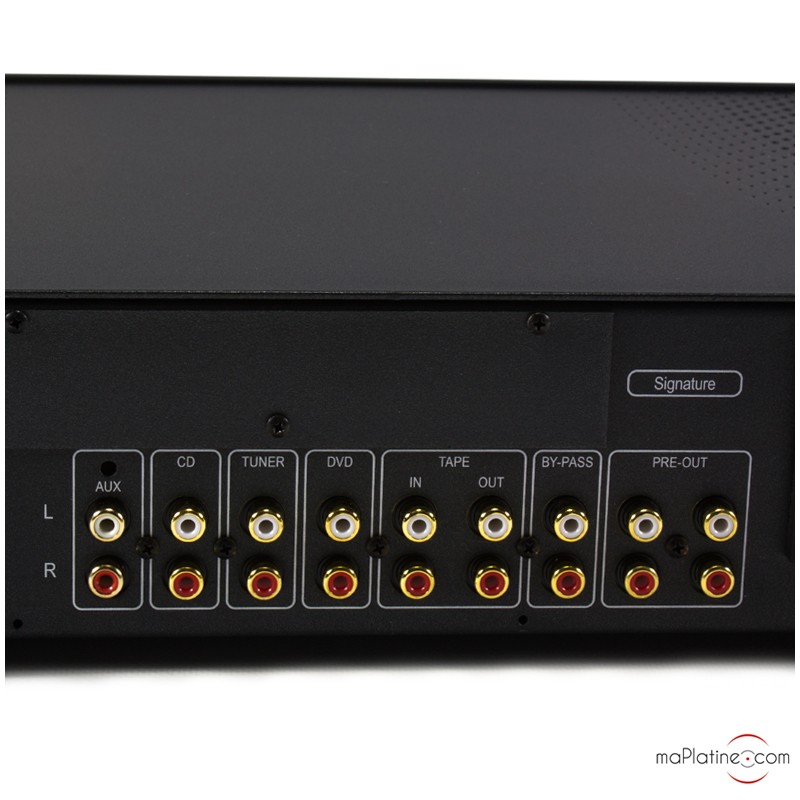

The rear panel features 4 analogue inputs, 1 tape input/output, 1 bypass input and a double pair of preamp outputs.

This double pair of preamp outputs allows either a power amplifier to be used on one output, or the 2 preamp outputs to be used to connect 2 power amplifiers (bi-amplification).

It is also possible to connect a subwoofer to one of the preamp outputs. The bypass input allows you to connect it to a processor or a home cinema amplifier.

Amplificateur intégré Atoll IN200 Signature

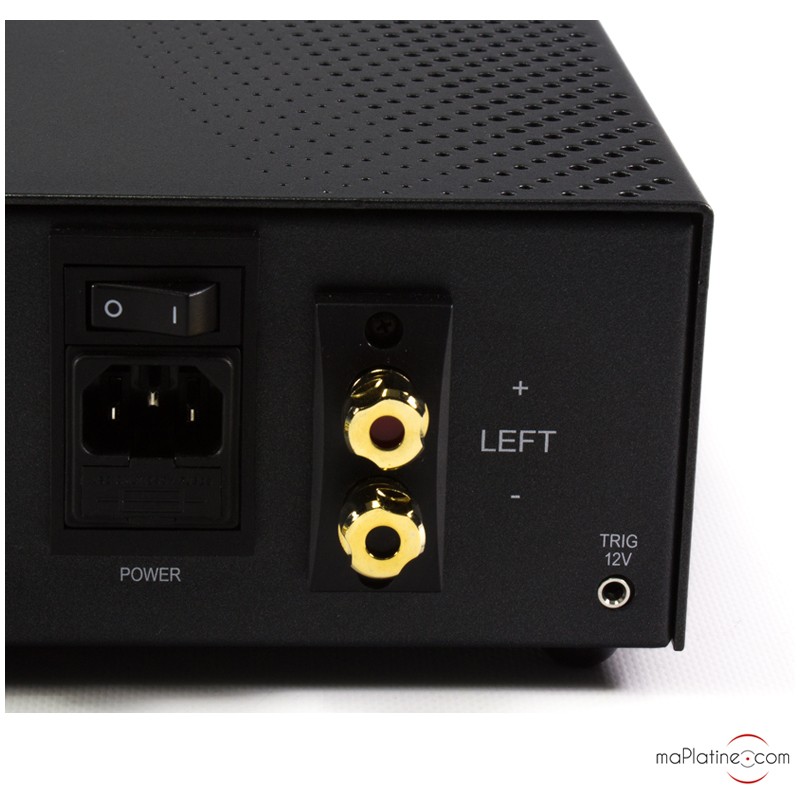

The two speaker outputs are at either end of the chassis. These new tellurium copper terminal blocks allow connection of speaker cables fitted with banana plugs or forks.

A plate hides the possible location (option) of an Atoll DA 100 or DA 200 digital card.

Atoll IN200 EVO: specifications

Internally, we find the IN200 Signature schematic but with a few modifications to the power supply in order to improve audio performance.

Atoll has installed one volume control per channel. These are identical to those on the IN300, and improve channel separation and therefore stereo and signal-to-noise ratio.

The audio stages are fitted with shielded Mundorf MKP capacitors, also similar to those on the IN300, which also improve the signal-to-noise ratio, but above all musicality.

All the stages are in double mono and are powered via 2 toroidal transformers of 340VA each. These 2 high-value transformers provide a comfortable listening environment for both the pre-amplification circuits and the power stages.

The Atoll IN200 EVO has a total capacitance of 86400 microfarads! The differential input stages are bipolar transistors and the output stages are MosFet transistors. The ESR capacitors are made to Atoll's specifications.

Power is comfortable with 120Wrms/8Ω and 200Wrms/4Ω, i.e. 2 x 30W in pure class A. This means it can be used with a wide range of Hi-Fi speakers, even those with a reputation for being difficult to drive.

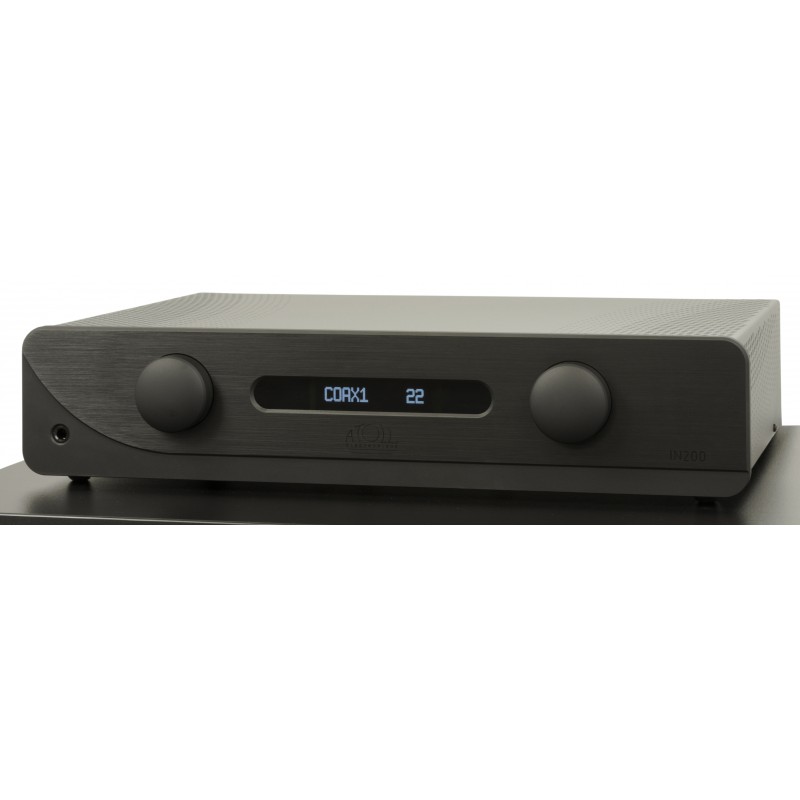

A specific low-consumption power supply (10VA) has been dedicated to managing the display and logic circuits. This power supply manages, among other things, the attractive window with the very low consumption OLED Display.

Atoll IN200 EVO: test and listening

Listening to this Atoll IN200 EVO integrated amplifier, we find all the qualities that made its predecessor such a success, but with clear improvements in terms of transparency and dynamics.

Of course, you'll find all the neutrality associated with the brand.

Bass response is exceptional for a product in this range. It does as well as many of its competitors, who charge 2 or 3 times more!

The midrange is very precise and realistic.

Voices show no harshness or imprecision. We are easily projected into the recording environment.

With a pair of Hi-Fi speakers of the same quality and a source of the same level, the reproduction of the Atoll IN200 EVO is faultless in its neutrality, realism and musicality.

If you're dreaming of the Atoll IN300 integrated amp but don't have the budget, this IN200 Signature is for you! What's more, you can add an Atoll P100 phono card and the excellent Signature DA 200 digital card.

Highly recommended!

Franck

Power at 8 ohms: 2 x 120 W/8 Ohms

Frequency range: 5 Hz -100 000 Hz

Signal-to-noise ratio : 100 dB

Sensitivity: 100 mV

Input impedance: 220 kOhms

Distortion rate: <0.05

Line inputs: 4

Tape: in/out

Bypass: 1 x RCA

Headphone output: 6.35mm

Preamp output: 2 for bi-amplification

Trigger output: 12V

Total capacitance: 62 000 µf

Transformers: 2 x 340 VA + 10 VA

Remote control: yes

Option cards: Phono P100 and digital cards DA200 and DA 100

Weight: 12 kg

Dimensions: 440 x 309 x 95 mm

Banc d'essai - Haute-Fidélité

2.03 Mo - pdf

Awards

Awards

Haute Fidélité

Meilleur achat
Customer reviews
(5 reviews)

Customer reviews

5/5
09/08/2023

IN 200 SIGNATURE

Bien reçu mon ampli dans un super colis .par rapport a mon taga htb 1200 il n y a pas photo , son clair net et precis .cd jolida mk2?ampli atoll in 200 courbet 4 et cablage cardas .le son est tres propre par rapport au taga moins brouillon . MA PLATINE EST TOUJOURS AU TOP

09/08/2023

09/09/2023

Mon ampli atoll est bien arrivé super colis bravo ma platine . Aprés une premiére ecoute je suis satisfait ;Il remplace mon taga harmony 1200 htb equipé d une mullard et 2 rca n o s .le atoll est superieur dans tous les registres c est clair net et precis ;mon installation cd jolida mk2, ampli atoll 200in signature, enceintes courbet 4,cables cardas .BRAVO MA PLATINE

07/04/2022

IN 200 Signature

En remplacement d'un Roksan K1 (20 ans) , j'utilise cet IN 200 Signature avec la plus Grande Satisfaction . Il faut être passiant , nécessite une mise sous tension de plusieurs jours pour un Rodage effectif . Puis c'est du pur plaisir !!. Tout est Magnifique !!. Très Belle restitution sur tout le registre avec une très Ample Dynamique , même a volume réduit . Tout y est. Le rendu sonore est Magnifique sur toutes les sources utilisées : Platine Vinyle , Transport CD (DR 200 Signature) , DAC sur Ordi. Très équilibré sur toutes ces sources , avec une grande précision , une multitude de détails sur les bons enregistrements. On perçoit bien la différence de qualité de toutes ces sources . Et puis , produit de très Bonne conception et de Grande Qualité. Que du Bonheur. Bernard

06/12/2022

Superbe

Vraiment splendide, habitué depuis bientôt 20 ans à mon IN100, ce nouvel Atoll IN200S l’aura pulvérisé dés les 1ères écoutes. Certes on pourrait parler d’une tenue des basses exceptionnelle (même à faible volume) de transparence et de dynamique, mais ce qui prévaut avec cet amplificateur c’est le plaisir d’écouter de la musique pendant des heures sans la moindre question, tout passe comme une évidence.
Je suis enchanté de mon achat.
Donc un grand merci aux frères Dubreuil et aux équipes Atoll pour faire vivre cette merveilleuse marque d’électronique et également à l’équipe de Maplatine pour son professionnalisme.
Yannick D.
