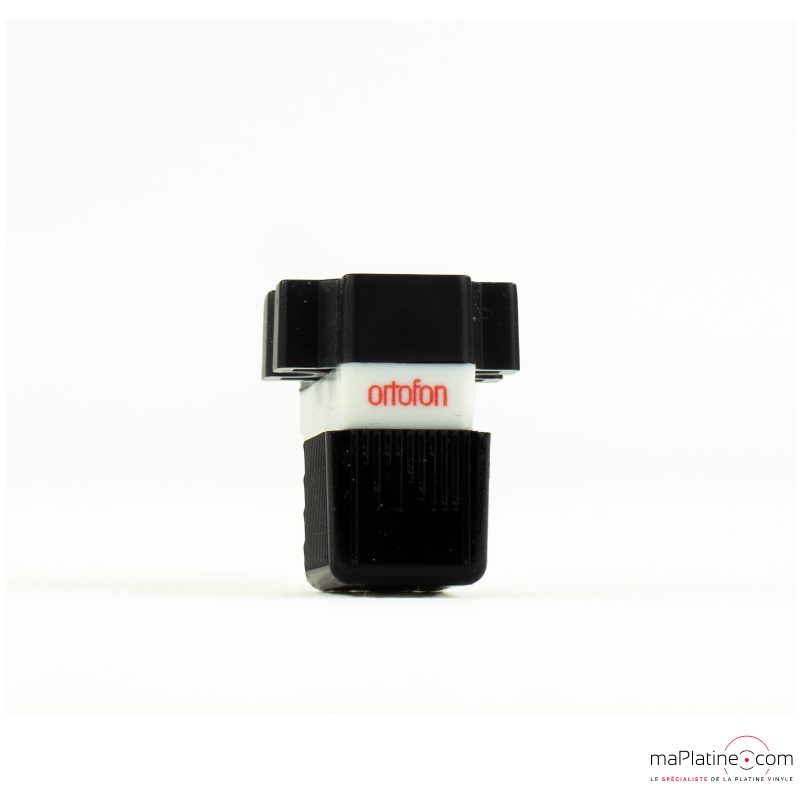

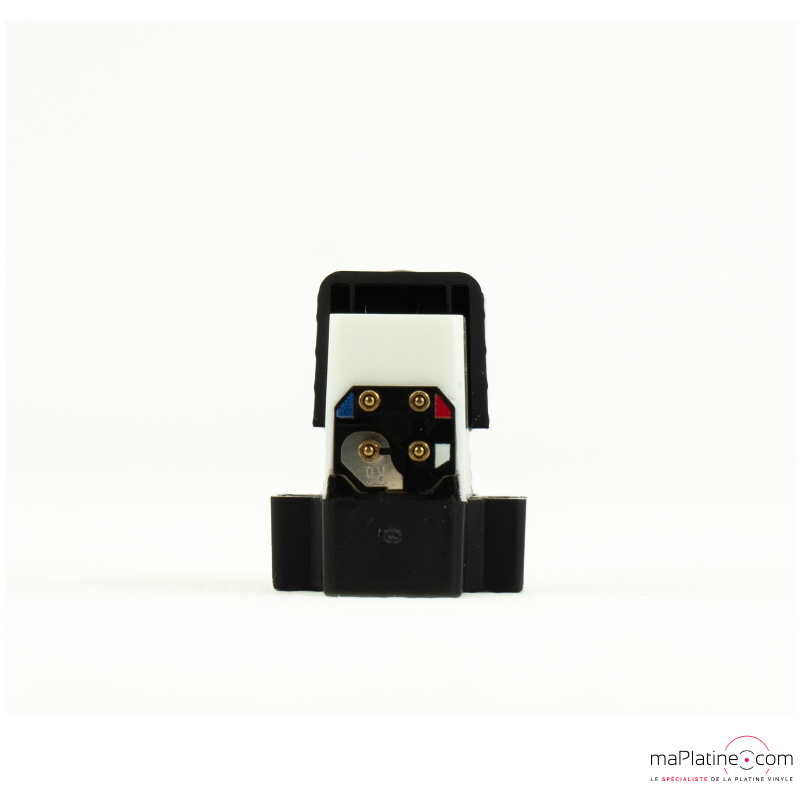

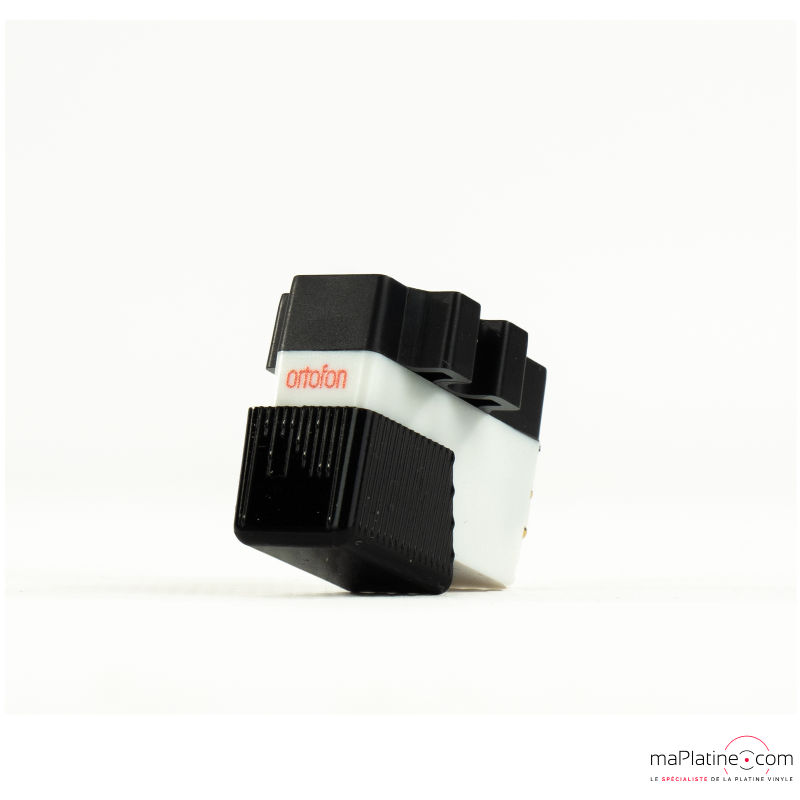

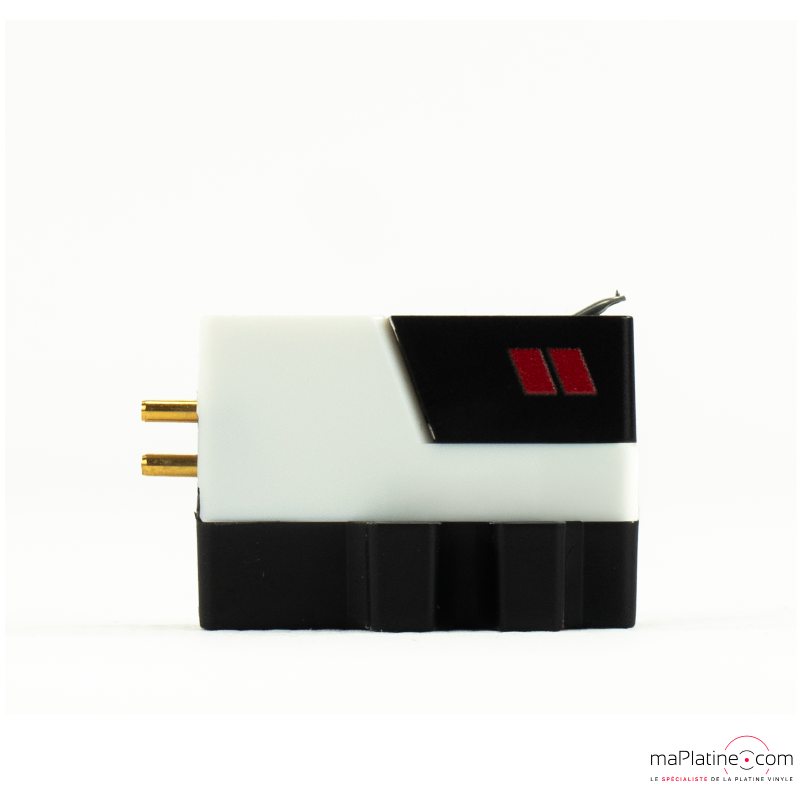

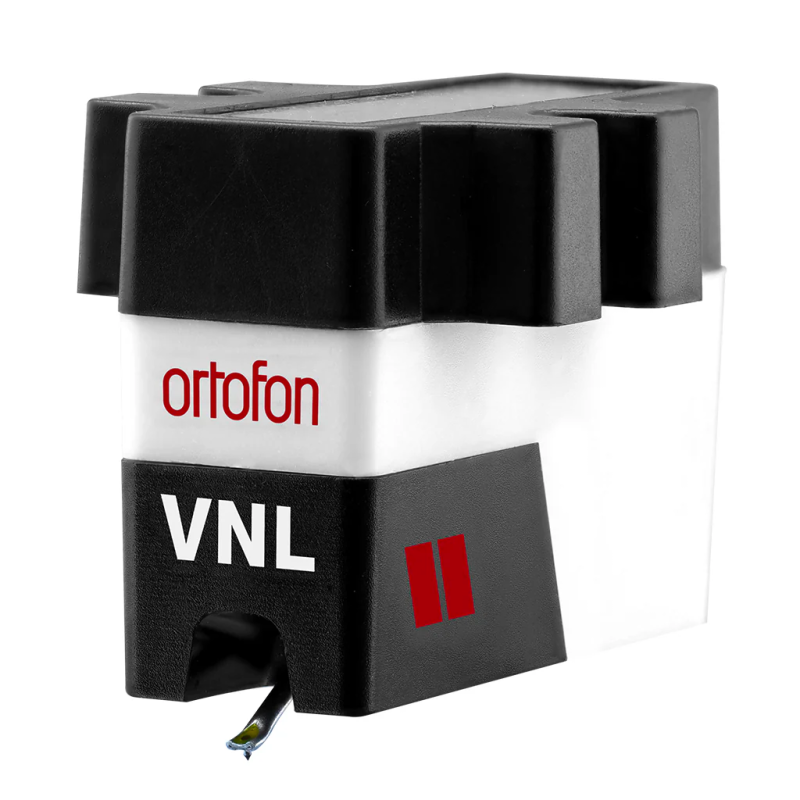

DJ ortofon VNL cartridge + 3 stylus

Spherical stylus

Made in Danemark

Know more

Manufacturer : ORTOFON

160,00 €

Available
Shipped within 3 to 5 working days Available within 1 or 2 weeks

+ -

MPLSEOR232

Need help ?
  • An attentive team

  • Quality products

  • Secure and fast shipping

  • Paiement sécurisé 3x sans frais dès 400€ d’achat

Description

Experienced DJs constantly need specialized tools, which pushes them to go further in their quest for innovation. These DJs constantly seek to push the boundaries of performance and discover new artistic dimensions.

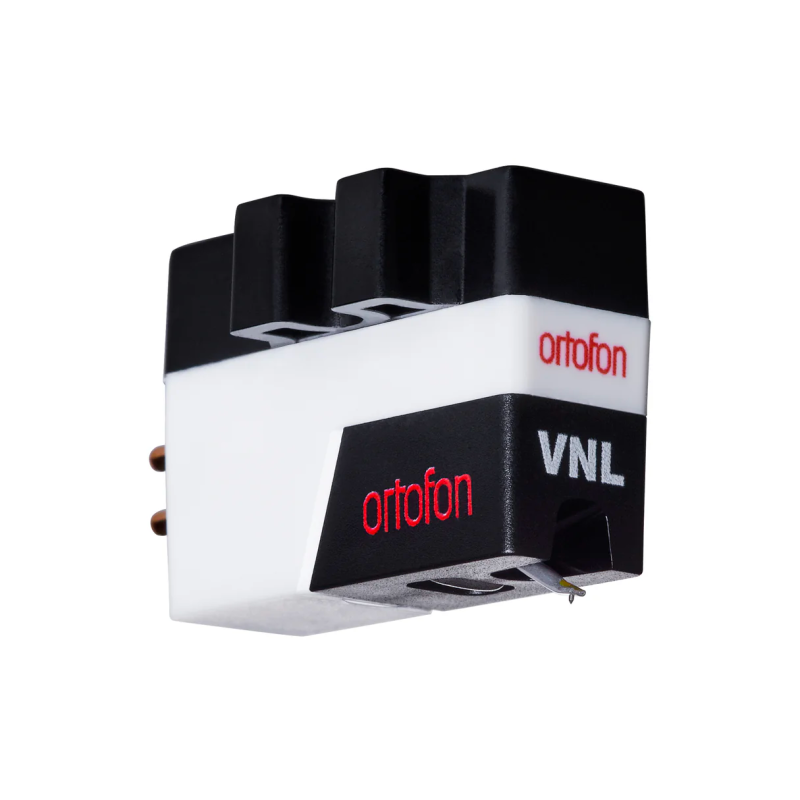

It is on this basis that Ortofon developed this new VNL cartridge, carefully designed to meet the demands of modern DJs.

The Ortofon VNL cartridge has a range of features and improvements. It is equipped with a spherical stylus specially designed for following difficult furrows, which makes it ideal for intensive use.

Additionally, its design minimizes disc wear during scratching and back-cuing. The VNL cartridge guarantees high tracking performance, suitable for traditional DJ and vinyl setups. These performances are complemented by a harmonious balance between output power and sound reproduction.

The VNL comes with 3 styluses, VNL I, II and III.

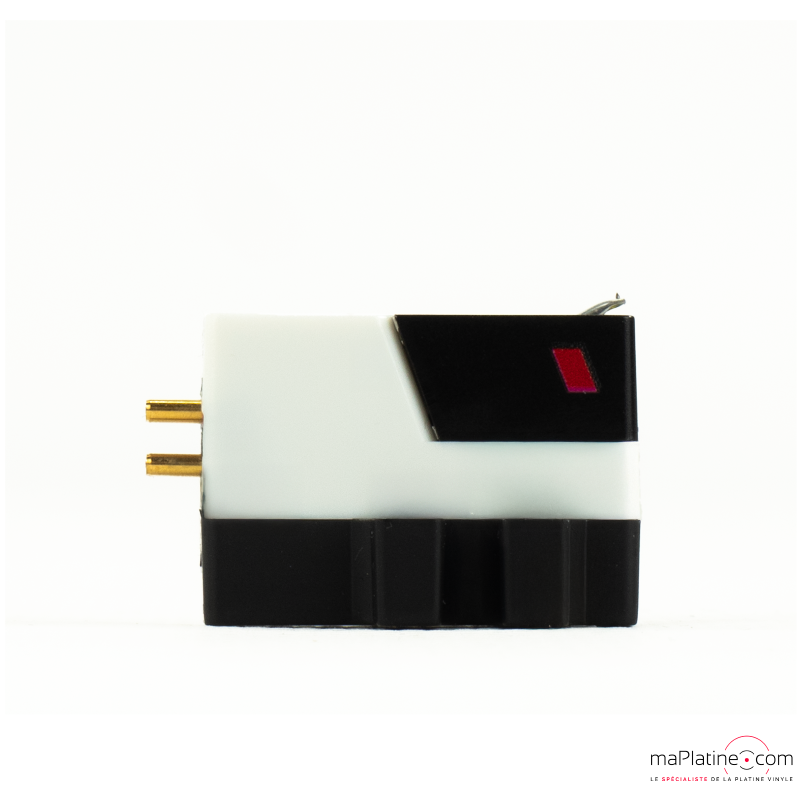

Stylus VNL I : Compliance, Dynamic Lateral 16 μm/m N = Souple

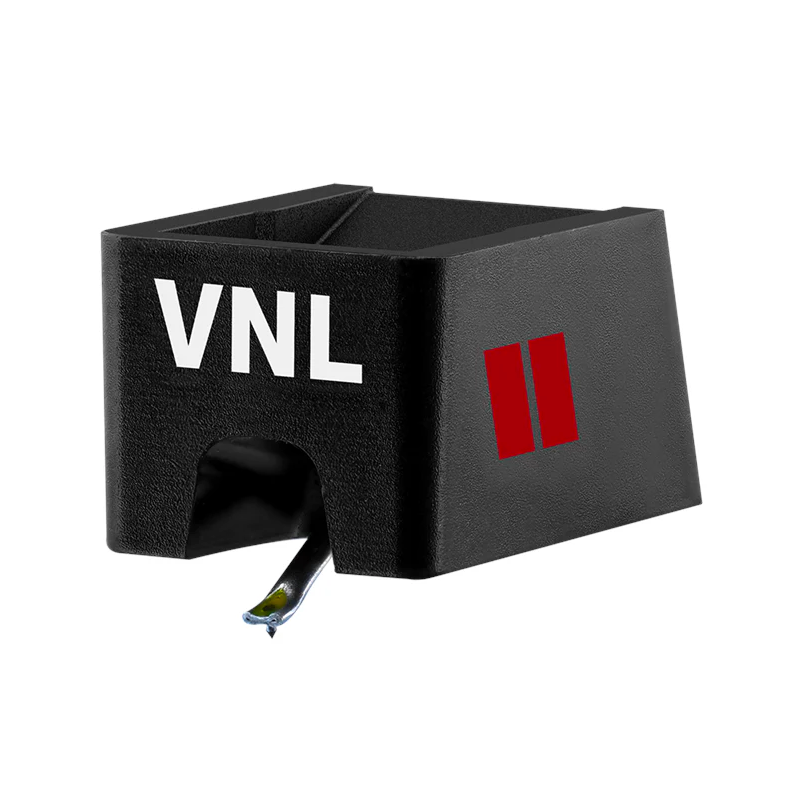

Stylus VNL II: Compliance, lateral dynamics 15 μm/m N = Rigid

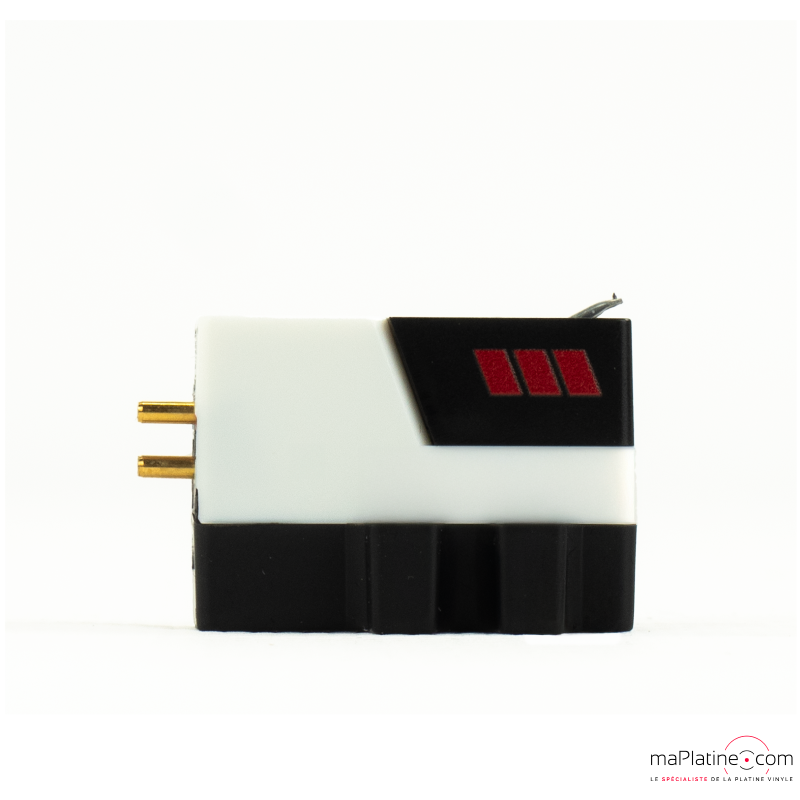

Stylus VNL III: Compliance, dynamic lateral 14 μm/m N = Firm

Franck

Channel balance at 1 kHz: 1.5 dB

Output voltage at 1 kHz, 5cm/sec: 8 mV

Channel separation at 1 kHz: 25 dB

Frequency response: 20 Hz - 20 kHz ±3 dB

Tracking capacity at 315 Hz: 80 μm

Compliance, dynamic, lateral: 6 μm/mN

Stylus: spherical

Pen tip radius: R 18 μm

Support force: 4 g

Tracking angle: 20°

Load resistance: 47 kOhms

Load capacity: 200 - 400 pF

Internal impedance: 1000 Ω
