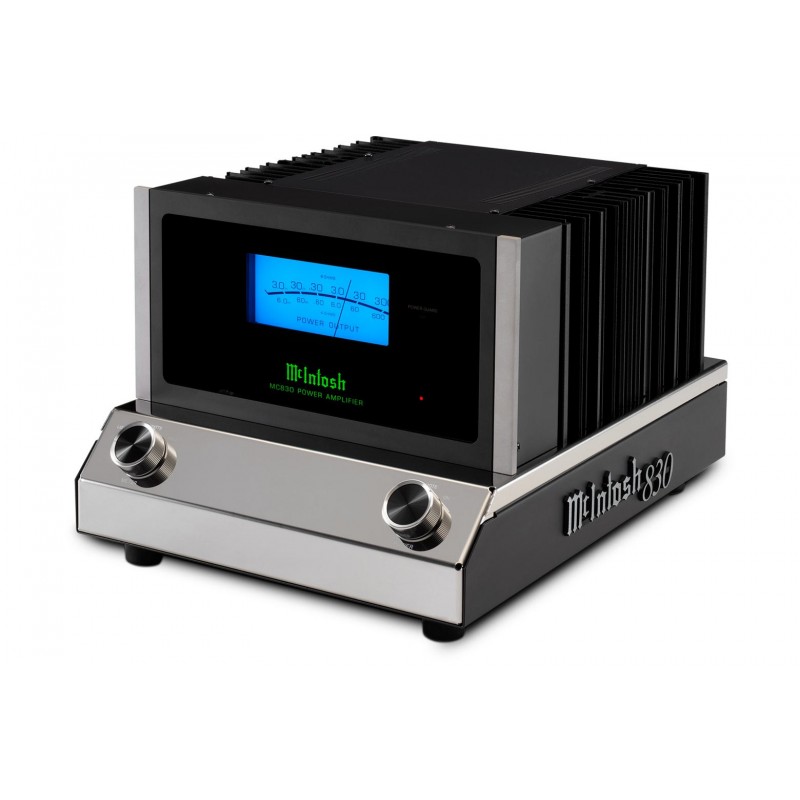

Intosh MC830 mono MC amplifier

The Mc Intosh MC830 mono amplifier is a amplifierSingle-channel semiconductor power.
It features the famous open chassis similar to the popular MC275 tube amplifiers and theintegrated amplifier Mc Intosh MA 252And Mc Intosh MA 352 integrated amplifier..

Intosh MC830 mono MC amplifier: FRONT PANEL

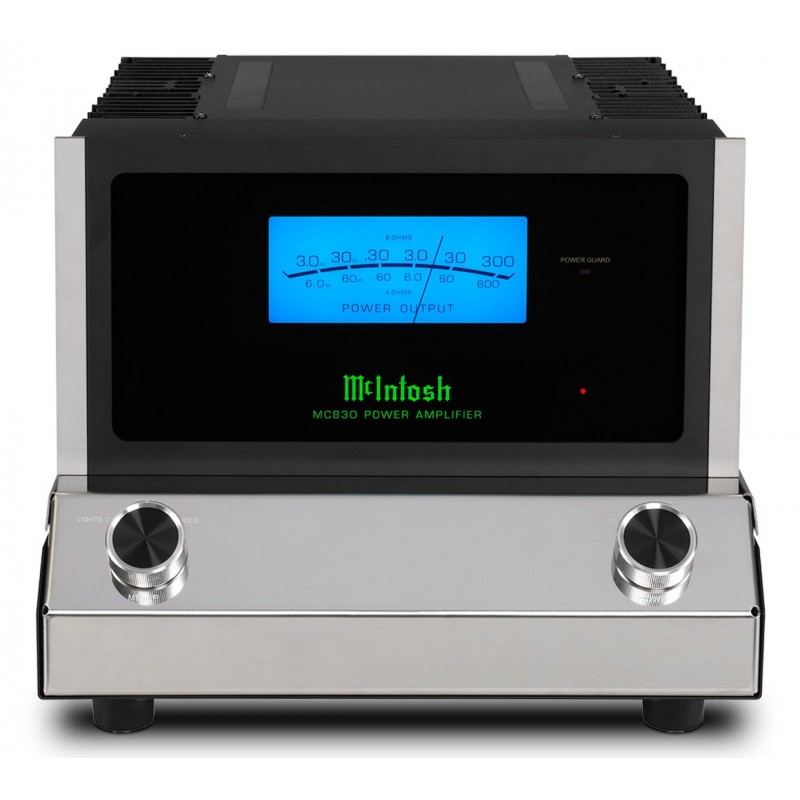

The facade is imposing, true to the tradition of the American manufacturer. The control panel is made of polished stainless steel, like a mirror. This panel, which is inclined, is equipped with two rotary knobs. The one on the left controls the display lighting, and the one on the right controls the power.

The Mc Intosh MC830 mono amplifier features a black glass front panel housing a blue wattmeter. Below it is the traditional illuminated green logo.

Monoblock MC Intosh MC830 Amplifier: CONNECTIONS

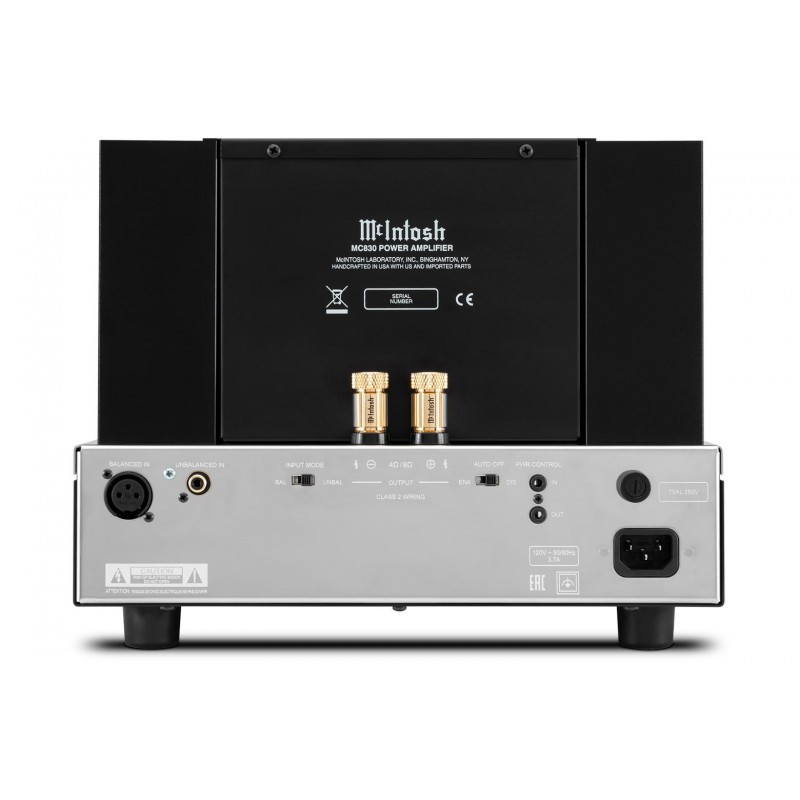

The back of the device features a speaker output on beautiful proprietary terminals. These patented Solid Cinch™ speaker terminals accept banana plugs and forks. They are plated to prevent corrosion and ensure the transmission of an audio signal of excellent quality.

The input (Mono) is done via an RCA or a female XR connector. The power input is in IEC 10A format, allowing the connection of a high-quality power cord.

Mono MC amplifier Intosh MC830: TECHNICAL

The Mc Intosh MC830 mono amplifier is a direct-coupled output amplifier with a rated power of 300 watts at 8 ohms or 480 watts at 4 ohms. A dual-scale, fast-response wattmeter provides an accurate reading of the output power for both speaker impedances (4 and 8 Ohms).

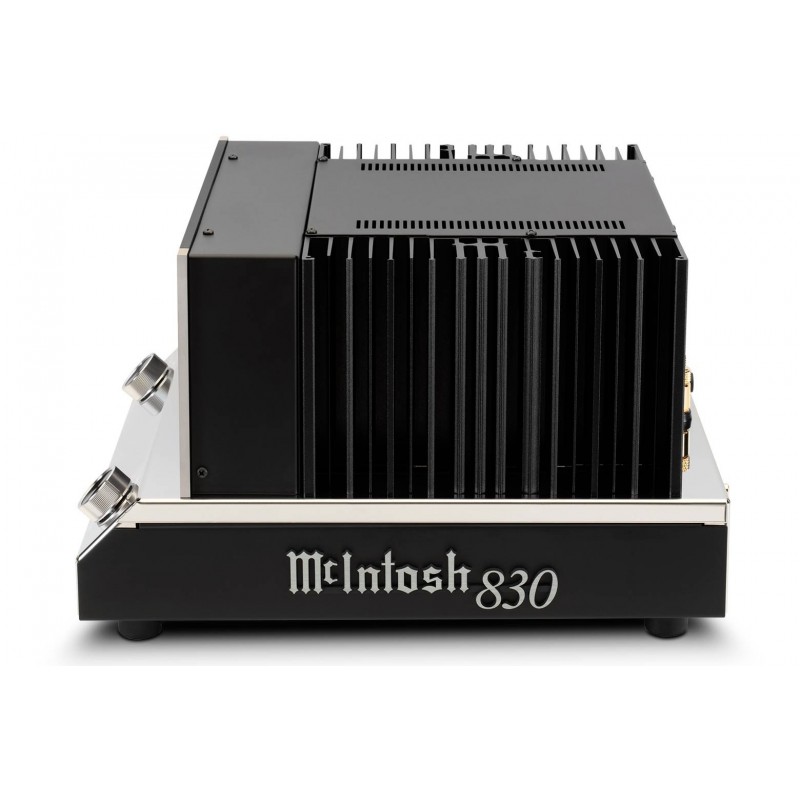

The Monogrammed Heatsinks™ allow the Mc Intosh MC830 mono amplifier to manage the temperature rises of the components. To protect your speakersAnd your entire system, the Mc Intosh MC830 mono amplifier integrates Power Guard® which monitors the amplifier's output signal to protect the speakers from any overload.

If necessary, it performs real-time micro-adjustments of the input signal to prevent any clipping that could damage the speakers.

Added to this is the Sentry Monitor™. This fuse-less short-circuit protection circuit disables the output stage of the Mc Intosh MC830 mono amplifier before the current exceeds safe operating levels.

It automatically resets when operating conditions return to normal. The user-selectable auto shut-off function turns off the MC830 after 30 minutes if no audio signal is present.

Intosh MC830 Mono MC Amplifier: TEST AND LISTENING

We logically paired a pair of Mc Intosh MC830 mono amplifiers with the Mc Intosh C8 preamplifierFrom the manufacturer. But we also obtained excellent results with our reference preamp (Audio Research).

From the very first measurements, it is clear that there is a significant power reserve. The Mc Intosh MC830 mono amplifier can drive the majority of speakers on the market without any problem, even the most challenging ones.

The dynamism and punch he demonstrates are remarkable.

Large bass speakers do not intimidate it; it masters them perfectly and offers them an uncommon articulation. Moreover, in all cases, the Mc Intosh MC830 mono amplifier remains refined and very nuanced.

The midrange is precise and present without showing any aggressiveness. The high end of the spectrum is perfectly integrated with the other registers and also contributes to the beauty of this amplifier.

It is also noticeable that the soundstage is wider and more precise than most amplifiers in this range.

It is indeed a Mc Intosh amplifier.

Highly recommended +++
