Description

The Cambridge Audio CXA60 integrated amplifier is replaced by the Cambridge Audio CXA61 integrated amplifier.

Cambridge Audio has been designing and producing Hi-Fi equipment since 1968.

The Cambridge Audio CXA60 integrated amplifier is both an amplifier and a digital-to-analogue converter (DAC). It can accommodate 4 digital sources and 4 analogue sources.

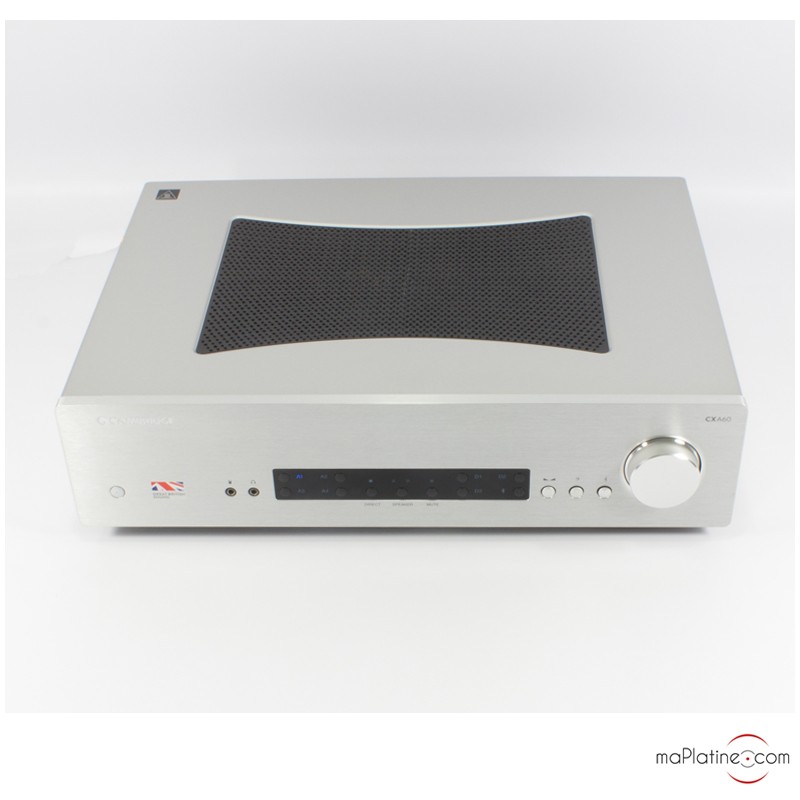

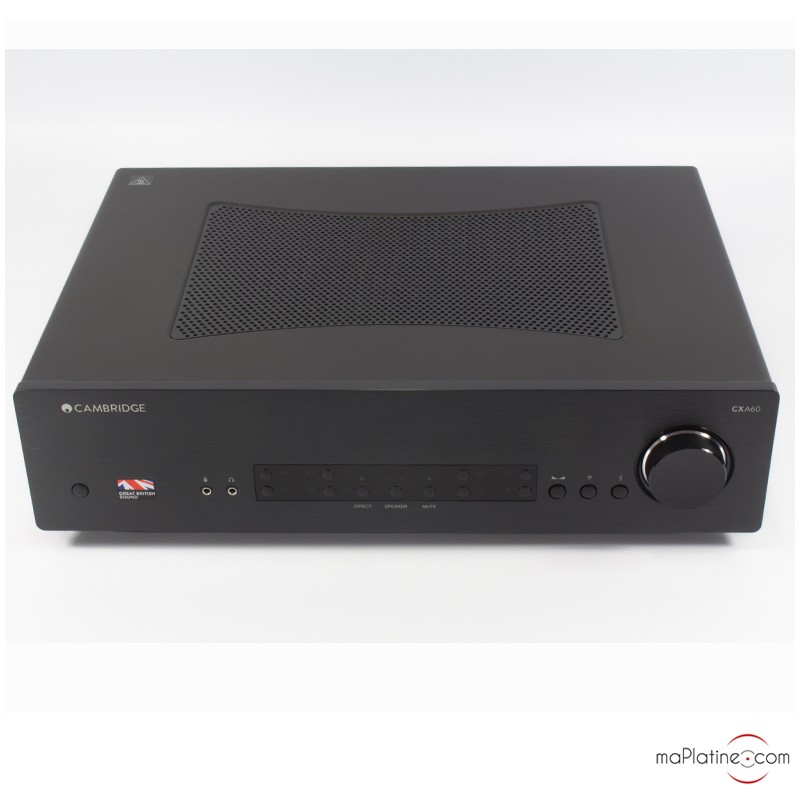

Cambridge Audio CXA60: front panel

It has a 100% metal anti-resonance housing that has been specially designed to reduce vibration as much as possible.

Cambridge Audio CXA60 integrated amplifier

On the front panel you’ll see a 3.5mm jack MP3 input. The front panel also features a 3.5mm headphone jack output, as well as 8 buttons for source selection.

On the right-hand side of this panel are 3 rotating buttons for adjusting the bass, treble and balance respectively. The ALPs volume potentiometer ensures excellent channel balance.

In the centre of the front panel is a Direct button, which disables the balance and tone controls.

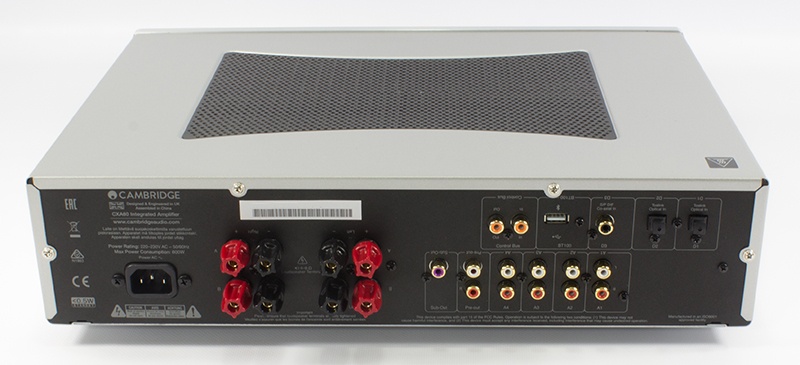

Cambridge Audio CXA60: back panel

It has 2 Toslink optical inputs, 1 S/PDIF coaxial input and 1 Bluetooth input. To use the latter, you'll need a Cambridge Audio BT100 audio receiver (optional). This receiver will enable you to stream your music wirelessly from any Bluetooth-enabled device (smartphone, tablet, etc.).

On the back panel of the device you'll find 3 stereo RCA analogue inputs.

The Cambridge Audio CXA60 amp has a preamp output, giving you the option of connecting it to a power amplifier if required.

It also has a sub out if you need to add a subwoofer to your system.

Cambridge Audio CXA60 integrated amplifier

Cambridge Audio CXA60: features

The CXA60 uses the high-end Wolfson WM8740 DAC for its digital to analogue conversion.

The internal layout of the printed circuit boards has been optimised to minimise left/right crosstalk and ensure excellent channel separation.

It uses a toroidal transformer to provide a power supply that is far superior to amplification circuits. This transformer also eliminates noise and hum. It is fully shielded to ward off internal and external interference and preserve signal quality.

The Cambridge Audio CXA60 amplifier also features CAP5 (Cambridge Audio Protection 5) technology, which protects the device from overcurrent, short-circuiting and clipping.

This system also features DC detection to protect the Cambridge Audio CXA60 from user errors, as well as overheating detection in case of insufficient ventilation.

This amplifier is a high quality Class AB amplifier. It can be used to power 2 pairs of speakers and thus create two listening areas.

Cambridge Audio CXA60: listening and review

And this wealth of experience is plain to see (and hear!) in the CXA60 amp.

The stereo imaging is quite simple remarkable.

This Cambridge Audio CXA60 integrated amplifier is a comprehensive and highly musical product – probably the best in its category, we would venture to say!



AWARDS:

Diapason d'Or - 2016

Franck

Power: 2 x 60W under 8Ω

Digital inputs: 2 x Toslink optical, 1 x S/PDIF coaxial, 1 x Bluetooth input (optional: BT100 Bluetooth dongle)

Digital inputs: 3 x stereo RCA inputs and 1 x 3.5mm jack MP3 input

Digital-to-analogue converter: DAC Wolfson WM8740

Frequency response: 5 Hz – 60 kHz

Preamp output

Sub-out

Headphone output: 3.5mm jack

Speaker output: A/B

Dimensions (H x W x D): 115 x 430 x 341 mm

Weight: 8.3 kg

Banc d'essai - Diapason

0.21 Mo - pdf

Awards

Awards

Diapason d'or

2016
