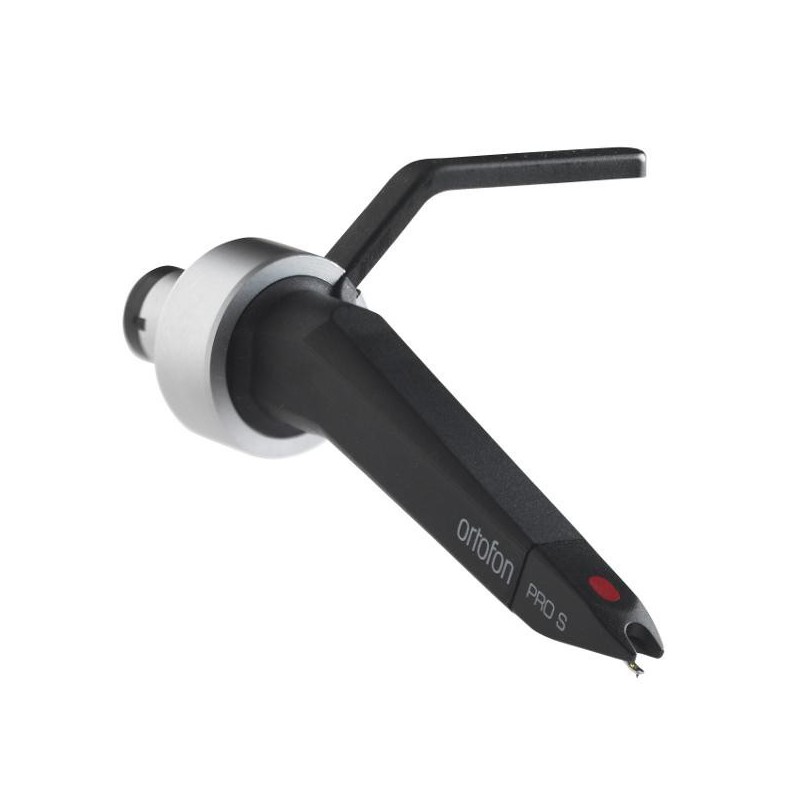

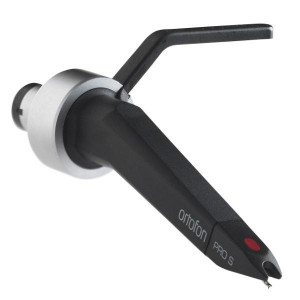

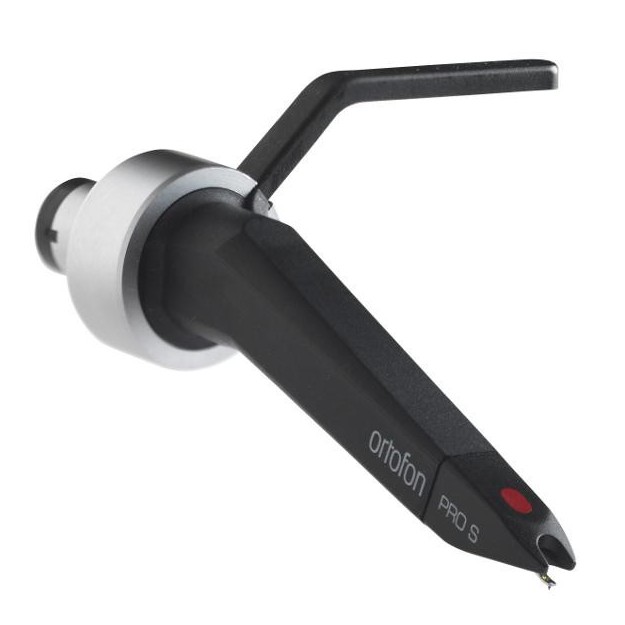

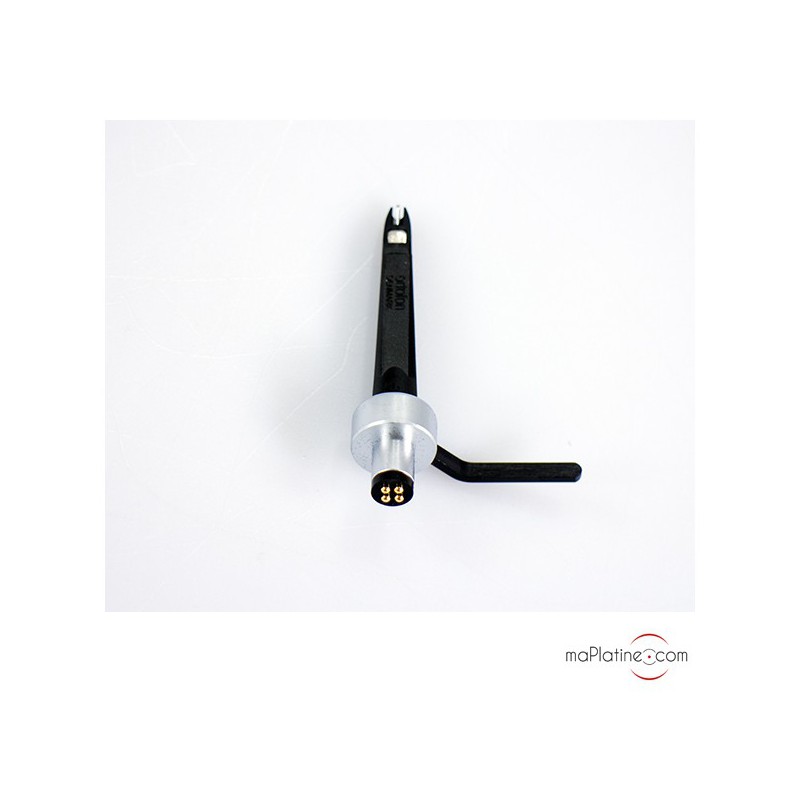

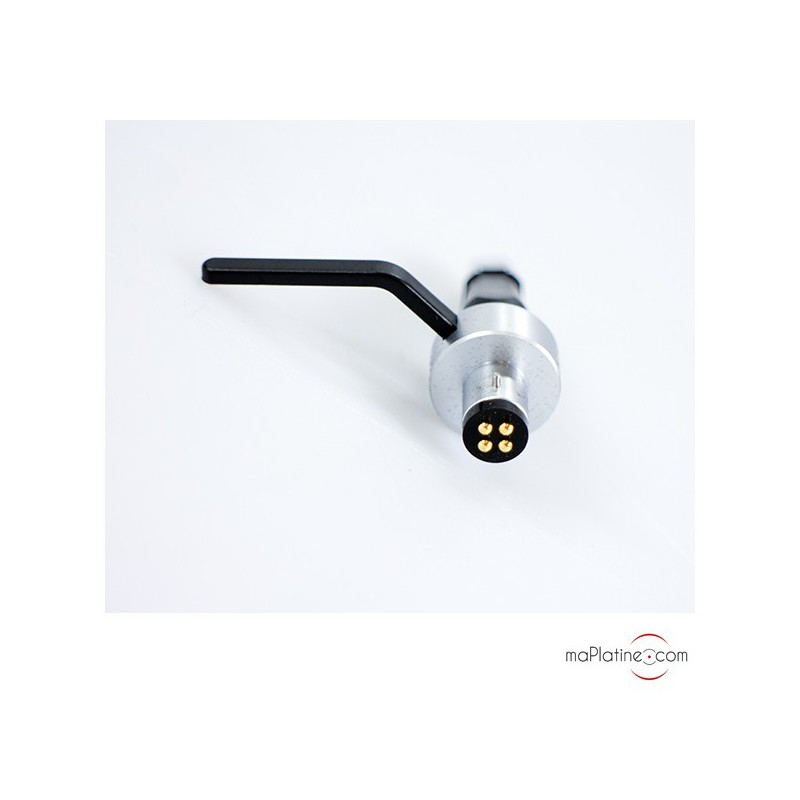

Ortofon CC PRO S-A DJ cartridge

Versatile, ideal for beginners

Know more

Product no longer available

Need help ?
  • An attentive team

  • Quality products

  • Secure and fast shipping

  • Paiement sécurisé 3x sans frais dès 400€ d’achat

Description

Output voltage at 1000Hz: 5cm / sec. 5 mV
channel balance at 1kHz: 2 dB
Channel separation at 1kHz: 20 dB
Channel separation at 20 kHz: 15 dB
Frequency range at -3 dB: 20 à 18,000 hz
Frequency response + 3 / -2 dB : 20 à 18,000 Hz
Tracking at 315 Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 7 pm / m N
Stylus type: Spherical
Stylus tip radius: R 18 um
Tracking force adjustment range: 3.0-5.0 g (30-50 mN)
Recommended tracking force: 4.0 g (40 mN)
Tracking angle: 20 °
Internal impedance, DC resistance: 750 Ohms
Internal inductance: 450 mH
Recommended load resistance: 47 KOhms
Recommended load capacitance: 200-600 pF
Weight:  18.5 g

Stylus replacement: PRO S A
