Cambridge Audio DacMagic 200M DAC

DAC D/A

Optical digital, coaxial digital and USB inputs

Dual ESS ES9028Q2M

32-bit/768 kHz or DSD512 (HiRes)

Bluetooth aptX

Know more

Manufacturer : CAMBRIDGE AUDIO

499,00 €

In stock
Shipped within 3 to 5 working days Available within 1 or 2 weeks

+ -

Need help ?
  • An attentive team

  • Quality products

  • Secure and fast shipping

  • Paiement sécurisé 3x sans frais dès 400€ d’achat avec Alma

Description

The new Cambridge Audio DacMagic 200M digital-to-analog converter (DAC) replaces the renowned DAC Magic Plus from the British manufacturer.

CAMBRIDGE AUDIO DACMAGIC 200M: FRONT AND REAR PANEL

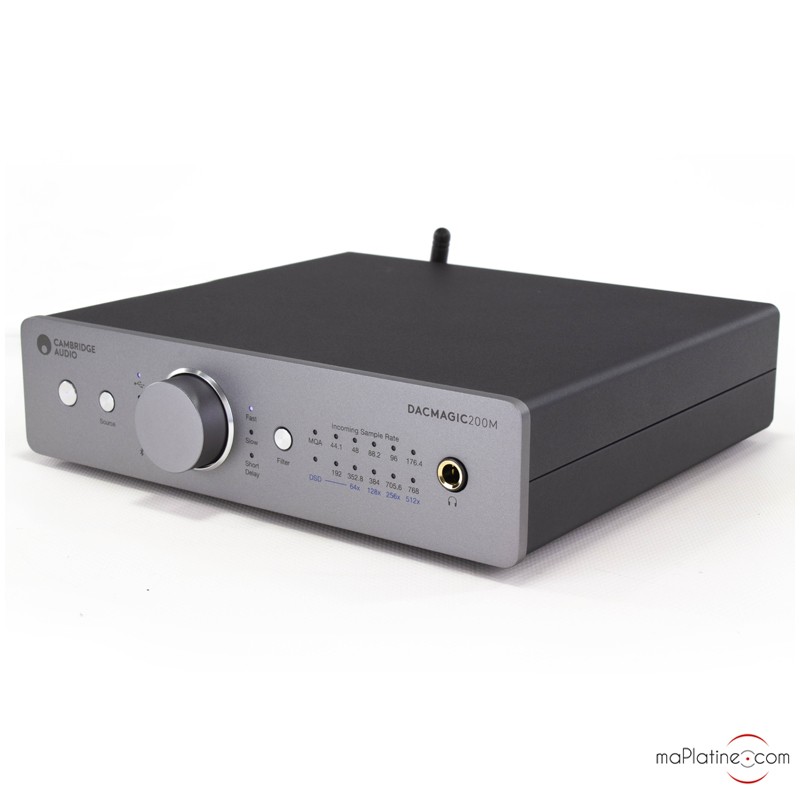

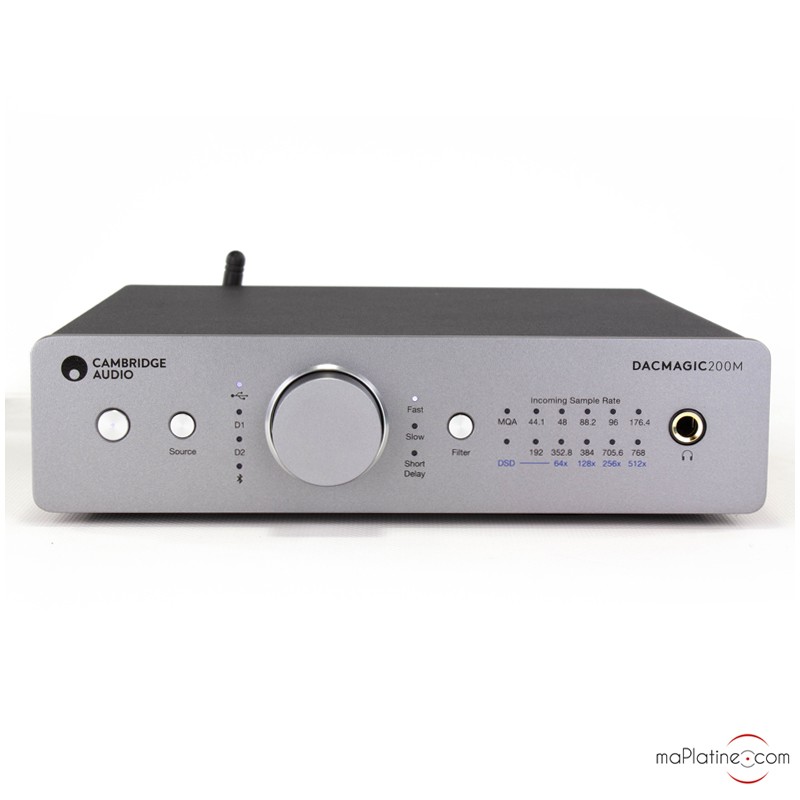

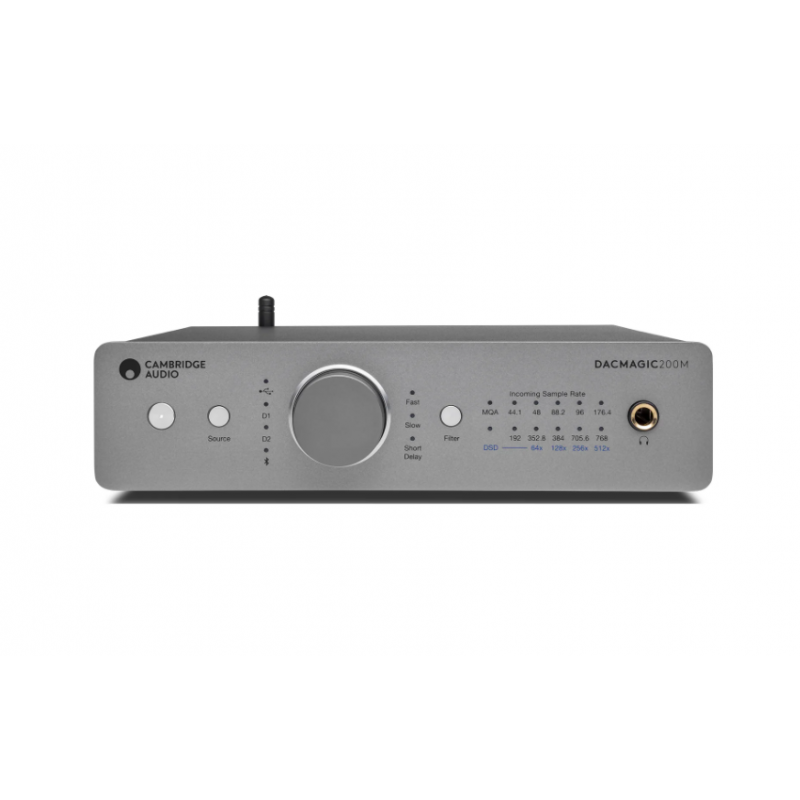

It features the characteristic brushed lunar grey aluminum front panel from Cambridge Audio's new Azur series.

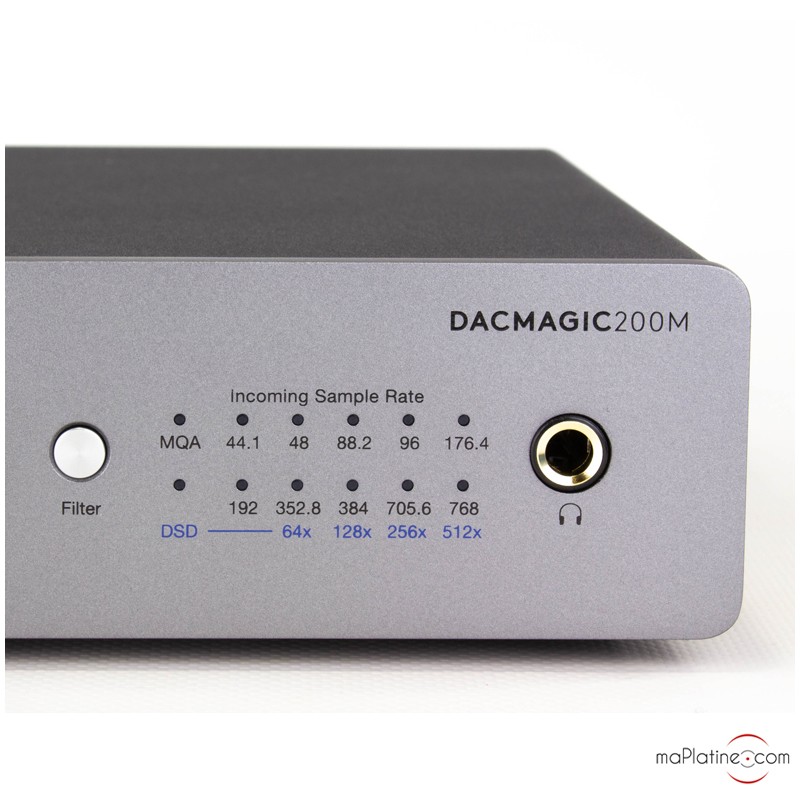

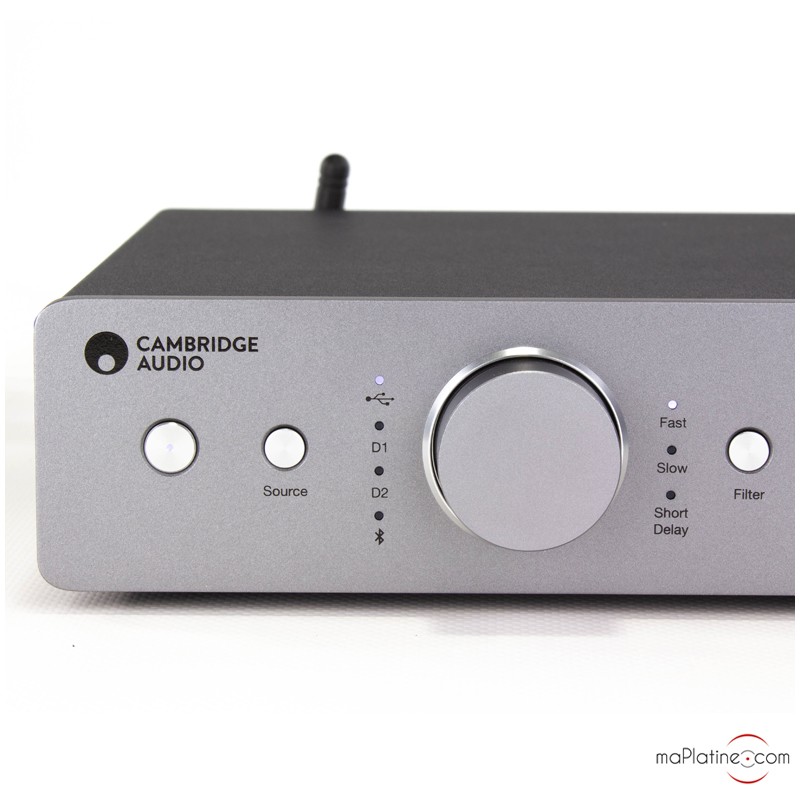

On the front panel, there's a large volume knob that controls the headphone output and a power button. Additionally, there are two selectors: one for input selection and another for digital filters. The headphone output is provided via a 6.35mm stereo jack.

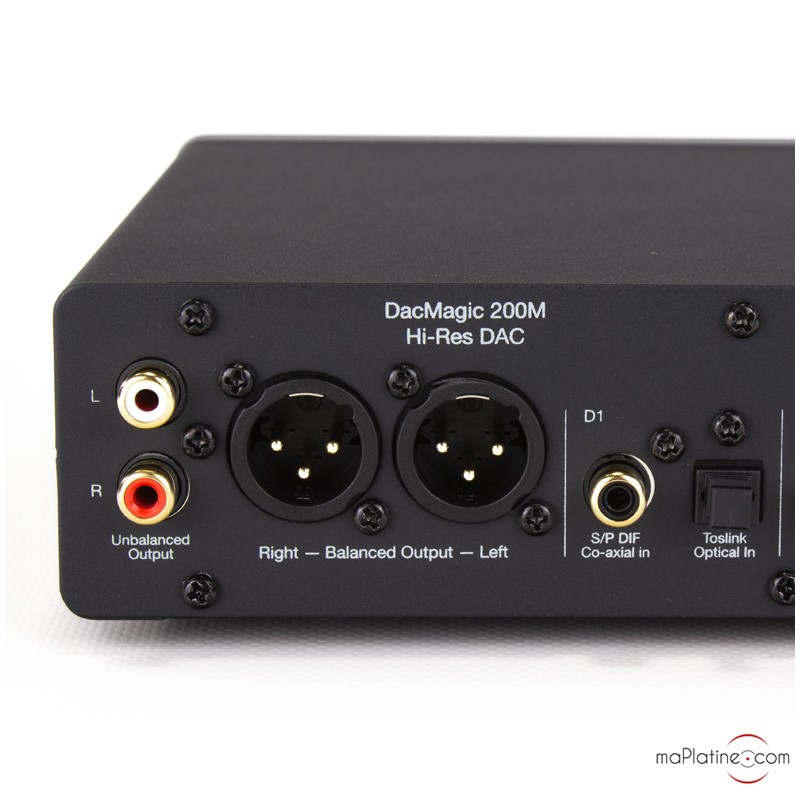

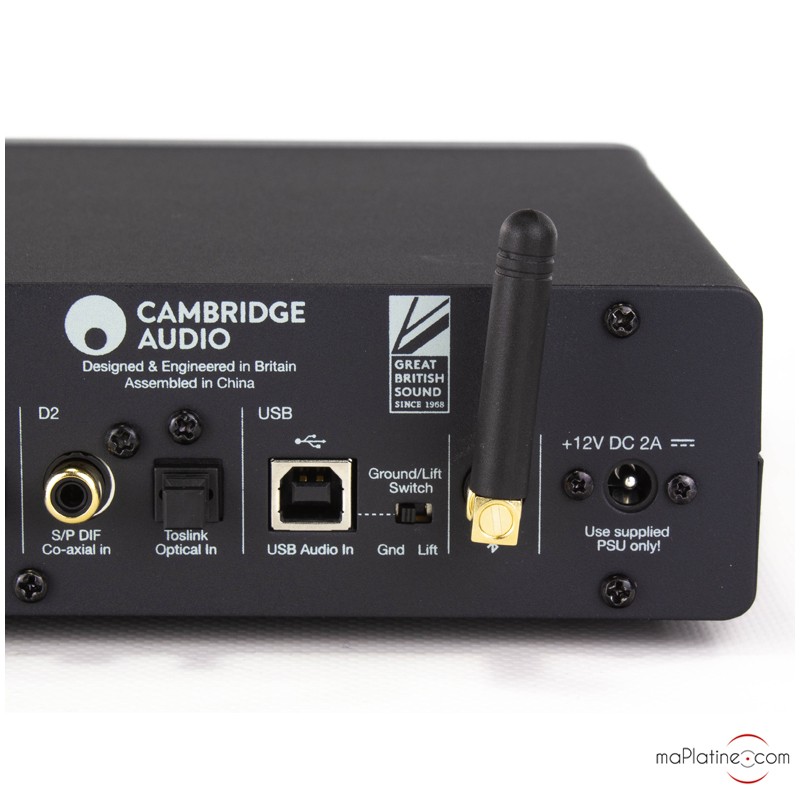

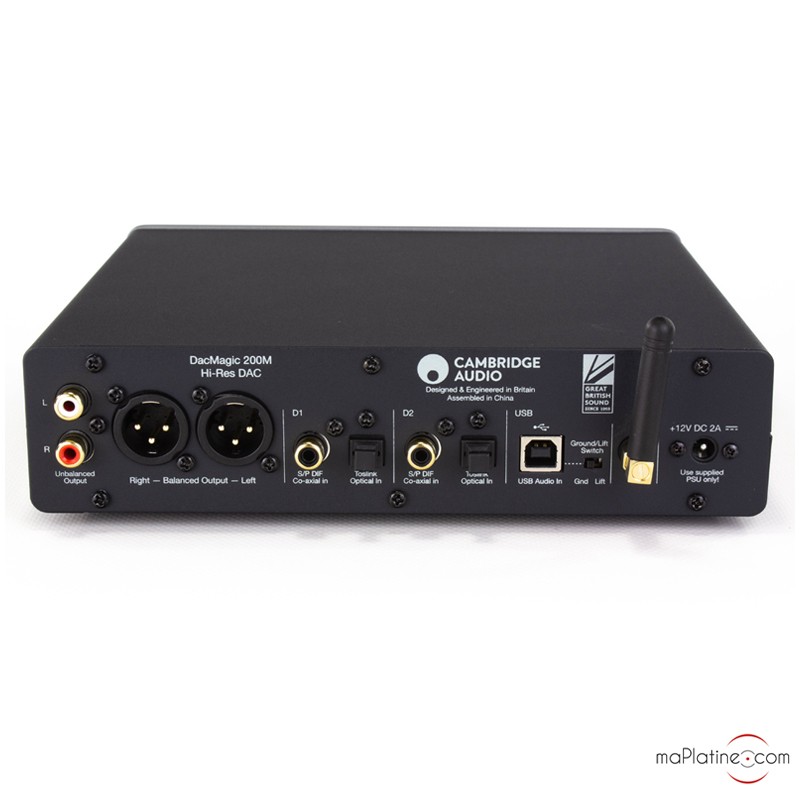

The rear panel offers a wide array of digital inputs and analog outputs. It includes two Toslink optical inputs, two SPDIF coaxial inputs, and a USB input. There's also Bluetooth connectivity (V 5.0, supporting A2DP, SBC, AptX). Analog outputs are available in both RCA (unbalanced) and XLR (balanced).

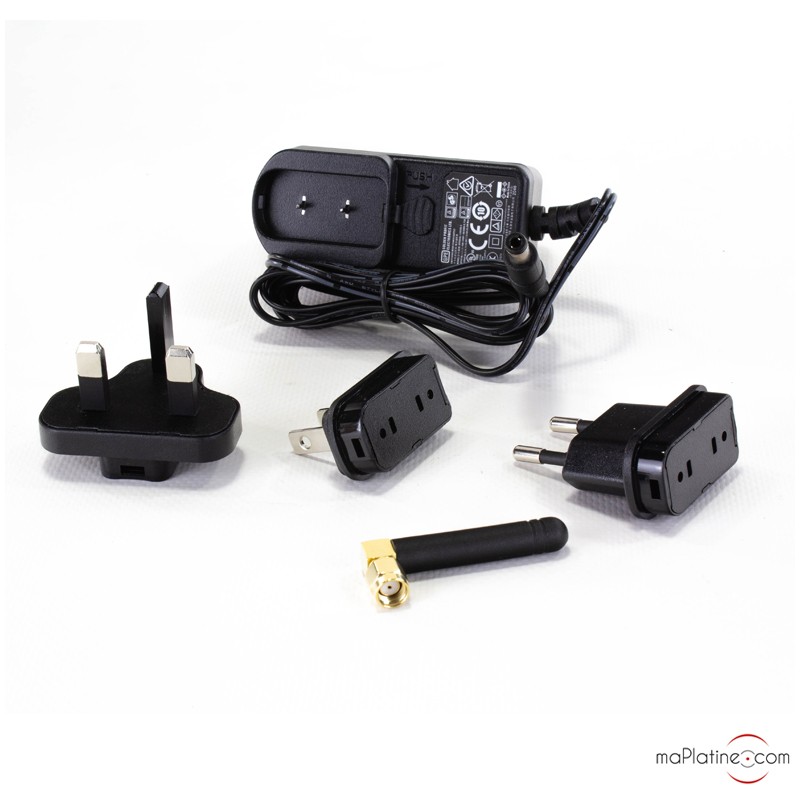

The external power supply delivers a DC voltage of 12V/2A.

CAMBRIDGE AUDIO DACMAGIC 200M: COMPONENTS


Despite its price point, the DAC's construction is excellent. The use of dual ESS Sabre ES9028Q2M DACs ensures high quality, performance, and musicality.

The symmetrical analog stage has also been meticulously crafted (using Wima capacitors, 1% precision resistors, etc.).

CAMBRIDGE AUDIO DACMAGIC 200M: COMPATIBILITY


At the heart of the DacMagic 200M are a pair of high-quality ESS Sabre digital-to-analog converters. They can handle digital audio files up to 32-bit/768 kHz or DSD512, allowing playback from CDs, smartphones, computers, or any other digital media source, regardless of resolution or sampling frequency.

CAMBRIDGE AUDIO DACMAGIC 200M: REVIEW AND LISTENING


Despite its price and compact size, the Cambridge Audio DacMagic 200M impresses with its capabilities and performance.

The sound reproduction is very neutral, and with high-definition formats, it feels akin to being in the presence of the master recording. Detail and transparency exceed expectations for its price range.

The headphone output and Bluetooth connectivity add significant value.

Overall, the Cambridge Audio DacMagic 200M delivers outstanding and musical performance. At its price point, it sets a high standard.

Highly recommended!

AWARD:

EISA Award - Best Product - 2021/2022

Franck

DAC: dual DAC ESS ES9028Q2M

Bluetooth: 16-bit

Optical & Coax: 12-24 bits

USB: 12-32 bits

Filters: fast - slow - short delay

Supported frequencies : PCM 44.1 kHz to 96 kHz, DoP64 (optical) 44.1 kHz to 192 kHz PCM, DoP64 (coaxial) 44.1 kHz to 768 kHz PCM, native DSD 64X to 512X, DoP 64X to 256X (USB)

Bandwidth: 10 Hz to 50 kHz (± 1 dB)

MQA: full decoding

Bluetooth: V 5.0, A2DP, SBC, AptX

Optical inputs: 2 x Toslink

Coaxial inputs: 2 x Spdif

USB input: 1 x USB B

Connected input: 1 x BT AptX

Analog outputs: 2 x RCA and 2 x XLR

Headphone amplifier: 100mW at 32 o115dB S/N

Headphone output: 6.35 stereo jack

Finish: sidereal gray

Weight: 1.2 kg

Dimensions: 52 x 215 x 191 mm

Awards

Awards

EISA

Best Product - 2021/2022
