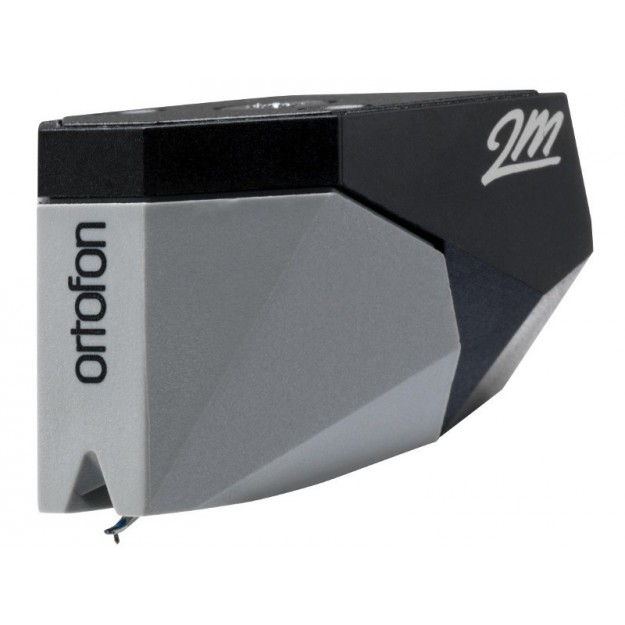

Ortofon 2M 78 RPM cartridge

Mono MM cartridge specifically designed for playing 78 rpm records.

Know more

Manufacturer : ORTOFON

109,00 €

In stock
Shipped within 3 to 5 working days Available within 1 or 2 weeks

+ -

+ Wishlists

  • An attentive team

  • Quality products

  • Secure and fast shipping

  • No overcharged 3x payment from 1000€

Description

In the wake of the success of the 2M range, Ortofon has developed the new 2M 78 range. This cartridge, specifically engineered for 78 rpm records, typically features a monophonic motor and a spherical stylus perfectly suitable for Shellacs. The stylus has a specific profile, giving it an optimum tracking angle for larger grooves on 78 rpm records.

The outputs deliver a monophonic signal which makes it possible to eliminate phono preamps with a similar position. The sound is punchy, with a lot of detail and, above all, it does justice to the original recording. Certainly one of the very best 78 rpm cartridges around. Would recommend!

Franck

Type: MM

Output: Monophonic

Output: 4 mV

Frequency response (-3dB): 20-20000 Hz

Tracking: 70Μm

Compliance: 18 µm/mN

Stylus: spherical

Stylus radius: R65 µm

Tracking force: 1.6-2.0 g

Recommended tracking force: 1.8 g

Internal impedance: 700 ohms

Internal inductance: 300 mH

Minimum recommended load: 47 kOhms

Recommended capacitive load: 150-300 pF

Weight: 7.2 g

Replacement stylus: 2M 78

Banc d'essais - Vumetre 2017

1.6 Mo - pdf
